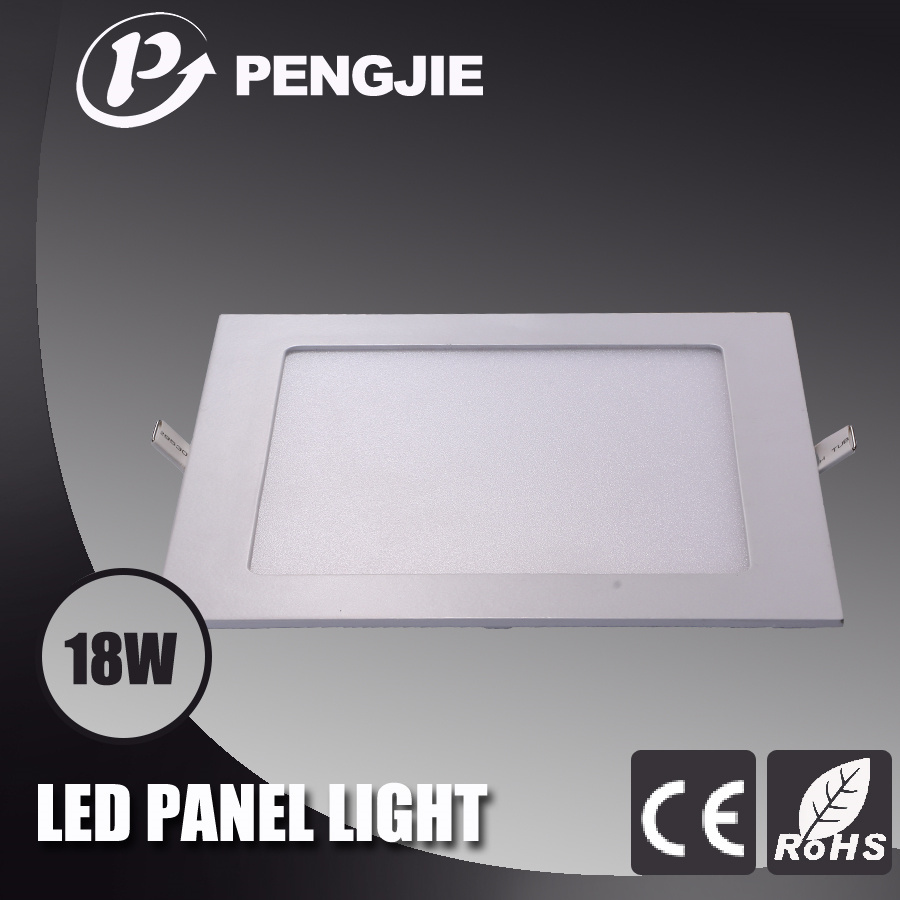

Super Bright 225*225mm LED Ceiling Panel Light
Production introdution
New style embedded panel light,special design to prevent light leak. Make of supperior aluminum, perfect heat dissipation.
Features:
1. Environmental Protection: No pollution, no radiation, no frequency flash, no heat, UV or infrared in the beam; No mercury.
2. Energy Saving: Saving 80% than fluorescent lamps
3. Long lifespan: 50, 000 hours
4. Easy to installation: Suspended Mounted Built-in
5. Customized design is available. OEM&ODM are welcomed.
6. CE%RoHS approval
7. Good after-sale service
18w square led panel light Specification:
Input Voltage: AC85-265V
Power:18W
LEDs: SMD2835
Color; WW: 3000K-3500K
NW:4000K-4500K
CW: 6000K-6500K
Parameter
Item |
Watt | Housing size (mm) |
Opening(mm) |
LED Qty |
| PJ4021 | 3W | 85x85 | 70x70 | SMD2835*15 |
| PJ4023 | 4W
| 105x105 | 90x90 | SMD2835*20 |
| PJ4025 | 6W | 120x120 | 105x105 | SMD2835*30 |
| PJ4027 | 9W | 145x145 | 130x130 | SMD2835*45 |
| PJ4029 | 12W | 174x174 | 160x160 | SMD2835*60 |
| PJ4031 | 15W | 200x200 | 185x185 | SMD2835*75 |
| PJ4033 | 18W | 225x225 | 205x205 | SMD2835*90 |
| PJ4035 | 24W | 300x300 | 280x280 | SMD2835*120 |
| PJ4020 | 3W | Φ85 | Φ70 | SMD2835*15 |
| PJ4022 | 4W
| Φ105 | Φ90 | SMD2835*20 |
| PJ4024 | 6W | Φ120 | Φ105 | SMD2835*30 |
| PJ4026 | 9W | Φ145 | Φ130 | SMD2835*45 |
| PJ4028 | 12W | Φ174 | Φ160 | SMD2835*60 |
| PJ4030 | 15W | Φ200 | Φ185 | SMD2835*75 |
| PJ4032 | 18W | Φ225 | Φ205 | SMD2835*90 |
| PJ4034 | 24W | Φ300 | Φ280 | SMD2835*120 |
Applications:
1. Commercial lighting
2. Office lighting
3. Warehouse lighting
4. Supermarket lighting
5. Hotels lighting
6. Homes lighting
7. Hospitals lighting
8. Classrooms lighting
9. Conference rooms lighting
10. Other indoor lighting places
Advantages:
1)High brightness(Color temperature: 2700-3000K,4000-5000K,5300-7000K)
2)Low electricity consumption, Your electricity bill will be cut down sharply Save 70-80% electric energy than incandescent lamp.
2)Long lifespan over 50000h-100000h.
4)Environment friendly. No UV no infrared radiation, no risk of mercury emission.
5)Vibration resistant Easy to transport and install.
6)It is ideal for replacing incandescent lamp.
