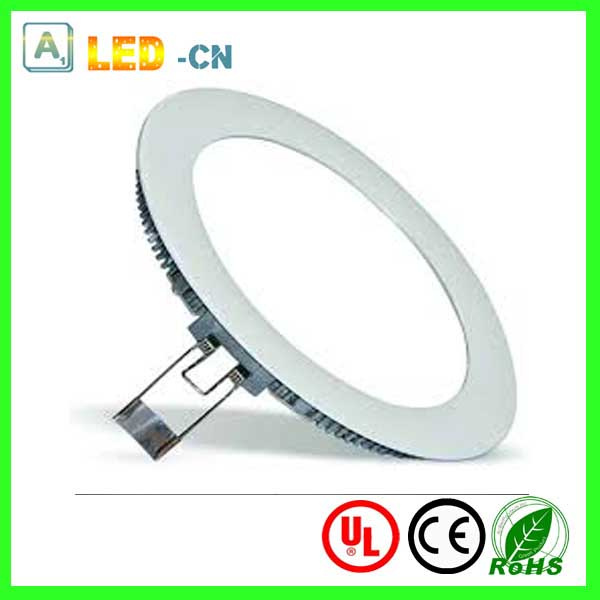

Super Bright 20W 3528 LED Round Panel

Super Bright 20W 3528 LED Round Panel
Price: US $ 19-20/Piece
Trade Terms: FOB,CIF
Min Order: 50/Piece
Pay Type: T/T,Western Union
IP65 Diameter 300mm SMD3528 20W LED round panel


Size: 300× 13mm
Input Voltage: AC100-240V
Current: 530mA± 10mA
Power: 20W
Light source: SMD-3528
LED chips: Epister Highpower
LED Qty: 228PCS
Colour temp: 5500-7000k

Round led panel liights
Super bright 20w 2835 led backlight panels
Diffuse angle: 170degree
CRI: >Ra70
Luminous flux: 1300lm
Illumination(3m): 180lux
Lifetime: 30000 hrs
Working Temp: <50centigrade
Material: Alum+PMMA
IP Rating: IP65

LED round panel lamp advantages:

1. Unique and super-slim designation. The thickest part of the product is only 8.5 mm
2. Wide range of voltage which can be used all over the world. Constant current all through 85 V-264 VAC voltage range ensures protect the lifespan and brightness from voltage fluctuations.
3. Environmental-friendly: No mercury, no pollution. Assembly components can be very easily dismantled and outfit. Other people can recycle them without the help of manufacturers.
4. Safe and reliable. The driver isolates the high voltage and low voltage which ensure safety
5. More than 30000 hour's lifespan can save a lot of maintenance expense
6. No ultraviolet (UV) and infrared (IR) radiation. Human won't grow flecks even under the light long time.
7. High range of color temperature, almost all the color temperatures are available.
8. The light is very soft.

Application place

This LED Panel light is widely used in shopping mall, exclusiue shop, restaurant, 4S shop, factory, hospital and amusemet place.
Size:dia300×13mm
Input Voltage: AC100-240V
Current: 530mA±10mA
Power: 20W
Light source:SMD-3528
LED chips: Epister Highpower
LED Qty:228pcs
Colour temp : 5500-7000k
Diffuse angle: 170degree
CRI:>Ra70
Luminous flux:1300lm
Illumination(3m):180lux
Lifetime: 30000 hrs
Working Temp: <50C
Material: aluminium anodized
IP Rating:IP65
Prod Model: AN-SW
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Light Source: LED
Appearance: Round
Type: Ceiling
Emitting Color: Cool White
Certification: CE
Housing Material: Acrylic
Voltage: 100-240V
Dimmable: With Dimmable
Base Material: Aluminum
Beam Angle: 180
