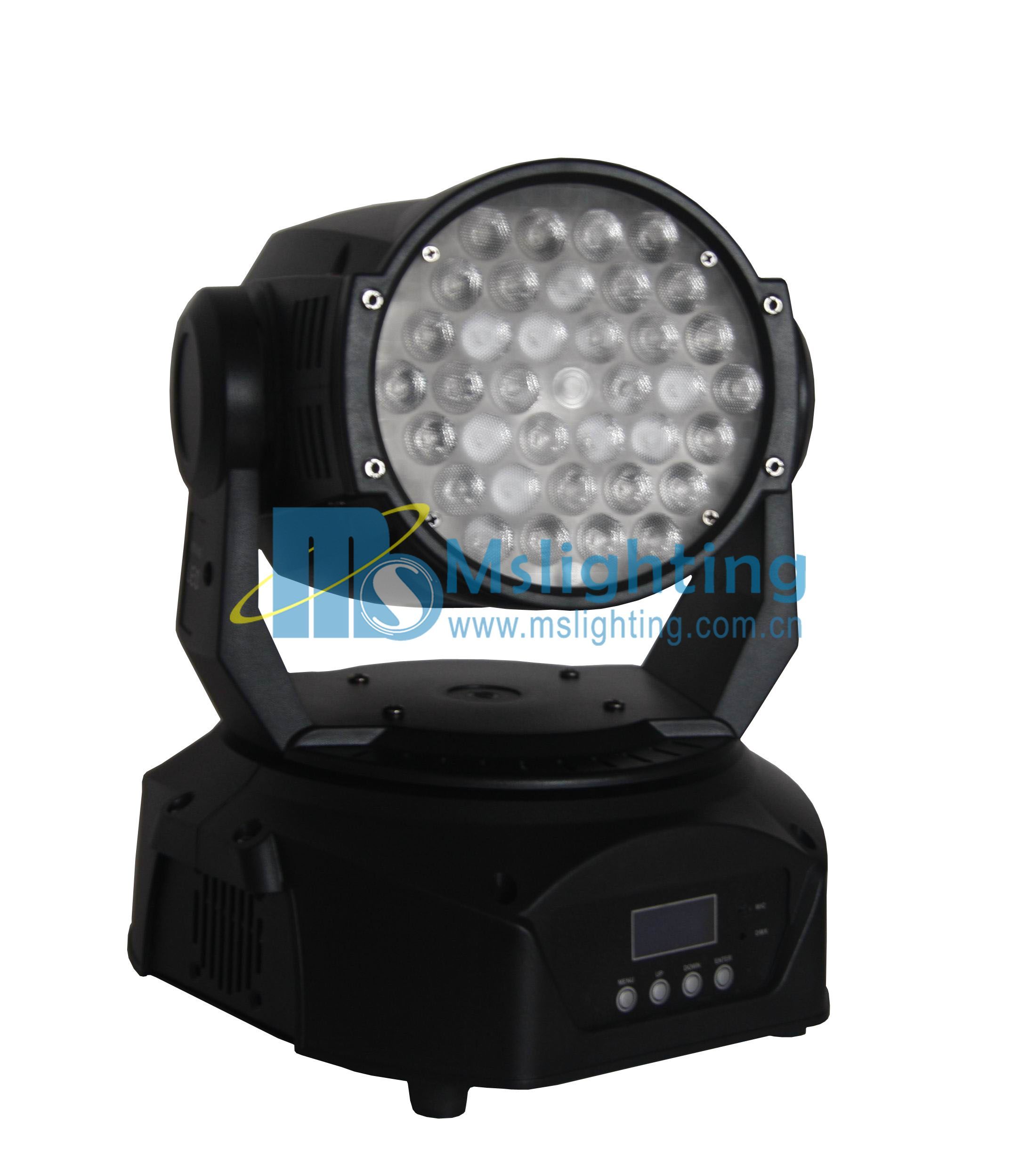

Item No: MH LED 36F/36H
RGB Color: Red, green, blue for the richest possible colors, each color can be controlled on DMX controlling channel, and supplies boundless color combination. Each color has 12 LED.
Angle of light beam: 10degree; , 15degree; , 25degree; Are available for choose.
Service life: 50000 hours
The lowest power consumption
Control signal: 12 Standard DMX controlling channels and any channels combination can be set up.
Independent master/slave control
Movement: Pan 540° , 8 or 16bit resolution
Tilt 300° , 8 or 16bit resolution
Automatic Pan and Tilt repositioning by photoelectric repositioning system if accidentally knocked out of place
Strobe: 1-20 flash per second
All of the three colors can be shuttered regularly.
Display: LED display
Adopt high strength project plastic DOS shell, legerity and beautiful, digital display.
Inside program: The 8 inside program can be activated by the DMX controller
Power supply: AC100V-120V, 200V-250V, 50/60Hz
Power: 80W
Up to CE standard, UL standard and GB 7000.15-2000 standard
DMX 12CH:
CH1: X adjusting
CH2: Y adjusting
CH 3: Strobe/ Reset/ Shutter
CH 4: Dimmer
CH 5: Color
CH 6: RED color change
CH 7: GREEN color change
CH 8: BLUE color change
CH9: RGB Rainbow Effect
CH10: X Fine
CH11: Y Fine
CH12: X/Y speed, Vector
MS Lighting is a professional stage lighting manufactory in China, Our products are LED Light, moving head light(spot/wash, 150W-1200W), DMX scannner, effect lights, disco lights, laser etc.
Our products are very popular by professional from all walks of life; It makes the perfect stage effect with the others stage lighting products. We have excellent quality products and the best after-sales service.
The aim of our work is your satisfaction
This is the good factory that your first choice.
