Home LED Light Products Stage Light Beam 230W Moving Head Beam Light

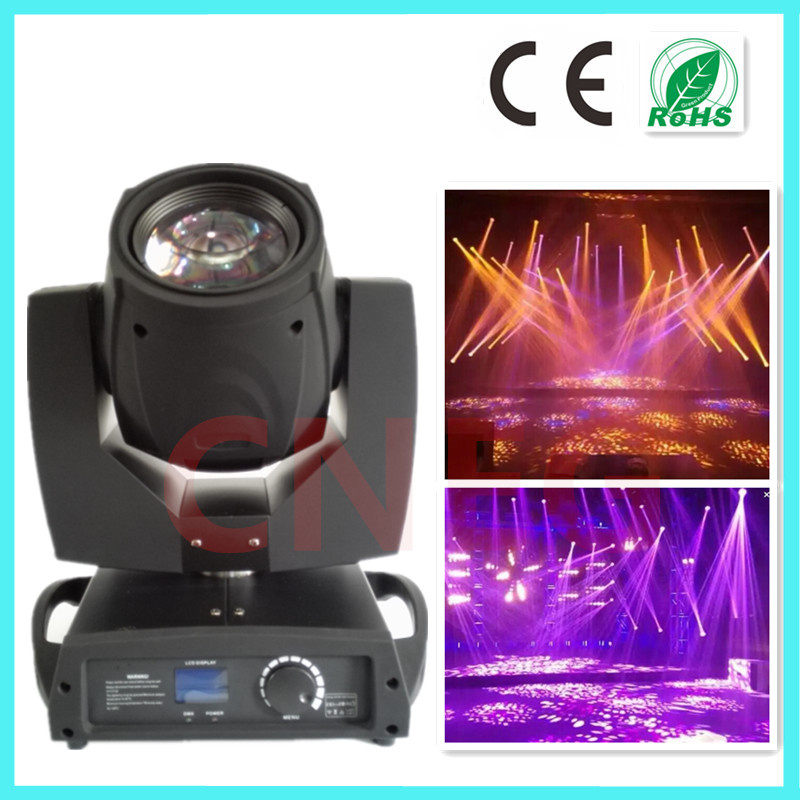

Stage Light Beam 230W Moving Head Beam Light

Stage Light Beam 230W Moving Head Beam Light
Price: US $ 360-378/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 1/Piece
Pay Type: T/T,Western Union
Stage Light Beam 230W Moving Head Beam Light

Features:
1. Yodn MSD230W R7/ Osram 230W Lamp
2.  High brightness, Fast moving speed, Pefect low noise
3.  8 or 16 or 24 facet rotation prism optional
4.  2 years warranty

Model Number:  ZY-B230
Lamp Source
2 type for option:Yodn MSD230W R7 /Osram 230W Lamp
Color temperature: 8,500K
Acerage Life: 2,000Hrs
Electrical
Input Voltage: AC90-240V 50/60HZ
Power Consumption: 280W
Control
Display:LCD display, can be turned 180°&record the using time
Control Protocol: DMX512,automatic and master/slave mode
Channel: 16/20CH
Optical System
YL(YiLong) 3in1 optical group combination
Dimming: 0-100% linear adjustment
Strobe: heat-proof plastic+module pressing alloy materials
Focus: ELectronic
Prism: 8 or 16 or 24 facet prism optional
Frost filter
Beam angle: 0-3.8 degree
Movement
Pan:540°
TilL:270°
Pan/Tilt Resolution: 16bit
Gobos&Colors
Gobos: 1 gobos wheel with 17 fixed gobos+open
Colors: 1 color wheel with 14 fixed colors+open
Physical
Housing: Flame-retardant plastic
Housing Color: Black or White selectable
Fixture Connection: 3-Pin DMX in&out, power in
Cooling: Quiet cooling fan and aluminum radiator
Certificate&Satety
Certificate: CE
Working environment: Indoor
Operation temp:-20~40ºC

Packing
Accessories: Standard power cable, signal cable and omega
                    Optional safety cable and clamps
Product Size: 335*305*475mm
Carton Size: 410*440*540mm
Dula case:850*480*710mm
N.W.:17.00KGs
G W.:19.5KGs
Carton box or flight case package

Trade terms
MOQ1 pcs
Price termFOB  /  EXW / CIF
Payment terms T/T  ,   Western union ,  Cash
PackageCarton box  /  Flight case
Delivery timeFor sample order: about 3 - 5days after payment
For big order : about 5-15days after payment
ShippingBy air ,  By sea ; By express : DHL / UPS / Fedex/EMS
OEMWe accept OEM order
WarrantyTwo years
After sells service
If there is the problem with the product, firstly you need send the picture or the video to us, then let us make sure what's problem about the product, we will try our best to help you .if the problem can use the part to solve ,we will offer you the replacement for free Within 1 year.



Prod Model: ZY-B230
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Lamp: 230W Osram Lamp
Power Consumption: 280W
Lens: (Yilong) 3 in 1optical Group Combinaton
Dimming: 0-100% Linearadjustment
Prism: 8/16 Rotating Facet Prism Optional
Beam Angle: 0-3.8 Degree
Gobos: 1 Gobos Wheel with 17 Fixed Gobos + Open
Operation Temp: -2 Degree to 40 Degree
N/W: 17
Package: Carton Box or Flight Case
Strobe: Adjustable Speed Strobe
IP Rating: IP20
Certification: CE
Light Source: Project Lamp
Material: Plastic + Steel
Emitting Color: 14 Colors + Open
Control Channel: 16/20CH
Control Mode: DMX512, Automatic and Master/Slave Mode
Voltage: 90-240W
Guangzhou CN Eagle Lighting Co., Ltd. is a high-tech company, which is engaged in R&D, manufacturing and marketing of stage equipments.

The main products include moving head beam, LED stage light, follow spot, LED PAR Lights etc.

We own a professional R&D team, who has about 10 more years experience in stage lighting.

Our sales team can provide best service by engineers and technical staff members' supporting.

Most of our products have passed CE quality management system standard as well.

There are numerous domestic projects we have been undertaken, was praised by all the customers.

Our main products are 200W/230W/280W/330W 5r/7r/10r/15r moving head beam, 19 X 15W bee eye LED moving head, 36/37 X 15W LED moving head, 54 X 3W LED PAR/ non-waterproof LED PAR,

8 X 12W LED moving spider light etc,

Our lighting are suitable for stage event, concert, studio, night club, disco, architectural, karaoke television we currently provide comprehensive service and customer support to over 40 international countries and regions.

We offer high quality products, best after-sales service, fast shipment.

Customer First! We always strive to exceed the customer's expectation. We go thogether to become the leading stage lighting supplier on a global maket.
