Home LED Light Products Stage Effect 10r Beam Moving Head Light

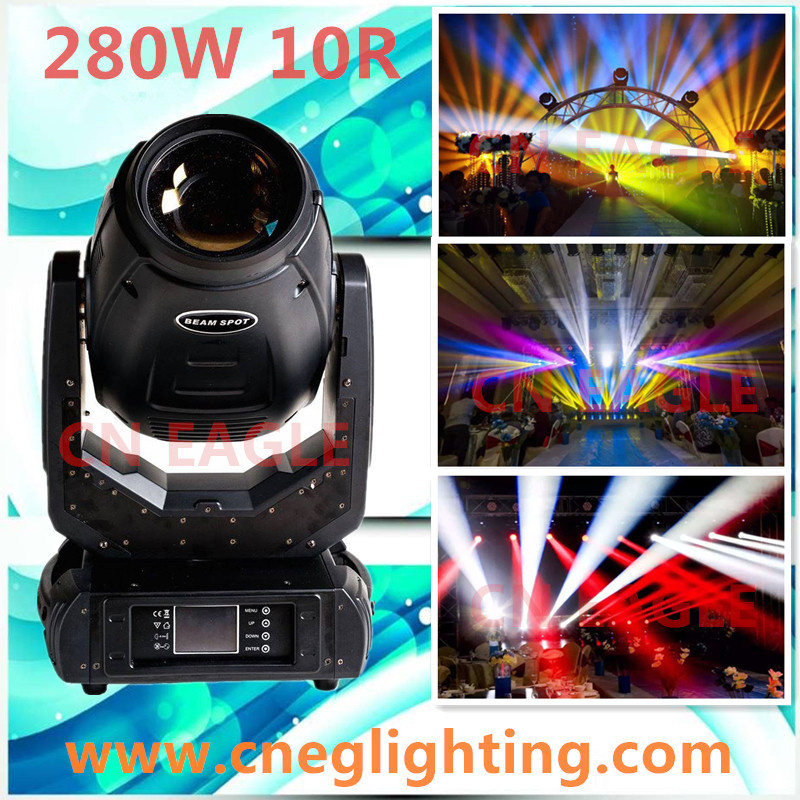

Stage Effect 10r Beam Moving Head Light

Stage Effect 10r Beam Moving Head Light
Price: US $ 620-650/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 1/Piece
Pay Type: T/T,Western Union
10r Beam Moving Head Light

Technical Parametes:

Lamp
Osram 280w lamp
Input voltage range100-240V,50/60HZ
Dimmer Smooth dimmer from 1-100%
Control channels16/24 CHs
Pan 540 °
Tilt270 °
Static Gobo wheel14 gobos+open
Rotating Gobo wheel9 rotating, indexable and replaceable+open
Prism 116/8- facet circular prism rotating in both directions at different speeds
Prism 26- facet linear prism rotating in both directions at different speeds
Frost filterSeparate, variable frost filter
ZoomLinear motorized zoom
StrobeStrobe effect with variablespeed(max. 15 flashes/sec.)
Size364*250*585.5mm
weight15.3KG


Effects & Zoom:
3D gobo effect
3 user editable programs, each up to 100 steps
Beam & Wash & Zoom effect
Zoom range: 2.5 ° -10 ° beam application
Zoom range: 5 °-20 ° spot application

Motorized Linear Zoom: 2.5 °-20 °


Prism & Color Wheel & Gobo Wheels:

Prism (1):  16/8-facet circular prism rotating in both directions at different speeds
Prism(2): 3D prism, with continuous rotation in both directions
Color wheel: 13 dichronic filters + white
Static gobo wheel: 14 gobos + open
Rotating gobo wheel:  9 rotating, indexable and replaceable "SLOT&LOCK" glass gobos +open


Prod Model: ZY-BS280
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power Consumption: 470W
Lens: High Precision Optical Glass Lens
Colors: 13 Color+White
Rotating Gobo Wheel: 9 Gobos+ White
Static Gobo Wheel: 14 Fixed Gobos+White
Prism 1: 8-Facets Circular Rotating Prism
Prism 2: 6-Facets Linear Rotating Prism
Zoom: 2.5° -20°
Net Weight: 19kg
Warranty: 2 Years
Emitting Color: Changeable
Strobe: Adjustable Speed Strobe
IP Rating: IP20
Certification: CE
Light Source: Osram 280W Lamp
Material: Plastic + Steel
Control Channel: 16CH/24CH
Control Mode: DMX512,Automatic and Master/Slave Mode
Voltage: 100-250V
Guangzhou CN Eagle Lighting Co., Ltd. is a high-tech company, which is engaged in R&D, manufacturing and marketing of stage equipments.

The main products include moving head beam, LED stage light, follow spot, LED PAR Lights etc.

We own a professional R&D team, who has about 10 more years experience in stage lighting.

Our sales team can provide best service by engineers and technical staff members' supporting.

Most of our products have passed CE quality management system standard as well.

There are numerous domestic projects we have been undertaken, was praised by all the customers.

Our main products are 200W/230W/280W/330W 5r/7r/10r/15r moving head beam, 19 X 15W bee eye LED moving head, 36/37 X 15W LED moving head, 54 X 3W LED PAR/ non-waterproof LED PAR,

8 X 12W LED moving spider light etc,

Our lighting are suitable for stage event, concert, studio, night club, disco, architectural, karaoke television we currently provide comprehensive service and customer support to over 40 international countries and regions.

We offer high quality products, best after-sales service, fast shipment.

Customer First! We always strive to exceed the customer's expectation. We go thogether to become the leading stage lighting supplier on a global maket.
