Led light manufacturers and factory

Home LED Light Products Stage Background Video Wall LED Display

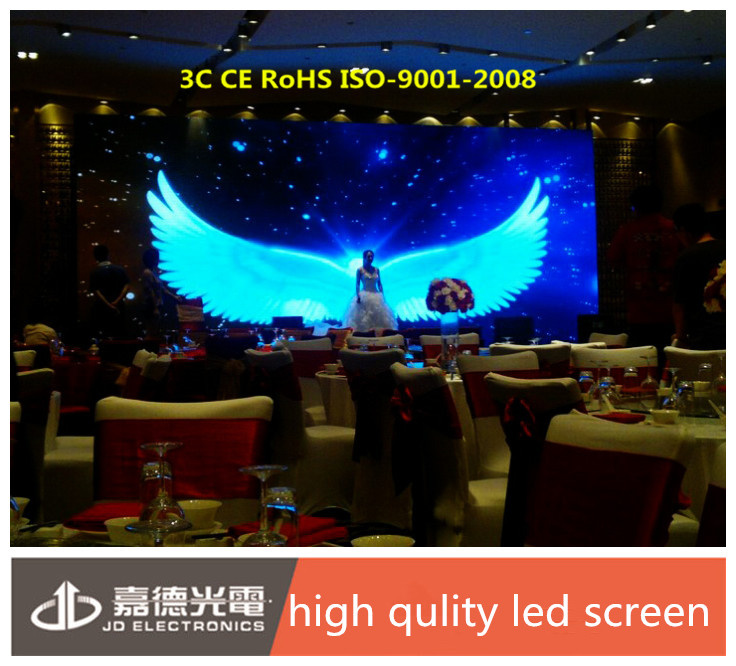

Stage Background Video Wall LED Display

Stage Background Video Wall LED Display
Price: US $ 507/Square Meter
Trade Terms: FOB,CFR,CIF
Min Order: 1/Square Meter
Pay Type: L/C,T/T,Paypal,Money Gram,Western Union
    P5  Full   Color - IndoorPixel Compositionred blue green

Pixel (mm)5
Density(dots/m2)40000
Brightness(Cd/m2)≥1700
Resolution of Module(dots)2048
View AngleH:120°,V:120°
Max Power550W/m2

Control ModeSynchronous/Asynchronous
Why you choose us ?Drive Mode1/16
1.Certifications of CE,CCC,ULand ISO9001Refresh Rate(HZ)≥180
2.Attractive factory price and high qualityWorking Temperature(°C)-25-- +85°C(for working)
3.Professional factory and sales teamWorking Humidity10%-95%RH
4.Efficient and timely communicationModel Size(mm)320x160
5.Company audited by BVCabinet MaterialSteel/Aluminum
6. Good after sales serviceLifespan100,000 hours
7. Two year's warrantyGuarantee2 years


company information

Jiangsu JD Electronics Co., Ltd. was founded in June 2002 of which headquarter is located in Yizheng High-tech Development Zone of Yangzhou.It includes manufacturing center - Jiangsu JD Electronics, marketing center - Yangzhou JD Electronics, R&D center - Nanjing JD Electronics.
JD specialized in LED display and LED lighting. From manufacturing, R&D to engineering installation, we provide one-stop service. At present,annual production of LED display module amounts to 300 thousand and LED lighting module amounts 1 million pieces. We are members of Display Branch of China Photoelectricity Institution and Nanjing Lighting Institution.Our products have obtained silver medal of Chinese Famous Brand Exposition, Jiangsu Province Famous Brand Product and Yangzhou Famous Brand.And our company has passed ISO9001-2008 quality system certificate; products have passed CCC, CE, RoHS, UC certificate.
JD  has won wide trust and good repute due to its stable quality, reasonable price and professional service. In the path of development, we have realized that it is important to regard customer as the center. We will as always carry on the spirit of enterprise- dedication, teamwork, innovation.
Finished product

Usage Considerations of LED Display

1.Switching sequence
   1) screen switching sequence:
     on: first turn on the computer, then screen
     off: first shut off screen, then computer.
   2) Interval of switching LED display must be greater than 1 minute.

2. Ambient temperature
    When ambient temperature is too high or cooling condition is bad, users had better not to turn on the screen for a long time.
   Screen shall be installed in temperature from-10 °C to 40 °C.Over environment temperature range, temperature control equipment must be installed.
   It is forbidden to install LED display near any heat source.

3.Ambient humidity
    When installing screen, ambient relative humidity should be in the range from  30% to 70%.It is prone to get static electricity when the indoor humidity is below 30%;
    when the indoor humidity is higher than 70%, electronic components are easy to get damp.

4.Corrosive gas environment
    Please do not install the display in corrosive gas environment containing acid or base components, such as chemical warehouse.

5. Electromagnetic radiation environment
    Please do not install display when electromagnetic radiation and radio frequency radiation environment is over field strength 5V/m.
    If necessary, isolation treatment should be taken.

6.Steady power supply
    If necessary, users have to install surge switches in the distribution box and ground fault protection to avoid lightning strikes.
    Do not use the display in strong lightning and other severe weather.

7. Conductive material is strictly prohibited to contact display, such as metal dust and water.
    Screens are placed in the environment of low dust as far as possible, otherwise it will affect the display effects, as well as damage the circuit.
    If exposed to water for various reasons, please immediately power down until the screen unit dry.

8.Controlling colors
    Do not display a long time in a white, red, green, blue or other bright screen, because this will affect the display lifetime.

9.Controlling time
    LED display at least rest 2 hours a day. Normally turn on the screen at least twice a week or more (Especially in the rainy season it is necessary to turn on the display every day).
    And it maintains more than 2 hours every time.

10.Regular overhaul
    LED display requires regular inspection to check circuit damage. If it does not work, change it in time. If  circuit damages, it should be repaired or replaced.

11.Security alerts
    Users must ensure safety while installing Led display.  The factory only offers products and reference programs of frame fixation.
    Users can ask relevant authorities to confirm according to local conditions and field conditions.


Our service
1) Don't understand the LED products very well? It doesn't matter! We will help you choose the goods according to your request.
     You just need to tell us the viewing distance,usage(indoor,outdoor or semi-outdoor),screen dimesion,color etc.We will give you  the best program.
2) Don't know how to set up the screen? Never mind! Our technicists will help you solve the problem.Also you can choose our full screen or cabinet.
3) Any problem after sale can contact our after-sales Technical Support  to get solution.
Prod Model: ID-P5RGB
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Module Size: 320*160mm
LED Package: SMD3528
Brightness: 3500CD/Sqm
Lifetime: 100000hours
Warranty: 2 Years
Resolution Of Module: 2048dots
Maimum: 500qw/Sqm
Tube Chip Color: Full Color
Display Function: Video Display
Pixel Pitch: 5mm
Pixel Configuration: 1R,1G,1B
Pixel Density: 40,000 dots / m²
Scanning Mode: 1/16 Scan
System Operating Platform: WIN XP
Display Type: LED Video Display
Application: Shopping Guide
IP Rating: IP60
Certification: BV
Jiangsu JD Electronics is a professional export oriented enterprise, which engages in research and manufacture of LED display and LED Lighting. JD has a net worth of 20 million RMB. There are over 10000 square meters garden-like workshop. The company has passed ISO9001 quality management; Products has passed safety certification like CE, UL, CSA, CCC^etc., JD grows rapidly in ten years because of first-class production equipment, humanized management, innovative product research and timely technical supports.

JD products has LED display and LED lighting. There are strict controls on product manufacturing process. We implement one-stop service system from the beginning of selling to after sales service.

JD has won good repute for stable quality, reasonable price and professional service. Our products are popular among many countries such as USA, Canada, Australia, Russia^etc.

JD has established a research and development product center in Nanjing and multi-level and multi-form industry-university-institute cooperation with Nanjing University of Science and Technology and Yangzhou University. Dr Chen Zhong and Wang Guohua, from Huazhong University of Science and Technology, are technology consultants. Over 100 experienced technical personnel are committed to the LED research, with professional service from marketing professionals.

JD gets a harvest fruit with twelve years of perseverance and professional focus.

In 2009, JD won silver award of the sixth China famous brand exposition.

In 2010, JD won the national high-tech enterprises; JD LED display was awarded as brand-name products in Jiangsu province.

In 2012, JD Taobao flagship store was awarded "the double crown", credit ranking first; JD has an invention patent and 10 utility model patents.

Welcome to JD Electronics!
