Home LED Light Products Stable Performance16mm Outdoor LED Displays

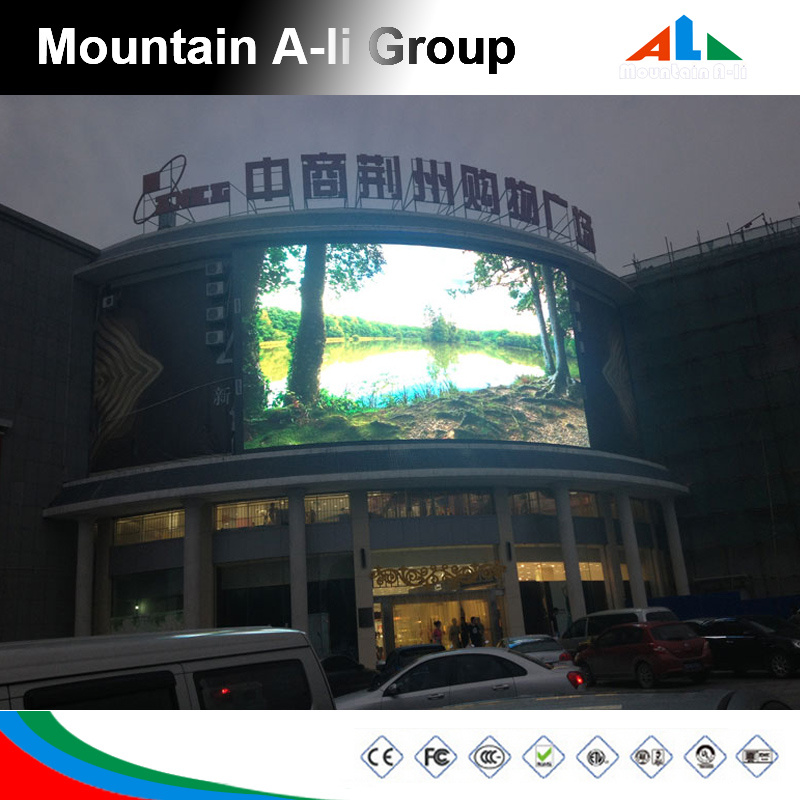

Stable Performance16mm Outdoor LED Displays

Stable Performance16mm Outdoor LED Displays
Price: US $ 500-580/Square Meter
Trade Terms: FOB,CFR,CIF
Min Order: 1/Square Meter
Pay Type: L/C,T/T,Western Union
Stable performance16mm outdoor led displays

Specifications
Pixel pitch 16mm LED screen
Waterproof for outdoor use
2 years warranty
Available model:
For indoor use: P3/P4/P5/P6/P7.62/P10 ( SMD 3 in 1)
For outdoor use: P10/P12/P16/P20/P25 (DIP)

Low energy consumption, long lifespan, stable performance
Appearance can be customized, flexible, with a strong visual impact
Easy installation, easy maintainance, easy using
Quick and easy assembly, removing System, save loading time

Using Range
Widely used in large venue, stadiums, bank, government,
Terminal, dock, station, stock market, medical systems,
Electricity, exhibition etc.
ItemsOutdoor use LED screen
ModelP10P12P16P20P25
ModulePixel Pitch10mm12mm16mm20mm25mm
Pixel Density (dots/sq.m)100006944390625001600
LED encapsulationDIP346DIP346DIP346 /546DIP346 /546DIP546
LED TypeDIPDIPDIPDIPDIP
Module Size(mm)160x160192X192256x256320x160 320x320200x200
Module Resolution (dots)16x1616x1616x1616x8 16x168x8
Pixel configuration1R1G1B1R1G1B1R1G1B1R1G1B     2R1G1B2R1G1B
Main technical parameterOptimum Viewing distance>8m>10m>15m>18m>22m
Brightness (nit)>7500>7000>6500>6500>5000
Working temp. (°C)-20~+60-20~+60-20~+60-20~+60-20~+60
Ave.Power consumption (w/sq.m)300300350300200W
View angle160°/ 120°160°/ 120°160°/ 120°160°/ 120°160°/ 120°
Refresh rates>1200Hz>2000Hz>3000Hz>3000Hz>3000Hz
Life span100000 hours100000 hours100000 hours100000 hours100000 hours

Prod Model: P16 outdoor led display
Markets: South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Module Size: 256X256mm
Brightness: >6500CD/M2
Cabinet Size: 1024X1024mm
Working Voltage: 220VAC
Optimal Viewing Angle: 160°(W) 120°(H)
Control Mode: Synchronization with PC
Cabinet Resolution: 64X64dots
Mtbf: >9000hours
Tube Chip Color: Full Color
IP Rating: IP65
Pixel Pitch: 16mm
Pixel Configuration: 1R, 1G, 1B
Display Function: Video Display
Average Power Consumption: 350W / m²
Scanning Mode: Static Scan
Display Type: LED Video Display
Application: Advertising
Certification: FCC,EMC,IP65
Pixel Density: 3906dots/M2
Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.

Features:

1) With good lightening accordance and no mosaic

2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment

3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced

4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment

5) Uses real pixels rather than virtual pixels, better viewing effect

Applications:

LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
