Home LED Light Products Square Energy Saving LED Ceiling Panel Light

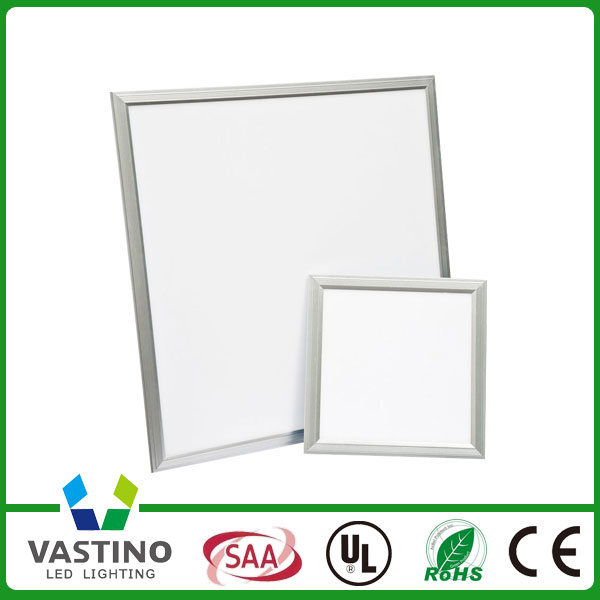

Square Energy Saving LED Ceiling Panel Light

Square Energy Saving LED Ceiling Panel Light
Price: US $ 22.5-30/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,Money Gram,Western Union
square Energy Saving LED ceiling Panel Light


 Product Item:

Power
ColorSizeModel
36WPure white
Natural white
Warm White
600*600mmYSPL-3666D-003
48W600*600mmYSPL-4866D-003
36W300*1200mmYSPL-36312D-003
72W600*1200mmYSPL-72612D-003


Attention:The parameters of this specification are subject to change without prior notice, please consult our sales representative before ordering.
 Product  Introduction:
The panel light is made of high quality SPCC Cold Rolled Plate, Using stamping forming, surface using the powder paint. Cooling area is large, with air convection design, improve heat dissipation performance. Adopt high light transmittance guide plate from Japan mitsubishi,with higher light efficiency; The LED with low light failure, high photosynthetic efficiency SMD4014 encapsulation small power light source, Energy saving significantly, long service life, The appearance of slender article better will import the light guide light. Drived with high precision and high efficacy constant driver, stable performance.

 Features:
 Adopt super brightness smd 4014 light source,12lm/pcs; Luminous Efficacy of Milky white cover can up to 85LM/W;

High energy saving efficiency, 80% of energy saving than incandescent lamp,60% than fluorescent lamp;.

Special encapsulation on led chip,durable and long lifespan 30000hrs;

No IR&UV,no thermal radiation and mercury pollution,green and environmental protection;

As it is cold light source,Led lights will not make the goods color fading;

Used high quality cover,soft light, high light transmittance, to realize Comprehensive lighting effect;

High color rendering index,most intuitive and clear,different Color temperature can be chosed;

Quick start and fast to output full brightness,no stroboflash,no glare;

Solid light source,with high impact and strong shock-proof,easy installation and safety transportation;

Innovative model and humanized design,cater to more customer demand;

 Applications

Led Panel Light is widely used on the plaster ceiling and walls,instead of Grille Lamp.
It can also be used for office lighting,residential lighting,commercial lighting, schools, hospitals, corridor, shops, exhibition halls and some other interior lighting area.

 Product Parameter
 1.Basic Parameter
ModelLed sourceLight colorProduct size(mm)IPNW(Kg)MaterialInstall
YSPL-3666D-003210PCS*SMD4014 Alumninum
White
W595*L595IP403.38 Aluminium +PMMA+PCEmbedded/Suspend/Mounted
YSPL-4866D-003315PCS*SMD4014W595*L5953.39
YSPL-36312D-003210PCS*SMD4014W295*L11954.20
YSPL-72612D-003420PCS*SMD4014W595*L11957.60

2.Electrical Parameter
Model Rated Power(W)Input voltage(V)Efficiency(%)Power factor
YSPL-3666D-00336WAC100-240V    50-60Hz≥87%≥0.9
YSPL-4866D-00348W
YSPL-36312D-00336W
YSPL-72612D-00372W

3.Optical Parameter
ModelCCT(K) luminous flux (lm)   Beam angleCRI
YSPL-3666D-0036000-6500
4000-4500
2800-3200
3000±10%>140>75
YSPL-4866D-0033900±10%
YSPL-36312D-0033000±10%
YSPL-72612D-0036000±10%

 Storage and Operational Environment
Storage Temperature-20ºC~+65ºC
Operation Temperature-20ºC~+45ºC(<25ºC  Working Best )
Ambient thumidity40-90%RH

Life time30,000hours( Light Decay <30%)
Warranty3years

 Packing Info
ModelPacking MaterialCarton size
(mm)
QTY/Carton
(PCS)
N.W(single)Carton weight(KG)
YSPL-3666D-003K=AL675*W675*H952≈3.7≈8.1
YSPL-4866D-003
L675*W675*H952≈3.7≈8.1
YSPL-36312D-003
L1275*W375*H952≈5.0≈11.0
YSPL-72612D-003
L1275*W675*H952≈8.6≈18.5

 Instructions:
1. Before installation, Please read carefully the product specification to make sure the operating environment conforming to the conditions.

2. Turn off the switch before connecting to the power.

3. Lamps and lanterns should be installed by a qualified electrician, wiring connection should conforming to the IEE electrical standards or national standards ;

4. This product is suitable for indoor use ;

5. Please do not make the lamp working under the condition of voltage too high or too low for a long time, which will affect the function of normal use and products' lifespan ;

6. Do not install the lamp inside flammable objects, Keep off the lamp with thermal insulation material at any time.

7. Cut off the power when cleaning, replacing, or installing the lamp  to ensure the personal safety;

8. In case malfunction (such as self-extinguishing or flashing) happenes, please check if the connecting plug and power supply working normal, replace with a new light if there is no problem with the connecting plug and power supply;

9. Cut off the power before cleaning the lamp! Please do not use any chemical agent, it may discoloration or damage the lamps. Use the soft cloth with soapsuds first,  then clean up with dry cloth.

10. Do not take apart the product yourself, to avoid damage any internal components. Take apart any components may void the warranty.

Why choose us?
1, We specialize in panel lights and do it best.
2, We have our own r&d team, can solve all your problems and provide you technology support.
3, We have stock, efficient delivery speed, place the order today, shipping today.
4, We have 15000 SQR Meters Workshop and 500 Workers.
5, We were established in 2003. For 12 years LED Light expierence and quality Warranty.

About Warranty

1, Under the terms of this warranty, if the products have a failure occursunder normal usage within warranty period, VastinoLight will provide free new products based on the proof-documents

2, If Failure or damage due to incorrect operation, wire connection, or anything other do not follow our instruction, VastinoLight will provide paidmaintains within warranty period.

More detailed info for our LED panel light, please do not hesitate to

Inquiry Now!
Contact me at once, Please!
Prod Model: YSPL-003
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Watt: 36/48W
Size: 595X595 mm
Lumen: 80-90lm/W
Cct: 2800k-6500k
LED Chips: SMD 2835,SMD 4014
Power Factor: >0.9
CRI: >70 Ra,>80 Ra
Installation: Embedded/Suspend/Mounted
Warranty: 3 Years Warranty
Lifespan: 50000 Hours
Light Source: LED
Dimmable: Without Dimmable
Appearance: Square
Base Material: Metal
Certification: CCC
Voltage: 85V-265V
Housing Material: Aluminum + PMMA
Emitting Color: Pure White,Natural White,Warm White
Type: Embedded/Suspend/Mounted
Beam Angle: >140 Degree
