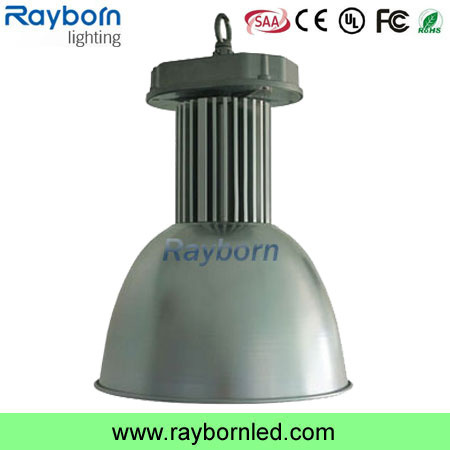

spots halls high bay light/led canopy light 100w
Item No.: | RB-HB-515-100W |
Input Voltage: | AC 100~240V |
Freqency Range: | 50Hz~60Hz |
Led Chip: | Bridgelux 45 mil |
Power Factor: | >0.96 |
Power Efficiency: | >90% |
LED Power | 100W |
LED QTY: | 1pc*100W |
LED Working Voltage: | DC 30~36V |
System Consumption: | 106W |
LED Luminous Flux | Warm White | 9100LM |
Pure White | 10450LM |
Cool White | 10450LM |
Viewing Angle: | 120degree |
Center Illuminance | Height 3M | 343LUX |
Height 4M | 192LUX |
Height 5M | 123LUX |
Illuminance Area | Height 3M | Dia.2.6 M points visible |
Height 4M | Dia.3.4 M points visible |
Height 5M | Dia.4.2 M points visible |
Illuminance Uniformity: | >0.6 |
Color Temperature | Warm White | 3000K~3300K |
Pure White | 5500K~5700K |
Cool White | 6000K~6500K |
Color Rendering Index | Ra>78 |
|
Light Distribution: | LED points visible |
Light Design: | LED+Reflectors secondary light distribution |
LED Junction Temperature: | ≤115ºC |
Working Temperature: | -40ºC~50ºC |
IP Grade: | IP54 |
Working Life-span: | 50000 H |
Power Line: | 1.0 mthree line |
Connect Wire | Brown | L |
Blue | N |
Yellow / Green | G |
Led High bay light Features:
· Integrated USA Bridgelux LED system for optimum lifetime performance
· Ideal for Box Stores, Supermarkets, Factories, Warehouses.
· Special radiator design for better heat dissipation
· Reduced energy consumption and operating costs by up to 80%.
· Maintenance free operation - lasts up to 10 times longer than conventional lighting
· Solid state design and circuitry
· Great for shock and high vibration environments
· 50-80% reduced energy usage. Save money on your utility bill
· No humming or flickering.
· Cool beam - Does not produce Ultra Violet (UV) light or IR, reduces air conditioning loads.
· Unique design with anodized silver housing for cooler operation and extended lamp life.
· Environmentally friendly fully recyclable, no mercury or other hazardous materials.
High Bay LED Light Applications:
LED High Bay Lights widely used for Indoor and outdoor places:
Factories, workshops, warehouse, toll stations, gas stations, stadiums, big supermarket, exhibition, commercial building, stadium hall, parking building etc.
Equipment &Workshop &Transportation:
100W LED Industrial Light Main Technical Parameters |
Item No.: | RB-HB-515-100W |
Input Voltage: | AC 100~240V |
Freqency Range: | 50Hz~60Hz |
Led Chip: | Bridgelux 45 mil |
Power Factor: | >0.96 |
Power Efficiency: | >90% |
LED Power | 100W |
LED QTY: | 1pc*100W |
LED Working Voltage: | DC 30~36V |
System Consumption: | 106W |
LED Luminous Flux | Warm White | 9100LM |
Pure White | 10450LM |
Cool White | 10450LM |
Viewing Angle: | 120degree |
Center Illuminance | Height 3M | 343LUX |
Height 4M | 192LUX |
Height 5M | 123LUX |
Illuminance Area | Height 3M | Dia.2.6 M points visible |
Height 4M | Dia.3.4 M points visible |
Height 5M | Dia.4.2 M points visible |
Illuminance Uniformity: | >0.6 |
Color Temperature | Warm White | 3000K~3300K |
Pure White | 5500K~5700K |
Cool White | 6000K~6500K |
Color Rendering Index | Ra>78 |
|
Light Distribution: | LED points visible |
Light Design: | LED+ |
LED Junction Temperature: | ≤115 |
Working Temperature: | –30~55 |
IP Grade: | IP54 |
Working Life-span: | 50000 H |
Power Line: | 1.0 mthree line |
Connect Wire | Brown | L |
Blue | N |
Yellow / Green | G |
The color of the lamp shell | Black and silver is available |
Certificate | CE /Rohs |
Net Weight: | 7.1kg |
