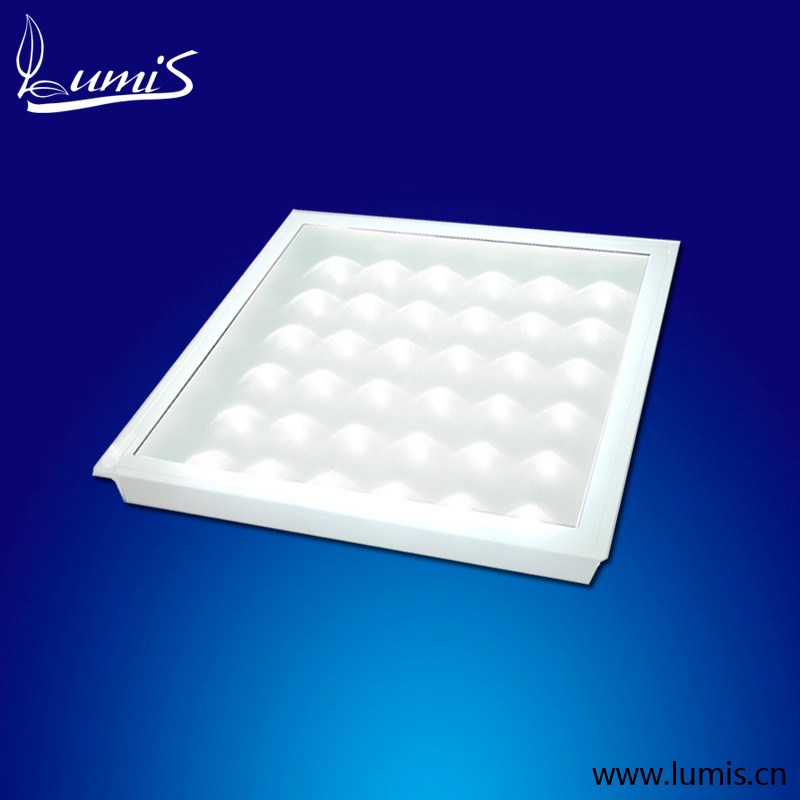

Special Light Looking LED Panel for Office Light

Special Light Looking LED Panel for Office Light
Price: US $ 25/Piece
Trade Terms: FOB,EXW
Min Order: 10/Piece
Pay Type: T/T,Western Union
Description
. Special Light Sharp, like a small mountain. Very special 3D Picture

. High Quality EMC LEDs, make sure the high lm/W and long lifespan

. Standard package size: 600x600x55mm

. High lumens out put, it's suitable to install in office

. Special light body design, more beautiful and stable

. Light even, soft, high light transmittance of PC material

. Operating Temperature: -20° C~+45° C

. Storage temperature: 0° C~+60° C

. LED Life time: Mean time between failure (MTBF): 30000 hours

. PS: Low Ripple, High PF, High Efficiency

2D Light Intensity Distribution Curve

Illumination -Distance Curve



Features and Benefits

. Solid shell

. Easy to install

. Wide voltage input

. SMD 3030 LED

. LED Indoor Lighting

. High Color Quality with CRI Min. 80

. The unique visual effect


Key Application

. Hotels
. Conference/Meeting rooms
. Offices
. Hospitals
. Schools
. And other energy-saving and present high illumination index

Note & Warning

1. Please read the product specification, confirm the using environment is in Listed in.

2. When product plugged into power, please ensure the closure of the switch, prevent to get an electric shock.

3. When luminary light up, do not touch the luminary surface by hand.

4. This product is limited to indoor using.

5. Avoid installation in the heat source and thermal steam, corrosive gas and so on.

6. Product working environment temperature: - 10 º C to 40 º C

7. Open the packing, check the product, if there have any damage on products, please keep packaging and contact to LumiS company.


Published By:

LumiS technology © 2014 All Rights Reserved.

Company Information
LumiS Technology Co., Ltd is located in ShenZhen, China, which is a professional manufacturer of LED products that integrates research, production and sales. LumiS is a team focusing on LEDs, LED Modules and LED luminaries. To serve client better, we also provide other led lamp's accessories. Our experienced R&D team and sales team are young but professional. All of us have been serving customers over 4 years. We are aiming to provide full service on led luminaries solution from LEDs, driver to final production. Our engineers can offer the best solution when you design luminaries from the beginning. To be specific, when you design one luminary, LumiS can provide the LEDs with high quality and best price based on our professional knowledge. "Save Your Time, Improve Your Products".

Legal Disclaimer
Information in this document is provided in connection with LumiS technology products. With respect to any examples or hints given herein, LumiS hereby disclaims any and all warranties and liabilities of any kind, including without limitation, warranties of non-infringement of the product can be changed to improve the quality and/or performance without notice.


Product Parameter Table
Product 36W Direct Light Panel Type LDP36-N8TAA
Type Item Parameter
Basic Parameter LED Type and Qty SMD3030*36pcs
Input Voltage AC90-265V,50/60HZ
Main Material Iron/PC
Appearance Transparent/Milk
Install Hole Size 600*600mm
IP Code IP20
Electric Parameter Color Temperature Cool, Neutral, Warm
Total Power 36W
Total flux(LM) >3200
 Power efficiency >0.9
Power factor >0.91
CRI >80
Irradiation area  10m2-15m2
The Other Parameter Beam  Angle(°) 160
Efficacy(lm/w) >90
luminary  efficiency >0.85
Insulation class I
Installation Normal
Product size 600*600*55mm
Product Weight 4.5Kg
Operating Environment -35°C_55°C
Lifespan 30000H


Prod Model: LDP36-N8TBA
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cover: 3D Transparent
Size: 600*600*55mm
Lumen: 35000-3600lm
Power: 36W
CRI: 80
Light Source: LED
Appearance: Square
Type: Ceiling
Emitting Color: White
Certification: RoHS
Base Material: Metal
Voltage: 85V-265V
Dimmable: Without Dimmable
Housing Material: Metal
Beam Angle: 125
