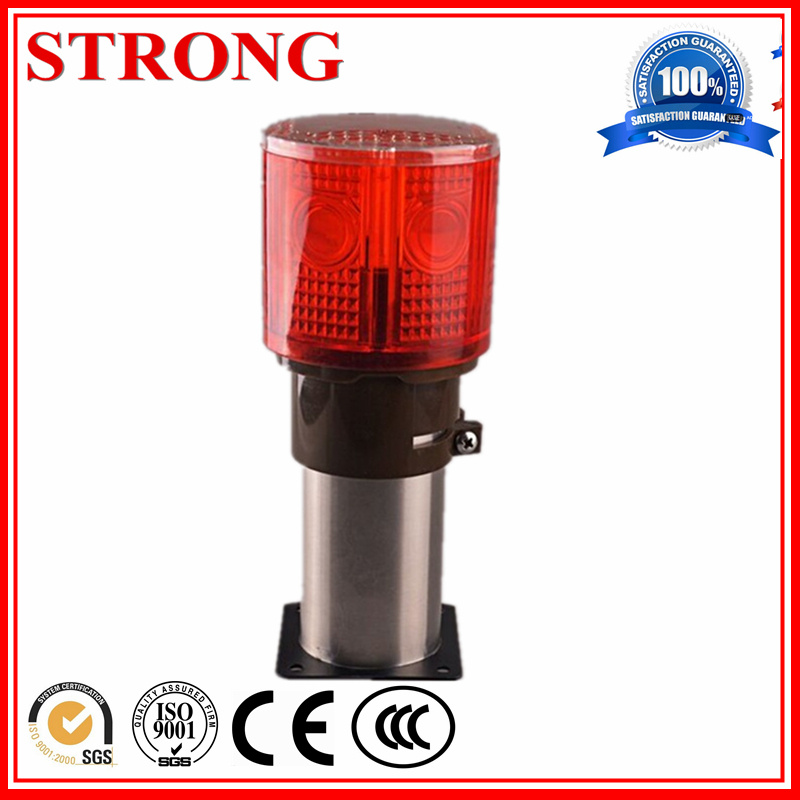

Solar LED Warning Light

1.Specifications

led aviation obstruction light
led aircraft warning light for telecom tower
led obstacle marking
led light source

 2.Feature
cold light source with high brightness light emitting diode light source multi-board stack into light emitting device body;
light deveice using single-chip microprocessor control circut, the circut using high-quality electronic components.
the core parts imported components can gurantee for quality and device life of lamps.
Shade  using circular focus Fresnel lens principle, the base for  the die-casting aluminum alloy from the lights,red,green,blue,yellow,white light source for a varity of colors to choose


With standard communications interfaces for buildings in different locations to create various combinations in order to achieve synchronization of work. As a result of the light-energy long-life  LED light source and the combination of single-chip computer, so the energy-saving lamp features a reliable, efficient, safe,long-life characteristics,is the latest generation of energy-saving aids to navigation lights mark with a model.

     TGZ- LED Series intelligent solar obstruction lights, mainly suitable for high-rise buildings, Power Tower, radio and television and microwave tower tall chimneys, bridge pylons and exploration well sites, ship navigation ,aircraft runways, lack of power and required the venue to mark the Flash of the explosion-proof.
  This product is mainly composed of 90mm,70mm,122mm,plastic lens,flasher, cast alumium battery box and base panels, maintenance-free batteries ,solar physics, and so on.


3.Detail Description


      Aircraft warning lights ( aviation obstruction lights), are lighting devices that are installed to high structures and are used as collision avoidance measures
      Aircraft warning lights are designed and manufactured to warn aircrafts ( airplanes ), helicopters ( choppers ) for high altitude locations and structures. It is designed to be installed on tall towers, on the top of the high buildings, monopole masts, flag poles and all warning related applications.
      Aircraft warning light operates by the control of microprocessor and photocell. Microprocessor automatically turns the aircraft warning light on when photocell detects dark.
     Microprocessor turns the aircraft warning light off when the photocell detects light. Aviation obstruction light (AOL) is manufactured by the help of the latest technology LEDs which have long life-span ( 100.000 hours) and low energy consumption.
     Wetra aviation obstruction light has 5 years factory warranty. Wetra aviation obstruction lights operate at 50 Hz, and the operating temperature range is -40 ° C / +55 ° C. The visibility distance of flashing aviation obstruction light is up to 10 km in the dark weather condition.

nternational standard	ICAO(Annex 14) low intensity aviation light and FAA-L810
Light source	LED	Vertical degree		≥10°
Light color	red	Horizontal degree		360°
Intensity:	>32.5cd	Flashing rate		20 or 30 or 40times/min(adjustable) Default rate:30times/min
Led life	≥100.000h	On/off lever		70/100Lux
Battery capacity	3.6V/8AH NiMH	Solar panel		4W/5V
Autonomy	7 days(at 25°C, if the temperature is lower than 0°C or above 40°C, it will affect the battery discharge)
Operating temperature	-40°C~+55°C		IP protection		IP65
Relative humidity	10%~95%		Weight		5Kg
Material	Base: Die casting aluminum   Housing: PC
