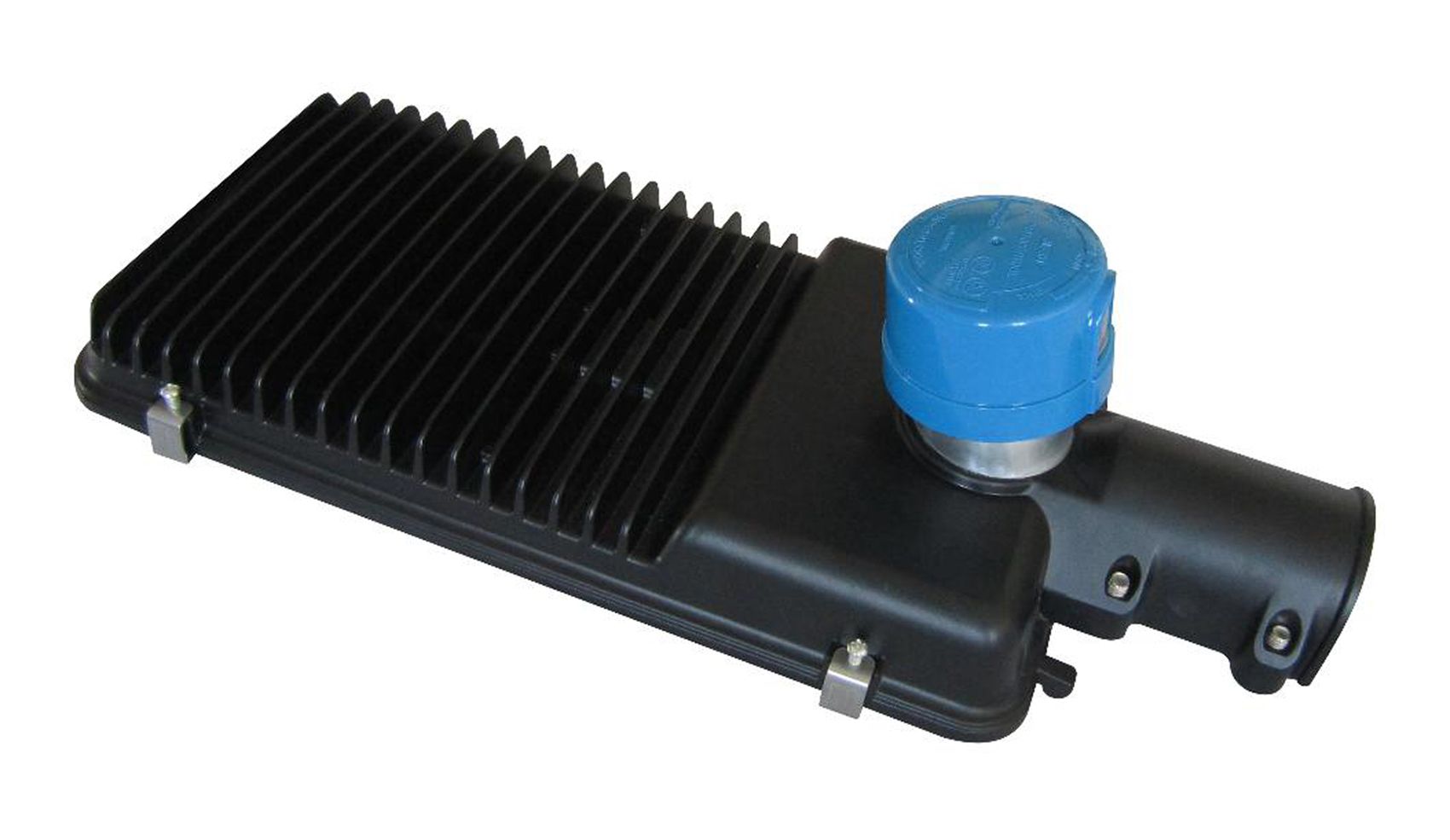

Solar & LED Street Light ( YL-ST24/30/36/40)
Specification of our Solar & LED Street Light YL-ST series:
12V/24V DC or 85~265V AC all available to match with solar system or regular electricity.
Our YL-ST24 version, uses 24 pcs 1W high power LED, which is 110 lumen per LED and the initial lumen for the LEDs can reach 2640 lumen output; (can be selected with US-Bridgelux or CREE LED chips inside)
Our YL-ST30 version, uses 30 pcs 1W high power LED, which is 110 lumen per LED and the initial lumen for the LEDs can reach 3300 lumen output; (can be selected with US-Bridgelux or CREE LED chips inside)
Our YL-ST36 version, uses 36 pcs 1W high power LED, which is 110 lumen per LED and the initial lumen for the LEDs can reach 3960 lumen output; (can be selected with US-Bridgelux or CREE LED chips inside)
Our YL-ST40 version, uses 40 pcs 1W high power LED, which is 110 lumen per LED and the initial lumen for the LEDs can reach 4400 lumen output; (can be selected with US-Bridgelux or CREE LED chips inside)
The color of the LED street light lamp case, we can offer three color options: A. White B. Silver/Grey C. Black
Solar & LED Street Light YL-ST series have some advantages, as following:
1. No empoison for environment
2. High efficiency
3. Energy saving
Applicability scope:
Our YL-ST series LED street lights can be used for city roads, habitation areas, industrial areas,
Pedestrain crossing, squares, gardens, schools, villas, yards, etc.
Product Code |
YL-ST24 |
YL-ST30 |
YL-ST36 |
YL-ST40 |
LED Qty |
24PCS |
30PCS |
36PCS |
40PCS |
Total Power Consumption |
28~30W |
35~36W |
42W |
47~48W |
Input Voltage |
AC85~265V or
12V/24V DC |
AC85~265V or
12V/24V DC |
AC85~265V or
12V/24V DC |
AC85~265V or
12V/24V DC |
Frequency Range |
50~60Hz |
50~60Hz |
50~60Hz |
50~60Hz |
Power Factor |
>0.9 |
>0.9 |
>0.9 |
>0.9 |
LED Color |
WW/NW/CW |
WW/NW/CW |
WW/NW/CW |
WW/NW/CW |
CRI |
>70 |
>70 |
>70 |
>70 |
LED Initial Flux(Lumen) |
2640 |
3300 |
3960 |
4400 |
Lamp Efficiency |
>80Lm/W |
>80Lm/W |
>80Lm/W |
>80Lm/W |
Working Ambient Temperature |
-25ºC~50ºC |
-25ºC~50ºC |
-25ºC~50ºC |
-25ºC~50ºC |
Working Ambient Humidity |
10%~90% |
10%~90% |
10%~90% |
10%~90% |
Life Span |
>30,000Hrs |
>30,000Hrs |
>30,000Hrs |
>30,000Hrs |
G.W.(Kgs) |
4.8~5.5 |
4.8~5.5 |
4.8~5.5 |
4.8~5.5 |
