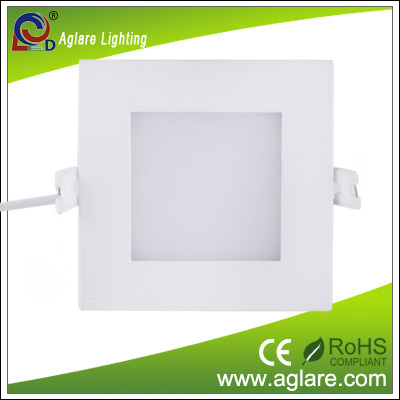

YJ-PA109X109-5730W12
Features:
ø Output power: : 6W
ø LED type: SMD5730
ø LED quantity: 12PCS
ø Luminous intensity: 348LM
ø Beam angle: 120°
ø Maximum size: L*W=109*109MM
ø Net weight: 270g
ø Housing material: Aluminum alloy+PC
ø Lifespan: >30000H
Applications:
This products widely used in market place, hotel, showroom, museum and indoor lighting place.
The advantage of LED light:
1. No UV-IR radiation. Green products, no harm to human beings.
2. No heavy metal material (such as mercury, cadmium), friendly to the environment.
3. Good heat output, 90% high efficiency.
4. High luminous efficiency, 30, 000 hours long lifespan.
5. Solid light source. Easy for transportation.
6. Low voltage and constant current operation, safe for installation and operation, No strobe and glare light, reduce visual tiredness.
Installation Notes:
1. Cut off the power supply before installation.
2. Take related electric shock protection during installation.
3. Installation should be made under above mentioned right guidance.
4. Avoid child touch.
5. Contact supplier timely if you installed products under right guidance, but lamp can't be lit up nor has stroboscopic phenomenon.
Cautions:
1. Suitable for indoor application. Do not use this product on outdoor or humid environment.
2. -20 to 40 ° C operation temperature. -30 to 60 ° C storage temperature. Use and store lamps under related temperature.
3. Clean the lamp surface regularly with dry cloth If the environment has dust pollution.
4. Contact supplier within warranty period if there are any failure problems. Do not disassemble product without permission. Otherwise no warranty.
After-sales Service:
All products are guaranteed to use in one year. Under the right and normal using condition, quality warranty is based on correct conservation, assemblage, and maintenance. As incorrect usage, and disobeying product operation, it's not guaranteed. To the problem within promised time, "Aglare" will solve it by repair, substitute accessories or replacement for your option. Upon exceeding the promised time, there will be material and maintenance fees to be paid by customer.
Colors :
YJ-PA109X109-5730R12
|
R
|
|
wavelength : 620-635nm
|
YJ-PA109X109-5730G12
|
G
|
|
wavelength : 515-530nm
|
YJ-PA109X109-5730B12
|
B
|
|
wavelength : 460-475nm
|
YJ-PA109X109-5730Y12
|
Y
|
|
wavelength : 585-595nm
|
YJ-PA109X109-5730WW12
|
WW
|
|
Color Temperature : 3000-3500k
|
YJ-PA109X109-5730W12
|
W
|
|
Color Temperature : 6000-6500k
|
|
