*3.91mm & 6.25mm pixel pitch available
*Rear service and front service optional, especially good for compact shopping malls
*Slim, light weight, suitable for both rental and fixed installation
* wonder color and video quality
Product Description

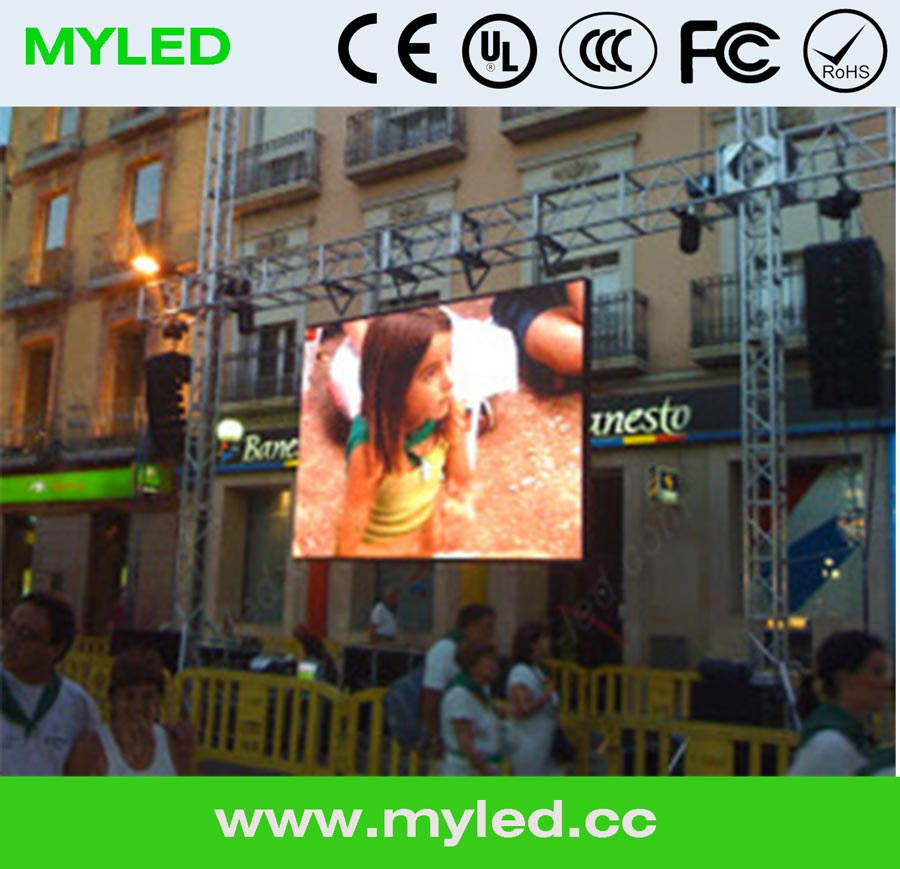

SMD3535 Waterproof P6 Outdoor LED Display for Rental
Product features:
1.Waterproof IP65,good for outdoor rental,small size is available
2. SMD led encapsulation confirm wide view angle and slim board
3.High pixel density, Long view distance, High definition,High brightness,Good uniformity
4.With Rental design Aluminum Cabinet,easy and quick to assemble without tools in short time
5.Die-casting cabinets confirm the strong configuration and lasting, super slim and light weight,
6.low power consumption, No fans,no noise created, Low transportation costs, and low installation costs.
7.Can be fixed installation or for rental to meet the request of live broadcast, live meeting, banquet, party, etc, to display the content what you want, connect with PC computer or network, also can remoto control with asynchronous system.
8.Widely used for commercial led display,advertising led display, stage led display,mobile led display. traffic led display,rental led display, sports led display etc.
Always feel free to get in touch with us; during working hours, your email will have our attention within 30 minutes.
P6 Outdoor Full Color LED Display Main Parameters |
Visual Characteristics | Unit | Value |
Pixel Pitch | mm | 6.0 |
Pixel Density | Dots/sq.m | 27777 |
Pixel Configuration |
| SMD3535 |
Cabinet Resolution | dots | 96×96 |
Refresh Rate | Hz | ≥1200 |
View Angle(H/V) | ° | 150/120 |
Brightness | nits | ≥5500 |
Gray Scale | Bit | 687Million |
IP Rating |
| 65 |
Power Consumption(Max/Avg) | W/sq.m | 650/300 |
Input Voltage(AC) | V | 110~240 |
Modular Characteristics |
Cabinet Size(W×H×D) | mm | 576×576 |
Cabinet Material |
| Die-cast Aluminum |
Cabinet Weight | Kg | 12 |
Module Size(W×H) | mm | 288×288 |
Environment |
Operation Temperature | ºC | -20~+50 |
Operating Humidity |
| 10%~90% |
Driving Mode |
| 1/8 Scan |
Control Distance | Cat 5E <100m,Single mode fiber<10Km |
