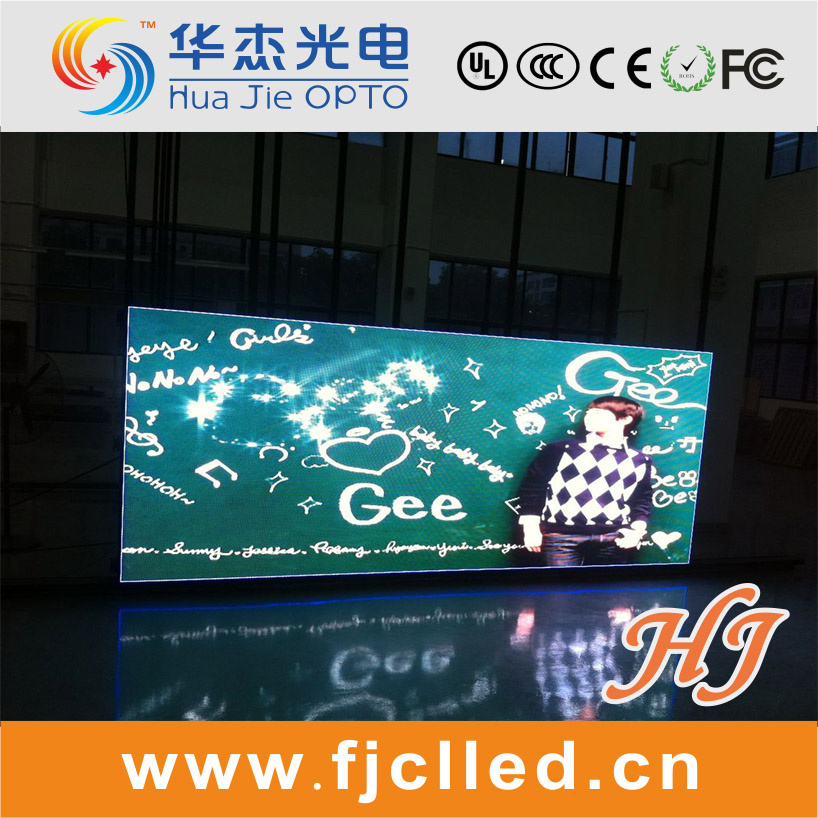

SMD Full Color High Clear Indoor LED Display (P6)
Quality LED Display, LED Video Wall. High Resolution, High Brightness, Stable Quality and Energy-saving. CE, RoHS, FCC Certificate
Features & Technical Specification:
1. Wide application field: Advertising LED display, shopping mall LED display for logo showing, bank & stock exchange LED display for rates showing, train & bus station, airport, telecommunication LED screen system for information showing and instruction, Stage performances and so on.
2. High Contrast and Frequency: 4000: 1 and 5000Hz, which is a very high level to ensure a vivid image of our LED screen system.
3. First-class LED chip: Supplied by Silan & other high strictly selected LED chip to ensure the long life time and high brightness of our LED screen system.
4. Clear vivid image quality: Even in direct, full-on sunlight to ensure you attracts more audience to get short ROI of your LED screen's investment.
5. Long-term Brightness: 6500-nit brightness(for outdoor full color)(2000 nits brightness for indoor full color)capacity throughout product lifetime of the LED display.
6. Easy Installation & Using: Easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED screen system.
7. Convenient Servicing: Front or rear cabinet access make the maintains work very convenient and low cost to help you concentrate more time and energy on your main marketing promotion business.
|
Indoor P6 SMD LED Display |
|
Item |
Parameter |
|
Pixel |
Physical pixel pitch: 5 mm |
|
Pixel configuration: 1R1G1B |
|
Chip |
Wave Length |
Brightness |
Packing |
|
R |
Opto |
620-623nm |
600mcd |
SMD3528 |
|
G |
Silan |
520-525nm |
1000mcd |
SMD3528 |
|
B |
Silan |
470-475nm |
300mcd |
SMD3528 |
|
Module |
Module resolution: 32x32 pixels |
|
Module size: 160 x 160 mm |
|
Led specification: Φ 5ellipse |
|
Cabinet |
Physical resolution: 128 x 128 pixels |
|
Cabinet size: 640 x 640 x 140 mm |
|
Physical density: 16384 pixels/cabinet |
|
Module quantity: 16pcs=4(w) x 4(h) |
|
Material: Mild steel/Aluminium alloy (corrosion resistant) |
|
Thermal discharge: Fan 2pcs |
|
Power supply: 4pcs |
|
Weight: 25 Kg |
|
Remarks: cabinet size can changed, upon project need. |
|
Main Technical Parameter |
Brightness ( White Balance): : 1800-2000 nits |
|
Brightness adjusted: 256 grade by software, or by Auto-optic induced |
|
Color processing: 14bit |
|
Grey scale/colors: 256 levels of each color(R/G/B)/16.7M color |
|
Color temperature(k): 2500 _ 4500 (adjustable) |
|
Physical density: 40, 000 pixels/m2 |
|
Whole display flatness: ≤ 1mm juncture |
|
Best view distance: ≥ 4m |
|
Best view angle: Horizontal ± 80° , Vertical ± 80° |
|
Storage temperature: -35° C ~ +85° C Working temperature: -20° C ~ +50° C |
|
Driving method: Constant driving current, Scan: 1/16 |
|
Refresh frequency: ≥ 1500Hz |
|
Frame rate: ≥ 60Hz |
|
Video signal: PAL/NTSC |
|
Flatness |
Tolerance of inter-pixel ≤ 0.3mm |
|
Tolerance of modules clearance≤ 0.6mm |
|
Power switch |
Automatic switch |
|
Display mode |
1024*768 |
|
Humidity(RH): 10 ~ 95% |
|
Working Voltage: AC 220v/380v± 10% 47~64Hz |
|
Short circuit protection: Yes |
|
Average power consumption: 500 w/m2 |
|
Max power consumption: 1000 w/m2 |
|
Current |
≤ 20mA(single LED) |
|
MTBF: 10, 000 hours |
|
Screen lifetime: 100000 hours |
|
Control System |
Operating system |
WIN2000/NT/XP/Vista/WIN7 |
|
Control method |
Synchronization |
|
Signal interface: RF, S-Video, RGB, RGBHV, YUV, YC, SDI, HD-SDI, DVI, UXGA, COMPOSITION, etc. |
|
Communication distance: Internet cable: ≤ 100m/ Fiber cable: 1000m |
|
Signal transfer mode: Pixels to pixels display synchronized |
|
Software |
LED media player |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Indoor Display |
|
Item |
Parameter |
|
Pixel |
Physical pixel pitch: 6 mm |
|
Pixel configuration: 1R1G1B |
|
Chip |
Wave Length |
Brightness |
Packing |
|
R |
Opto |
620-623nm |
600mcd |
SMD3528 |
|
G |
Silan |
520-525nm |
1000mcd |
SMD3528 |
|
B |
Silan |
470-475nm |
300mcd |
SMD3528 |
|
Module |
Module resolution: 32x 32 pixels |
|
Module size: 192 x 192 mm |
|
Led specification: Φ 5ellipse |
|
|
Cabinet size: 768mm x 768mm x 140 mm |
|
Physical density: 16384 pixels/cabinet |
|
Module quantity: 16pcs=4(w) x 4(h) |
|
Material: Mild steel/Aluminium alloy (corrosion resistant) |
|
Thermal discharge: Fan 2pcs |
|
Power supply: 4pcs |
|
Weight: 25 Kg |
|
Remarks: cabinet size can changed, upon project need. |
|
Main Technical Parameter |
Brightness ( White Balance): : 2000~2500 nits |
|
Brightness adjusted: 256 grade by software, or by Auto-optic induced |
|
Color processing: 14bit |
|
Grey scale/colors: 256 levels of each color(R/G/B)/16.7M color |
|
Color temperature(k): 2500 _ 4500 (adjustable) |
|
Physical density: 27, 777 pixels/m2 |
|
Whole display flatness: ≤ 0.8mm juncture |
|
Best view distance: ≥ 6m |
|
Best view angle: Horizontal ± 80° , Vertical ± 80° |
|
Storage temperature: -35° C ~ +85° C Working temperature: -20° C ~ +50° C |
|
Driving method: Constant driving current, Scan: 1/16 |
|
Refresh frequency: ≥ 1500Hz |
|
Frame rate: ≥ 60Hz |
|
Video signal: PAL/NTSC |
|
Flatness |
Tolerance of inter-pixel ≤ 0.3mm |
|
Tolerance of modules clearance≤ 0.6mm |
|
Power switch |
Automatic switch |
|
Display mode |
1024*768 |
|
Humidity(RH): 10 ~ 95% |
|
Working Voltage: AC 220v/380v± 10% 47~64Hz |
|
Short circuit protection: Yes |
|
Average power consumption: 500 w/m2 |
|
Max power consumption: 1000 w/m2 |
|
Current |
≤ 20mA(single LED) |
|
MTBF: 10, 000 hours |
|
Screen lifetime: 100000 hours |
|
Control System |
Operating system |
WIN2000/NT/XP/Vista/WIN7 |
|
Control method |
Synchronization |
|
Signal interface: RF, S-Video, RGB, RGBHV, YUV, YC, SDI, HD-SDI, DVI, UXGA, COMPOSITION, etc. |
|
Communication distance: Internet cable: ≤ 100m/ Fiber cable: 1000m |
|
Signal transfer mode: Pixels to pixels display synchronized |
|
Software |
LED media player |
Channel Cailiang (Zhangzhou) Optoelectronic Co., Ltd. is one of the biggest LED manufacture in China. Our factory have 30 PCS production line for Outdoor DIP Modules, 5 PCS line for Indoor SMD products and more than 1, 500 skilled workers. Our R&D team are comprised of a crew of 10% of total staff and most of engineers have more than 5 years experience in LED industry, which great support our new products developing or customized products according to customers' requests.
Our Main Business is Produce various LED Display Module and LED Display Panel for Customers' assemble. It' s avaliable supply all the components for assemble LED Display or LED Message Signs. Besides, we focus on offering whole proposal for LED Display Projects and Solutions. Not only for regualr type, we have continuously developed several Profiled Screens and achieved some proud success in developing Traffic Wireless Solution Display Screens.
In order to design and develop higher quality products, our R&D team always tries best to meet the US&Euro-standards for Electronic products, as well as to fulfill the special requirements from customers. Our products have been approved the German TUV- EMC Certification and Euro EN12966 Certification, and we have also achieved ISO9001: 2000, CCC, CE, FCC, RoHS Certifications.
with perfect designed products, integrated solution including both hardware and software, and superior product and service guarantee, Cailiang has been highly praised by domestic and overseas customers. We have been shipping qualified products and services to more than 50 countries and regions all over the world, such as in the USA, Japan, Russia, Sweden, Turkey, Poland, France, Israel, Argentina, Spain, Italy, etc.
We value the power of cooperative team work, we take "Quality & Honesty" as our belief, and "Being the Largest Global Supplier of LED display Solution" as our goal.
"Channel Cailiang" Sincererly Invite your participation!
