Home LED Light Products SMD 3528 LED Light Bar/Aluminum Rigid Strip Light

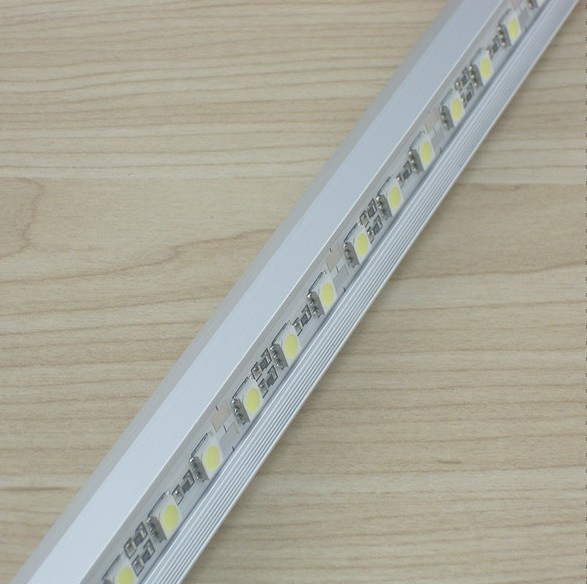

SMD 3528 LED Light Bar/Aluminum Rigid Strip Light

SMD 3528 LED Light Bar/Aluminum Rigid Strip Light
Price: Negotiable/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 100/Piece
Pay Type: L/C,T/T,Paypal,Money Gram,Western Union
SMD3528 LED light bar, Aluminum rigid strip light.

Application:

LED aluminum bar light is widely used in furniture lighting, showcase lighting to display jewelries, watches, artworks. Also, it's popular used in advertising light box, advertising signboard, car, shop, hotels, exhibitions, wimming pool and so on.

Product Feature

1. Aluminium PCB, available length 1m per PCS

2. Made of SMD 3528 or SMD 5050 LEDs from Taiwan EPIstar, with high brightness and long lifespan (up to 50 000hours)

3. High temperature resistant, aluminum PCB with good heat dissipation

4. Can be cut by every scissor unit

5. Working voltage: DC 12V, DC 24V

6. It is rigid, not flexible

7. Working temperature: -25 to +60 degree Celsius

8. Using environmental friendly material

9. Certification: CE & RoHS
Series No Color Led Quantity (PCS/M) CCT(k)/Wavelenth (nm) PCB Size VF(V) Power (W/M) Luminous Flux/M Water-proof Pack Standard
SMD5050 rigid strip (with white aluminum PCB, naked, Non-waterproof, without aluminum bar heat sink)
WD-RS5050W30 W/WW Y/G/R/B/RGB 30/PC 2000K-10000K H1.2mm*W12mm*L495mm DC12V/ DC24V 7.2w H: 480LM  N: 360LM NON 495mm/PC; 50g/pcs
WD-RS5050W60 W/WW Y/G/R/B/RGB 60/PC 2000K-10000K H1.0mm*W12mm*L990mm DC12V/ DC24V 14.4w H: 960LM  N: 720LM NON 1M/PC; 50g/pcs
WD-RS5050W72 W/WW Y/G/R/B/RGB 72/PC 2000K-10000K H1.0mm*W12mm*L990mm DC12V/ DC24V 19.44w H: 1152LM  N: 864LM NON 1M/PC; 50g/pcs

SMD3528 rigid strip (with white aluminum PCB, naked, Non-waterproof, without aluminum bar heat sink)
WD-RS3528W72 (Double Row) W/WW Y/G/R/B/RGB 72/PC 2000K-10000K h1.2mm*L435mm*W12mm DC12V/ DC24V 5.76w H: 540LM N: 360LM NON 435mm/pc; 65g/pcs
WD-RS3528W60 W/WW Y/G/R/B/RGB 60/PC 2000K-10000K h1.0mm*L990mm*W8mm DC12V/ DC24V 4.8W H: 450LM N: 300LM NON 1M/PC; 35g/pcs
WD-RS3528W84 W/WW Y/G/R/B/RGB 84/PC 2000K-10000K h1.0mm*L990mm*W8mm DC12V/ DC24V 6.72W H: 630LM N: 420LM NON 1M/PC; 35g/pcs
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage: Festival, Landscaping, Commercial, Home, Decoration
Life: 50, 000h
Power Source: DC
Electric Current Type: DC
Base Material: Aluminum
Input Voltage: 24V
Emitting Color: Full Range
Zhongshan World-Dawn Lighting Co., Limited Established in 2003, located at south area in Zhongshan City Guangdong province, border on the lighting capital Guzhen town, transport is very developed, near Guangzhou air port and Guangzhou international exhibition center only about one hour by car, beside the Jiangzhong highway, it is only 25 minuts near from Zhongshan port, deal with the shipment and export is very convenient.

Feature Products
Our company have a strong R&D, sales and service term, with modern standard workshops, we are a professional manufacturer of LED lighting application products, including LED chips encapsulation, LED flex neon, LED strip light, LED high voltage SMD rope light, LED floodlight, LED wall washer and LED tube.

Modern Equipment & Strict Quality Control
World-Dawn Lighting owns assembly lines of more than 15, 500m2.Our fabrication process is undertaken by automatic facilities, like wave-soldering, reflow-soldering and component SMT machines.Every production procedure is monitored by quality control staff and any piece of World-Dawn products is checked by our QC team.We have standard warranty for any item produced by World-Dawn.Furthermore, all our products have attained RoHS and CE certificates.

Competitive Price
As manufacturer, we are competitive in price.Meanwhile, Many accessories are produced by our own factory and We have own LED chips encapsulation factory, So we can control the cost very well.

Our major sales market
Europe, America, Japan, South Korea, World-Dawn company welcome the LED distributors who come from all over the world to make friendship and business to set up a beautiful future.

World-Dawn's operation philosophy:
Good quality is the life of the enterprise
Good service is the heart of the enterprise
