Product features
1. Simple structure, easy to assembled and maintained.
2. Specially designed for indoor long viewing distance.
3. Portable, convenient, big pixel pitch, very cost effective.
4. No-fans design. With lower sound, better heat dissipation, lower consumption, higher reliability.
5. Bright color, quick respond, long life span. Environment friendly and energy saving.
6. Strip structure and eliminating nearly all limitations on display size.

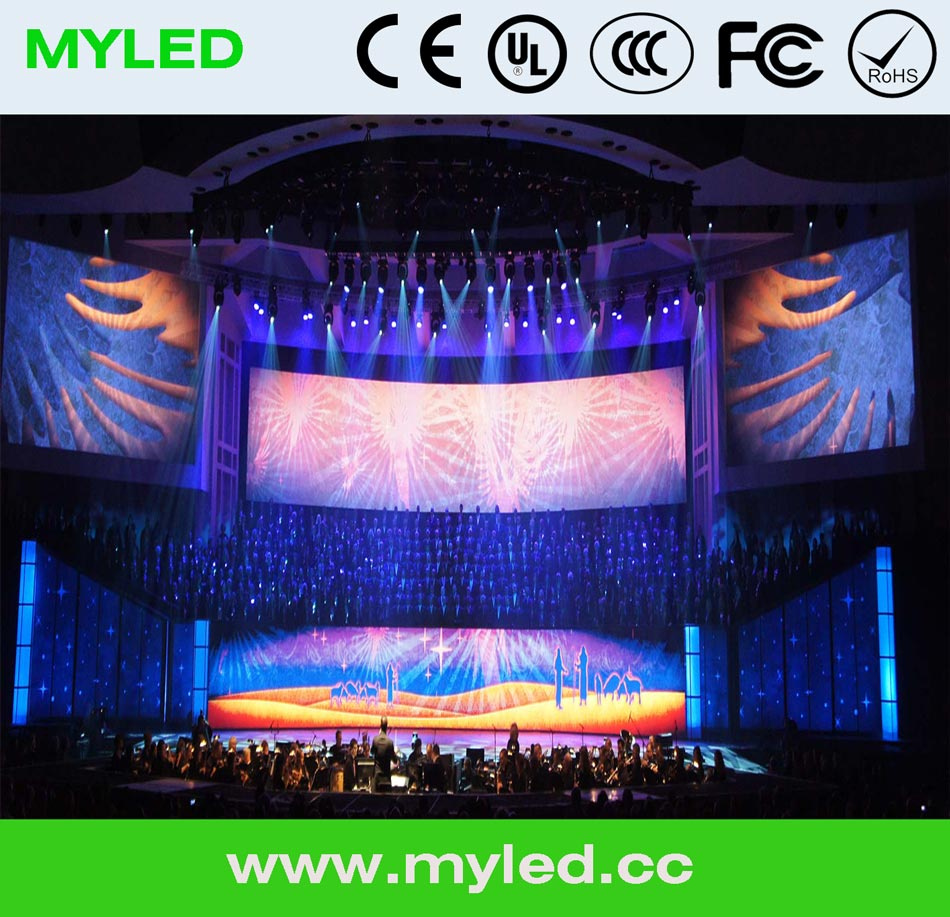

7. Mainly applied in indoor stage background for concert, curtain wall building, large advertising display, clubs, etc.
P16 outdoor full color LED display is specially designed for the outdoor HD shows; LED lamp adopts standard φ 4 oval DIP technology with high brightness and good heat dissipation. Every pixel is composed by red, green, blue color, the colors of the display can be reached 1.07 billion kinds, and can display colorful dynamic and static images in real time, it has perfect display effect. The display supports the usual VGA and DVI traditional video signal, it also specially supports HDMI video signal, and so on, in addition, it can receive and show video programs, such as TV programs\VCD or DVD\live programs, and so on.
P16 outdoor full color LED display adopts full automatic production, The product has high reliability, saturated and uniform color, high brightness, low consumption, long service life, is widely used in outdoor sites, such as square, outdoor concerts, theme park, shopping mall, golf courses, and so on.
number | Item name | Parameter and index |
| unit module |
| 1 | LED encapsulation mode | φ 4oval DIP |
| 2 | Horizontal axis | 120° |
| 3 | Vertical axis | 60° |
| 4 | Pixel composition | 1R1G1B |
| 5 | Pixel pitch | 16mm |
| 6 | Scan method | 1/2 |
| 7 | Drive method | Constant current |
| 8 | Module resolution | 16× 8 pixels |
| 9 | Module dimensions | 256mm× 128mm |
| 10 | Module type | incorporated lamp and drive |
| 11 | Module working voltage | +5V |
| 12 | Module average power | 5W |
| 13 | Module maximum power | 20W |
| 14 | Module shell material | PC |
| 15 | Module mask material | PC |
| unit cabinet |
| 1 | Module layout | 4× 6 pieces |
| 2 | Cabinet resolution | 64× 48 pixels |
| 3 | Cabinet maximum power | 600W |
| 4 | Cabinet average power | 150W |
| 5 | Cabinet dimension | 1024mm× 768mm |
| 6 | Cabinet material | steel/aluminum alloy |
| 7 | Cabinet color | black/gray |
| 8 | Protection grade (front/back) | IP65/IP54 |
| Entire screen |
| 1 | Application environment | outdoor |
| 2 | Brightness | > 8000 mcd |
| 3 | White balance coordinates | X=0.29, Y=0.31 |
| 4 | contrast | 64000: 1 |
| 5 | Color temperature | 8000K |
| 6 | Pixel density (pixels/m² ) | 3906 |
| 7 | Average consumption (W/m² ) | 191 |
| 8 | Maximum consumption (W/m² ) | 763 |
| 9 | Power source | AC220V/50HZ or AC110V/60HZ |
| 10 | Operating temperature | -20º C ~ +50º C |
| 11 | Operating humidity | 10% - 90% |
| 12 | Storage humidity | -30º C~ +50º C |
| 13 | Refresh frame rate | 60Hz |
| 14 | Refresh rate | 480Hz |
| 15 | Viewing distance | 15-300m |
| 16 | grayscale/color | 16.7M |
| 17 | Brightness adjustment | 100 manual levels /100 auto levels |
| 18 | Control method | synchronous with the computer display |
| 19 | Data transfer range | Network c able: 100m |
| 20 | Computer operating system | WINDOWS (98, 2000, XP, Vista, 7) |
| 21 | Video signal | VGA, DVI, RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION and so on. |
| 22 | MTBF | ≥ 10000 hours |
| 23 | Longevity | ≥ 100000 hours |
| 24 | Certification | UL/CE/CCC |
