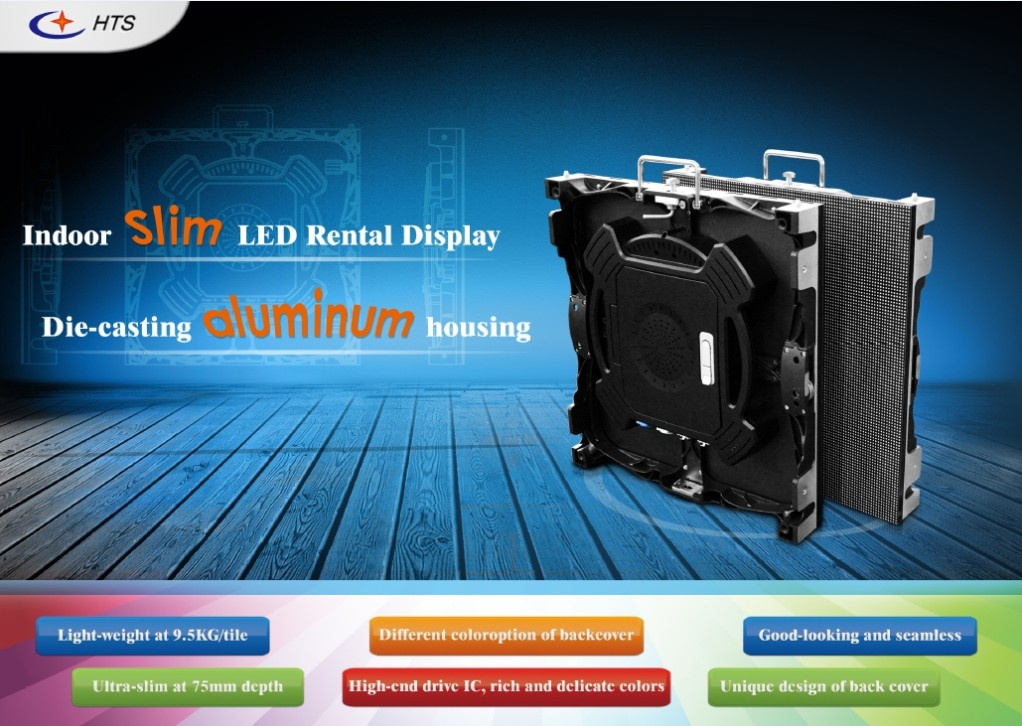

Features:
The cabinet thickness is only 75mm, the cabinet weight is only 9.5kgds/tile.
Different color options of back cover according to clients requirements.
16 bit driver IC with rich and delicate colors, refresh rate at 3500Hz.
Rotatable hanging lock and manual safety button avoid panels dropping off.
Special design of back cover make sure different ways of maintenance.
Adopt Die-casting aluminum housing, ensure the flatness of the screen and seamless among panels.
Neutrik connectors are adopted, fast assembly, durable.
Adopt the DC cooling fans, less noise for indoor use.
Support hanging and stacking, suitable for both fixed install and rental activities.
|
LED specification: |
|
NO. |
Color |
Chip brand |
Wavelength |
View Angle |
Place of origin |
|
1 |
Red |
Silan |
625nm |
140°/140° |
China |
|
2 |
Green |
Silan |
520nm |
140°/140° |
China |
|
3 |
Blue |
Silan |
467nm |
140°/140° |
China |
|
Cabinet specification: |
|
NO. |
Item |
Parameter |
|
1 |
Model |
HTS-IRP-4 |
HTS-IRP-4.92 |
|
2 |
Pixel pitch |
4mm |
4.92mm |
|
3 |
Pixel configuration |
1R1G1B |
1R1G2B |
|
4 |
LED type |
SMD2020 Black-face |
SMD3528 |
|
5 |
Module size |
256*256mm |
256*256mm |
|
6 |
Module resolution |
64*64 |
52*52 |
|
7 |
Cabinet resolution |
128*128 |
104*104 |
|
8 |
Cabinet size |
512*512mm |
512*512mm |
|
9 |
depth |
75mm |
75mm |
|
10 |
Density |
62500 dots per square meter |
41311 dots per square meter |
|
11 |
Brightness |
≥1400 NIT |
≥1600 NIT |
|
12 |
Best view distance |
≥4m |
≥10m |
|
13 |
Max. power consumption |
300W |
300W |
|
14 |
Ave. power consumption |
180W |
180W |
|
15 |
Cabinet material |
Die-casting aluminum |
|
16 |
Weight/tile |
8.5 KG |
|
17 |
Weight/sq.m |
32KG |
|
18 |
Colors |
281 trillion |
|
19 |
Refresh rate |
≥2000Hz |
|
20 |
View angle |
140 degree for vertical and horizontal |
|
21 |
Out of control pixel rate |
<1/10000 |
|
22 |
MTBF |
>5000 hours |
|
23 |
Lifespan |
100000 hours |
|
24 |
Signal input source |
Composite, S-video, Component, VGA, DVI, HDMI, SDI, HD-SDI |
|
25 |
Working voltage |
AC 100/200v 50-60Hz |
|
26 |
Control distance |
Ethernet cable: 100m, Multi-mode optical fiber: 500m, Singel-mode optical fiber: 20km |
|
27 |
Operation environment |
Temperature: -20 to +40, Humidity: 10%-80% |
|
28 |
Protection level |
Indoor |
|
|
|
|
|
