Led light manufacturers and factory

Home LED Light Products Slim Frame 240V LED Panel Lights

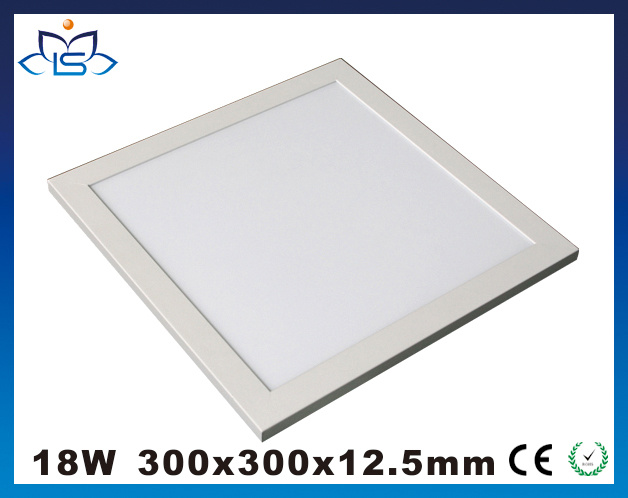

Slim Frame 240V LED Panel Lights

Slim Frame 240V LED Panel Lights
Price: US $ 25.7-29.3/Piece
Trade Terms: FOB,EXW
Min Order: 10/Piece
Pay Type: T/T,Paypal,Western Union
IS LED Panel Light - Square Shape - 11mm/12.5mm Thickness
300mm*300mm -- 18W/36W
600mm*600mm -- 36W/48W/54W/72W
620mm*620mm -- 36W/48W/54W/72W

Product Name:  Slim Frame 240V LED Panel Lights

Keywords:  Slim Frame Panel/240V LED Panel/LED Panel Lights

Feature:

<-> High quality high thermal conductivity aluminum plate, good performance on heat dissipation
<-> Samsung Chipset, make sure the good lighting source of the light
<-> Meanwell driver, ensure the good performance for the light
<-> Wide voltage input, swift start, no flicker, no dazzle and no tingle

<-> CRI 85+, reflect the real color of objects
<-> Wide voltage design, easy for different needs
<-> More than 12 install ways, suitable for different application

---------------------------> IS Lighting Co., Ltd <------------------------------

Application:

<-> Residential Lighting - Bedroom, Study, Sitting Room, Dining Hall
<-> Commercial Lighting -- School, Office, Hotel, Restaurant, Hospital
<-> Industrial Lighting -- Factory, Cleanroom

---------------------------> IS Lighting Co., Ltd <------------------------------

Service:

<-> In time inquiry reply
<-> Fixable delivery
<-> Good after-sale service

IS-33-AB
NameIS-LED Panel Light
Lighting SourceSMD5630
LED Chip BrandSamsung/Seoul/Epistar
LED Quantity48/96pcs
Driver BrandUL External Constant-Current Driver
Power Consumption18W/36W
Input VoltageAC100-240V
Working Voltage30-42V
Constant Current450MA/900MA
LED Luminous Efficiency70+5lm/w
Power Factor>0.95
LED Life Expectancy50000hours
Beam Angle120°
Luminous Flux1200+200lm/2400+200lm
Color TemperatureWW/NW/CW
Protection Grade(IP)Ip20
Color Rendering Index(Ra)>80
Temperature RisingPass according to En60598
Operation Temperature-10°~40°
Relative HumidityPass according to En60598
Fixture MaterialJunction Box, Hanglig Cable, Screws
Cover BrandAl 6063
Housing ColorSilver/White
Dimension/Size300x300x11mm/300x300x12.5mm
Net Weight1.2kg
Shock Test0.35-0.5Nm
Insulation ClassClassII
CertificationTUV/CE/FCC/PSE/RoHS
Warranty3years

Prod Model: IS-33-18W-B2
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model: Is-33-18W-B2
Power: 18W
Input Vol: AC100-277V
LED Qty: 48PCS
Lumen: 1000-1400lm
Cct: 2700-6500k
CRI: 80+
Pf: 0.95
Approval: CE RoHS UL TUV
Installation: Pendant/Suspended/Mounted/Recessed
Light Source: LED
Appearance: Square
Type: Ceiling
Emitting Color: Cool White
Certification: TUV FCC
Dimmable: With Dimmable
Housing Material: Aluminum
Voltage: AC100-277V
Beam Angle: 110
"IS Lighting" is a factory Doing OEM, ODM with 200-300 workers since 2009, we specilized in LED panel, LED tube, LED bulb, LED spotlight, LED PAR light, LED downlight, LED track light, LED cornlight, LED floodlight and LED high-bay etc with UL, cUL, DLC, RCM, TUV-SUD CB, GS, CE RoHS.

We have grown based on a global resource for Korea, Europe market, Amercia Market to a specialty manufacturer for world class projectors, designers, developers, trading companies and wholeselers who specify our products for everything from retail stores and warehouse to high-rise hotels, chain restaurants, private homes, specialty museums, buildings and office.

Our products have always been known for quality, reliability and solid

Performance, making IS Lighting the most specified brand in the lighting business.

The mission of IS Lighting is to be the leading provider of innovative, high quality lighting to commercial, municipal and utility markets.

Our goal, like yours, has always been the same: "Doing a fruitful business"

We are a partner who is trustworthy.

Do remember we are producing "a valuable product" instead of "a top-end quality with highest price or a cheapest price with low quality product for the globle market.

Let's move forward together! ! !

We Are Your LED Lighting Supplier.

Wir sind Ihre LED Beleuchte Liferant

Nous sommes des fournisseurs d'é Clairage LED
