Home LED Light Products Single LED Ceiling Light Surgical Headlamp (ZF760)

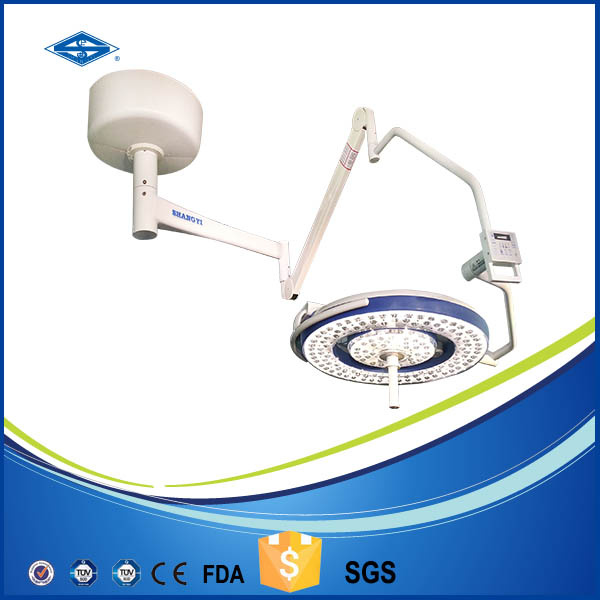

Single LED Ceiling Light Surgical Headlamp (ZF760)

Single LED Ceiling Light Surgical Headlamp (ZF760)
Price: US $ 2400-2500/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union
Zf760 Single LED Ceiling Light Surgical Headlamp (ZF760/760)

LED760 series shadowless LED light has 3 groups source composed.

One group consisting of 16 groups of light sources, each light source includes six LED (light emitting diode) light source. One of groups consisting of 5 sets of light sources, each light source comprises 7 LED (light emitting diode) light source.

Another group of light sources comprises 2 LED (light emitting diode) light source (endoscope mode). Each individual LED light source can emit light and reflected by the respective reflecting surfaces, and then the focus position of the light field in different convergent optical lens is formed through the surgical area, the combination of the optical domain to achieve a superior surface and deep and uniform lighting effect to meet a variety of surgical needs.

Type760 LED
Illuminance(Lux)160000
Colour temperature(k)4500±200
Colour reduction index(Ra)96
Illuminance depth(mm)1150
Total irradiance (W/m2)510
Size of light field (mm)160-280
Lamp head diameter(mm)760
Rated power of bulb(V/W)3.2
LED Service life of illuminant50000
Power supply voltageAC110V-240V
Brightness adjustmenAutomatic8-stage continuous light adjustment
Lowest height of installation(mm)2900


What is the Trade Items of  760 LED Single LED Ceiling Light Surgical Headlamp ?

Packing list
Light Head Size113*109*45(cm)
Light Head NW/GW36kg /27kg
Revolving Arm and Spring Arm121*63*42(cm)
NW/GW81kg/70kg
760 CBM0.88M3


Prod Model: ZF760
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Illuminance: 160,000lux
Temperature: 4500k
Illuminance Depth: 1150mm
Colour Reduction Index(Ra): 96
Total Irradiance: 510W/M²
Rated Power Of Bulb: 3.3V/1W
Lamp Head Diameter: 760mm
Size Of Light Field: 180-260mm
Service Life Of Illuminant: 50,000h
Power Supply Voltage: AC110-240V,50/60Hz
Type: Operating Light
Certification: ISO13485
Type Of Operating Light: Double Operating Light
Situated in Pudong District, Shanghai Huifeng Medical Instrument Co., Ltd. Specializes in the manufacturing of medical equipments. During the past more than two decades, the company has been developed into a high-tech enterprise with rich experience in scientfic research, development, manufacturing and sales of medical equipments.

The company keeps to the concept of being oriented by science and technology and taking quality as life. Now the company has passed the certification of ISO9001: 2008, ISO13485: 2003, CE and SGS. It has been evaluated as good-faith enterprise in the medical industry in Shanghai. The company has been honored with the certificate of Class A rating for contract credit in Shanghai Municipality. Over these years, unremitting efforts of all staff members enables professional manufacturing of LED Series Shadowless Operating Lamp, Series Shadowless Operating Lamp, YD Series Cold Light Operating Lamp, HF Series Operating Table, PE YD Series Oxygen Bag, YD Series Air Cushion Bed, DZ Series Electrical Pneumatic Hemostat and YXF-420 Sterilizer. Its products can be found in all domestic markets in China and also are sold abroad.

"Quality first, Credit first, Service first"is our tenet.

Huifeng is looking forward to sincere cooperation with you. Let's advance and pursue a wonderful future by mutual efforts.
