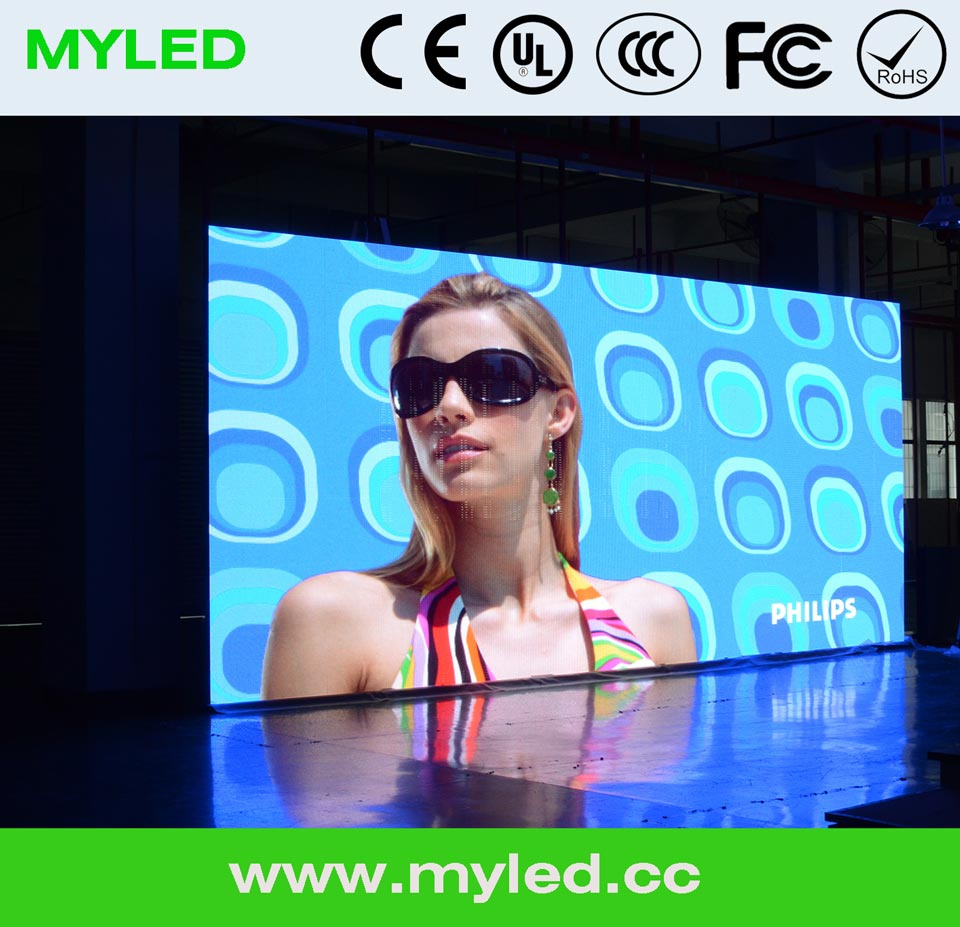

shenzhen Manufacturer Professional Led Display Factory P10 Full Color Outdoor Led Display Screen/advertising Display
SMD3535 led encapsulation confirm high brightness and wide view angle
High resolution,high refresh rate, no stroboflash, eyes friendly
Good waterproof IP65,long life span,more than 100000Hours
Wide view angle, High definition, Good uniformity
With rental aluminum cabinet,ensure the lightweight, easy and quick to assemble and disassemble,can move by hands
low power consumption, low noise created, low transportation costs, and low installation costs.
Widely used for stage, concert ,show, banquet, wedding ,rental display,commerical advertising,also can be used for led dance floor
| Outdoor Full Color LED Display Main Parameters |
| Visual Characteristics | Unit | Value |
| Pixel Pitch | mm | 8.928 |
| Pixel Density | Dots/sq.m | 12544 |
| Pixel Configuration |
| SMD3535/3528 |
| Cabinet Resolution | dots | 56×56 |
| Refresh Rate | Hz | ≥1800 |
| View Angle(H/V) | ° | 150/120 |
| Brightness | nits | ≥3000 |
| Gray Scale | Bit | 687Million |
| IP Rating |
| 65 |
| Power Consumption(Max/Avg) | W/sq.m | 700/300 |
| Input Voltage(AC) | V | 110~240 |
| Modular Characteristics |
| Cabinet Size(W×H×D) | mm | 500×500χ60 |
| Cabinet Material |
| Aluminum |
| Cabinet Weight | Kg | 9.5 |
| Module Size(W×H) | mm | 250×250 |
| Environment |
| Operation Temperature | ºC | -20~+40 |
| Operating Humidity |
| 10%~90% |
| Driving Mode |
| 1/7 Scan |
| Control Distance | Cat 5E <100m,Single mode fiber<10Km |
Located in Baoan District, Shenzhen Myled Optech is an professional LED display manufacturer which is dedicated to LED display R&D; Production, sales, marketing and one stop solution for customers mainland and international. Myled provides consulting, installation, training and sales services for customers. We always regard customers as the company life line.
Shenzhen Myled Optech focus on indoor and outdoor full color LED display, LED curtain display, mesh, indoor and outdoor single and bicolor LED display manufacturing. We have established business relationship with customers in South America, Euro, and Asia etc. And win a good reputation among customers all over the world. And we provide full solution for Government, Telecom, Hotel, airport, bus station, stadium, and cinema and financial center, etc. Over the past years, we have finished some important LED display project for South American and China Mainland.
Quality is the most important theme for Myled and welcome to contact, and visit our company.
We hold the truth that better quality, better price and better sales services are our company culture.
