Basic Data:

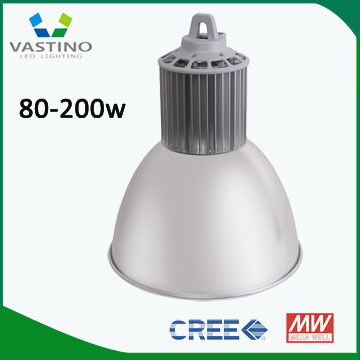

1. Product Name: Indoor highbay lighting
2. Item no: YSHL-002
3. Main materail: Aluminium+PC
4. Certificatie: CE ROHS SAA UL
LED:
1. LED Brand: Epistar/Cree/Base on requirement
2. LED type: High power
3. LED Working Volatge: AC100-240V
Model No.: YSHL-120A-JAP
Led Source: CREE XBD
Power: 100/150/200W
Lumens: 100± 10%LM/W
Input Voltage: AC100-240V
Color Temp.
WW 2800-3000K
NW 4000-4500K
PW 6000-6500K
Beam Angle: 45/90/120°
CRI: Ra≥ 65
Power Factor: >0.95
Electrical Data:
1. Rated Voltage: AC100-240V
2. Rated Frequency: 50/60Hz
3. Nominal Wattage: 100/150/180w
4Lamp Efficency: ≥ 89%
5. Power factor: ≥ 0.95
Material: Aluminum+PC
Installation Method: By Hooks
Color of Shell: Aluminum
IP Grade: IP50
Lamp Efficiency: ≥ 89%
Adaptable Environment: -20° C to +55° C
Lamp Working Temp.: ≤ 70° C
Techiniacal Data:
1. Color termperature: WW/NW/PW
2. IP Grade: IP50
3. Beam Angle: 45/90/120°
4. Color Rendering Index: ≥ 65
5. Rated Starting Time: 1s
Application:
1. Factory, warehouse, Fair
2. Gas station, super market
3. Hig lumens Excellent energy saving
Lamp Size
D200*H110mm/100W
D200*H140mm/150W
D300*H250mm/200W
Net Weight
4.2Kg/100W 4.8Kg/150W 8Kg/200W
Carton/PCS
1 PCS/Lamp Body 10PCS/Dome
Packing Size
Single: W255*L255*H330mm(100W)
W255*L255*H350mm(150W)
W305*L305*H460mm(200W)
Carton: Dome
45° : W500*L500*H470mm
90° : W575*L560*H420mm
120° : W575*L560*H285mm
Carton Weight
4.3Kg/100W Lamp Body
4.85Kg/150W Lamp Body
8.2Kg/200W Lamp Body
6-8Kg Domes
