GL12/20 Overview:

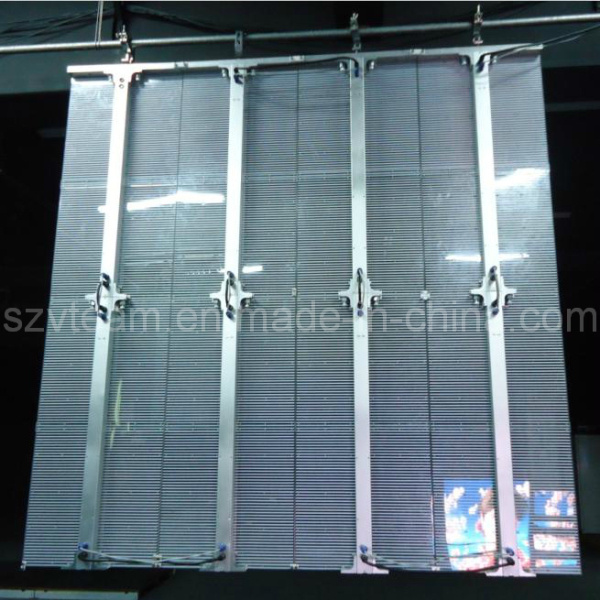

GL is a creative led screen with extremely high transparency, achieving a brilliant visual effect. GL screen can be applied on the building for advertising and decoration, as well as been hung up for rental application as display screen. 320x640mm for each panel size, only 5kg on weight for single panel, max thickness is 49 mm, all those unique advantages make GL a perfect choice for creative designing company to use on large-scale applications.
Main Advantages:
1, High transparency: 70% on transparency makes the led bulbs almost invisible above a specific distance on screen.
2, Flexible installation methods for various projects.
3, Lightweight body, single-person handling, easy transportation for touring shows.
4, Can be sticked on windows directly by special glue. Glue is easy to dry, without changing or damaging for buildings.
5, Perfect solutions for window facade, good daylighting, nice decoration and great advertising board.
6, High light transmittance: Light can get through screens easily.
7, Could achieve any arc-shaped within +/-10.
Nice appearance and highly cost effective.
|
Item Name |
|
GL12 |
|
GL20 |
|
Pixel Pitch |
|
12.5mm |
|
20mm |
|
LED Type |
|
RGB 3in1 SMD3535 |
|
RGB 3in1 SMD3535 |
|
Pixel Density/sqm |
|
6400 |
|
2500 |
|
Pixel matrix per panel |
|
48x24 |
|
32x16 |
|
Panel Size |
|
300x600x49mm |
|
320x640x49mm |
|
Weight |
|
5kg |
|
5kg |
|
Protection Level |
|
IP65 |
|
IP65 |
|
Brightness |
|
4500 nit |
|
4500 nit |
|
Best Viewing Distance |
|
12m |
|
20m |
|
Transparency |
|
≥70% |
|
≥70% |
|
ViewingAngle |
|
H140° V140° |
|
Gray Rate |
|
14bit |
|
Colors |
|
68 Billion |
|
Max Power Consumption |
|
125 W/panel |
|
125 W/panel |
|
Refresh Rate |
|
≥1200Hz |
|
Gamma |
|
-5.0~+5.0 |
|
Application |
|
Indoor |
|
Both for indoor and outdoor |
|
ControllingSystem |
|
Synchronous display with control PC by DVI |
|
Signal Input |
|
Composite ,S-Vide ,Component ,VGA,DVI,HDMI,HD_SDI |
|
Input voltage |
|
DC 36~75V,FSP.Technology Inc. |
|
Working Environment |
|
Temperature-10°C~+50°C,humidity 10~90% RH
|
