Home LED Light Products Scrolling Message Sign Indoor/Semi-Outdoor LED Display

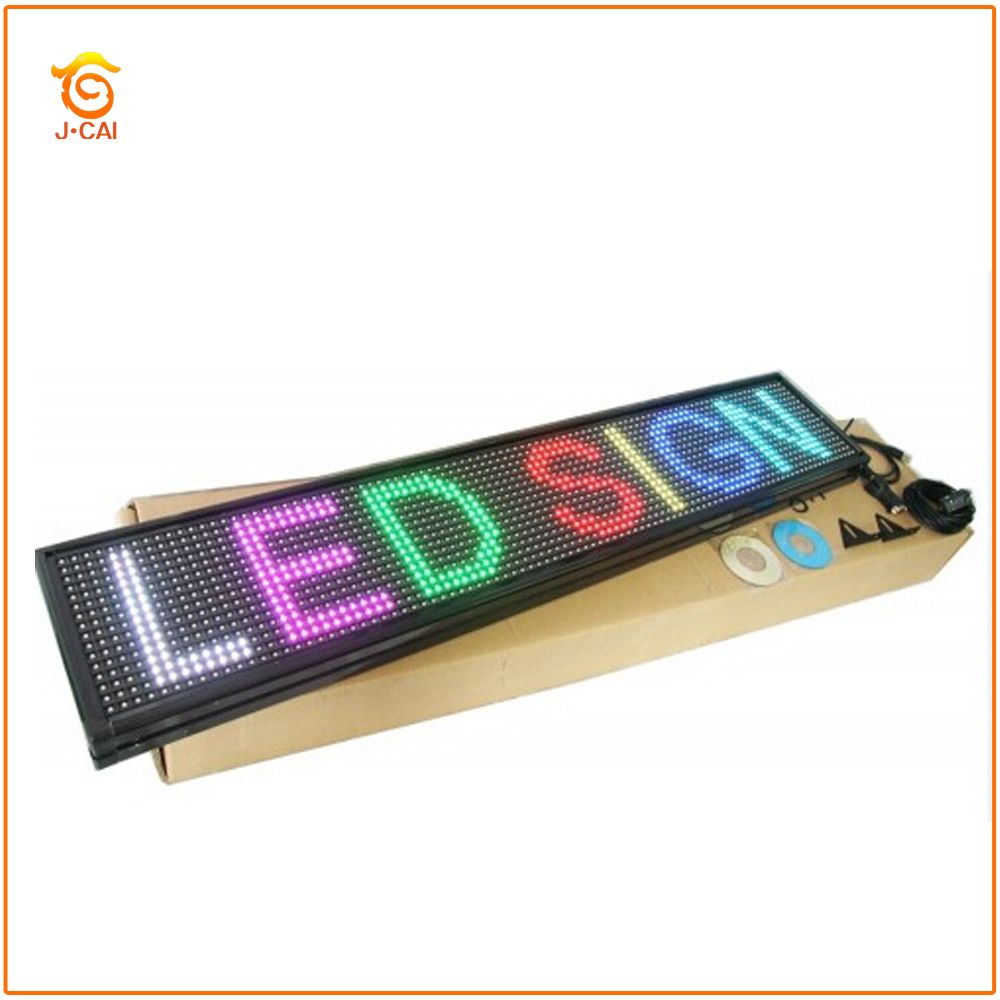

Scrolling Message Sign Indoor/Semi-Outdoor LED Display

Scrolling Message Sign Indoor/Semi-Outdoor LED Display
Price: US $ 5.5-6/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Western Union
Product Description

Indoor or Semi-Outdoor Scrolling Message Sign

1. Pixels: 4.75mm, 7.62mm, 10mm, 16mm, 20mm ect.
2. Display Color: Monochrome tri-color
3. Shops, schools, offices

Usage:

Service propaganda in finances, post offices, telecom, commerce, Advertising, Retail Businesses, Event Listings, Waiting Areas, Hospitals, Safety Awareness, Fund Raising, Point of Purchase, Entertainment Areas, Financial Information, Corporate Communications, Railway station, Subway station and so on.

Specifications:

1. Pixel pitch: 4mm, 4.75mm, 6mm, 7.62mm, 10mm, 12.5mm, 16mm, 20mm, P25mm ect.
2. Display Color: Single, tri-color or full color
3. LED color: Red, Amber, Blue, Red ect.
4. Communication: RS232/RS485 COM port, PC-USB port, or Infra-red remote controland so on.
5. Display English or European characters or multi-language, graphic symbol and simple
Animations.

Optional communication ways:
1. RS232/RS485
2. Remote control
3. USB
4. TCP/IP
5. GPRS
6. GSM

Functions:

1. Discription: Supports world languages, stores various kinds of characters.
2. A lot of lively animation icons are built-in. 50 and more action effects for options; Four-level different brightness.
3. Time clock format, support timing and countdown, temperature and humidity, power input: 220V/110V.
4. Structure: Well appreance frame, professional pendents, standard connectors and other accessories.
5. Accessories: 1 Display / 1 cable for communication / 1 cable for power input / 1 CD Disk (manual built-in) / EPE packing / Netural carton.

Our service:
1). Your inquiry related to our products or prices will be replied in 24hrs.
2). Well-trained and experienced staffs to answer all your enquires in fluent English.
3). OEM&ODM, any your customized screen we can help you to design and put into product.
4). Distributer ship are offered for your unique design and some our current models.
5). Protection of your sales area, ideas of design and all your private information
Model:ø3.0ø3.75ø5.0P10
Pixel pitch:4mm4.75mm7.62mm10mm
Density:62,500dots/m244,321dots/m217,222dots/m210,000dots/m2
Wavelength(R):620-625nm620-625nm620-625nm620-625nm
Wavelength(G):520-525nm520-525nm520-525nm520-525nm
Wavelength(B):460-465nm460-465nm460-465nm460-465nm
View Angle:140°(H)/120°(V)140°(H)/120°(V)140°(H)/120°(V)140°(H)/120°(V)
l ed Package:dot matrixesdot matrixesdot matrixesDIP
Color:1R/1G/1B1R/1G/1B1R/1G/1B1R/1G/1B
Brightness:>600cd/m2>650cd/m2>650cd/m2>1200cd/m2
White Balance:100100100100
Refresh frame frequency:60Hz60Hz60Hz60Hz
Refresh frequency:180Hz180Hz180Hz180Hz
Driver Mode:1/16 constant current1/16 constant current1/16 constant current1/4 constant current
Control Mode:synchronous/
asynchronous system
synchronous/
asynchronous system
synchronous/
asynchronous system
synchronous/
asynchronous system
Failed Dot:<=1/10,000<=1/10,000<=1/10,000<=1/10,000
Lifespan:100,000hrs100,000hrs100,000hrs100,000hrs
Module Resolution:64*3264*3264*3216*8
Module Size:256mm*128mm304mm*152mm488mm*244mm320mm*160mm
Weight:30kg/m230kg/m230kg/m235kg/m2
Control System:USB/RS232USB/RS232USB/RS232USB/RS232
Installation:Wall mounted,
Ceiling mounting,
Floor standing
Wall mounted,
Ceiling mounting,
Floor standing
Wall mounted,
Ceiling mounting,
Floor standing
Wall mounted,
Ceiling mounting,
Floor standing
Working Voltage:220V+10% AC,50Hz or
110V+10% AC, 60Hz
220V+10% AC,50Hz or
110V+10% AC, 60Hz
220V+10% AC,50Hz or
110V+10% AC, 60Hz
220V+10% AC,50Hz or
110V+10% AC, 60Hz
Max.
Power consumption:
600W/m2400W/m2210W/m280W/m2
Average
power consumption:
350W/m2300W/m2150W/m235W/m2
Application:Indoor Indoor Indoor Indoor / Outdoor
Working Temperature:-10°C--60°C-10°C--60°C-10°C--60°C-10°C--60°C
Working Humidity:10--90%10--90%10--90%10--90%


Prod Model: Jc -001
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Average Power Consumption: 350W / Sqm
Size: Can Be Customized by The Request of Customer
Cabinet: Sample Cabinet,Frame and Water-Proof Cabinet
Color Options: Single Color,7 Colors and Full Color
Communication Port: USB, RS232, Internet Communication Port
Working Hours: 100000 Hours
View Distance: 5-100m
Brightness: >2300 Nits
Refresh Frequency: >300Hz
Max. Power Consumption: Below 500W
Tube Chip Color: Single Color
Display Function: Image & Text Display
Pixel Density: 10,000 dots / m²
Scanning Mode: 1/4 Scan
Display Type: LED Dot Matrix Display
Application: Shopping Guide
Certification: ETL
Pixel Pitch: 4.75mm, 7.62mm, 10mm, 16mm, 20mm Ect
Pixel Configuration: 1r,1g,1b,1W,1y
IP Rating: IP65
Jingcai (Fujian) Photoelectric Co., Ltd. Was founded in 2005, with a registered capital of 20.18 million Yuan, a workshop covering an area of 20000 square meters and independent living and production places. Our company is professional in the development and manufacture of LED display systems. Our company technology strength is among the front row in this area, with a vigorous team.

In March, 2011, our company independently researched and developed a full-color formal P16 LED display, which can completely replace the current market single color LED displays, being the perfect choice in the next line of LED display market. In June, 2011, after designing P10 optical modules, we ceremoniously rolled out P10 light module series, which can effectively enhance the efficacy by above 10% and can effectively avoid a screen phenomenon. In August, 2011, our company took the lead in Quanzhou LED industry technology innovation strategy alliance. As the President unit, our company set up "Quanzhou LED Technology Research Center", featuring the national quality supervision center. Our company has many experts and professors from Xiamen University Semiconductor Research Center, Fuzhou University and Beijing University Institute of Photoelectricity for our research center technology consultation to comprehensively promote Quanzhou LED industry. In November, 2011, relying on our strong technical research and development team, we made a new generation of international leading 3D display screens.

Through six years of unremitting efforts, our company has successively obtained such honorary titles as The State Ministry Of Small-Sized And Medium-Sized Enterprise Technology Innovation Fund Project Unit, Small-Sized And Medium-Sized Enterprise In Fujian Province Technology Innovation Fund Project Unit, ISO9001 International Quality Management System Authentication Enterprise, CCC China National Mandatory Product Certification Enterprise, CE Compulsory Product Certification Enterprise, FCC Anti-Radiation Product Authentication Enterprise, RoHS Lead-Free Environmental Protection Product Authentication Enterprise, IP65 Waterproof and Dustproof Product Authentication Enterprise, Chinese Optical Optoelectronic Industry Member Unit, National Taxpayer Service Work Outstanding Member Unit, Unit With 15 Independent Research And Development Patents Of The State Intellectual Property Office, Fujian Quality And Right Protection Service (Member) Unit, Fujian Integrity And Labor Advocate Unit, Quanzhou Industry And Commerce Credit Good Enterprise, Quanzhou Creditable Unit, Quanzhou LED Technology Research Center and Quanzhou LED Industry Technology Innovation Strategy Alliance Chairman Unit.

Our company always implements our development target and insists on the tenet of "customers are the growing power source". Our company has a perfect after-sales service system, truly realizing that customers are the centers of the market marketing model.

Through our efforts, our products have been sold well in Europe, North America, Australia, the Middle East and Southeast Asia. Our company has set up stable sales agents in the corresponding areas. Our company sincerely hope to cooperate with LED display system talents and dealers for common development and for the development of LED display systems.
