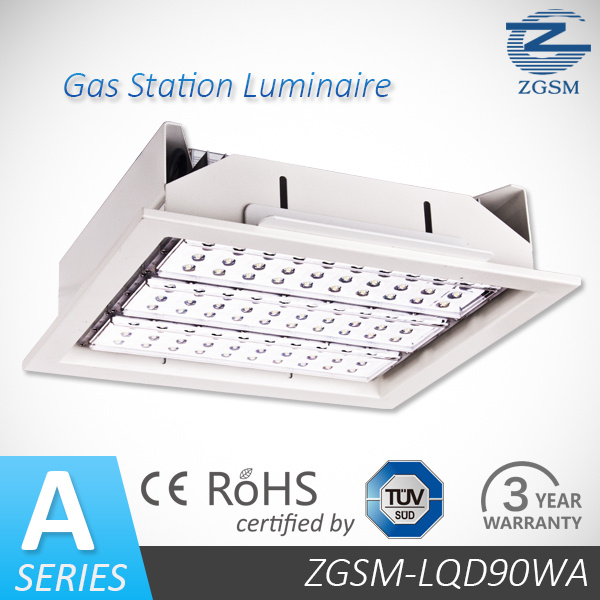

100W LED Caopy Light, Recessed Light CE approved (ZGSM-LQD90WA)
High Quality and Brightness LED Light Source
Stable and Efficient LED Driver
Utilizing World's leading MEAN WELL® LED Driver, Great luminaire stability, lifespan & Optimal Performance Status.
Optimal Heat Sinking Performance
Use of the good thermal grease combining MCPCB and aluminium radiator closely, keeps every LEDs obtaining optimal effects of heat dissipation
Light attenuation of LEDs under safe control with adequate heat sinking area and excellent air flow design
Designed the different beam angle directly from LEDs lens, available in 60° and 120° illuminated angle, plus the mirror surface processed technics, effectively collect the invalid light and reflect them into effective
Exclusive Appearance Design with Patents
Modular design for lighting parts, makes maintenance more simple
Specifications
Model No. ZGSM-LQD90WA
Electrical SpecificationsLED Power90W
Lamp's Power100W
Operating Voltage100-240VAC, 50/60Hz 24VDC
Optimal Operating Temp-40ºC ~ +50ºC
Operating Humidity10% ~ 90%
Power Fact(PF)> 0.95
Driver Efficiency> 90%
Photometric SpecificationsLED Luminous Flux10800 lm - Initial
9900 lm - Maintain
LED Luminous Efficiency110 lm/w
CRIRa ≥ 75
CCT
Mechanical SpecificationsIP RatingIP20
Warranty3 year
Heat RadiatorAnodized Aluminum
LensPlastic (PC)
Fixture Dimension358 X330 X130 mm (14.09 X12.99 X5.12 inches)
Fixture Weight6.7 kg (14.8 lbs)
Packing InformationPacking Type1unit /CTN.
Packing Dimension420 X370 X195 mm (16.5 X14.6 X7.7 inches)
Packing Weight7.7 kg (17.0 lbs
Welcome to ZGSM. For over 8 years, ZGSM has been dedicated to creating a better quality, eco-friendly, efficient lighting environment through diverse businesses of LED lighting, LED traffic signal, solar LED lighting system and more.
Company Information
Founded in 2005, Hangzhou ZGSM Technology Co., Ltd is located in Linglong Industrial Park, the west of Hangzhou. ZGSM is a hi-tech and privated Enterprise devoted to R&D, producing and selling of high quality LED Street lights, LED high Bay Lights, LED Canopy Lights, LED Gas Station Lights, LED Tunnel Lights, LED Tube Lights, LED Traffic Light and Solar Street Light and so on. As one of the patent model enterprises and the first batch of saving energy seriveice company in Zhejiang Province, we have registered more than fifty products; We are also the members of Illuminating Engineering Society and Semiconductor Industry Association in China.
ZGSM Research
ZGSM boasts a standard production line, import and export priority and the expertise of management, development, manufacturing and marketing team. Our products covers "LED street lights, LED high bay lights, LED gas station lights, LED Canopy Lights, LED Flood Lights, LED tunnel lights, LED tube lights and; LED traffic lights; Solar LED street lights systems. Our products take the advantage of energy saving, environmental friendly, long life and so on. Been widely used in indoor/outdoor lighting, city lighting, traffic instruction, solar power generation projects and other fields.
Customer and Partner Experience
ZGSM has passed ISO9001 and ISO14001 international quality and environmental management system certificates. And all the products has passed CE, RoHS, CB, GS, UL, DLC, LM-79, LM-80 etc. Our D&R center is cooperating with many research institutes at domestic and abroad to develop the projects to provide customers with high-efficient, energy-saving, eco-friendly products and technical services. At present, our products have been exported to more than 100 countries and regions. ZGSM owns distribution network and after-sales service in 30 provincial capital and listed cities in China. We also have participated many important constructive projects over the world, and gained high praise from our customers.
Our Values
Through innovative, reliable products and services; Talented people; A responsible approach to business and global citizenship; And collaboration with our partners and customers, ZGSM is taking the world in a premium lighting experience.
