Led light manufacturers and factory

Home LED Light Products Round Surface Mound LED Panel Light

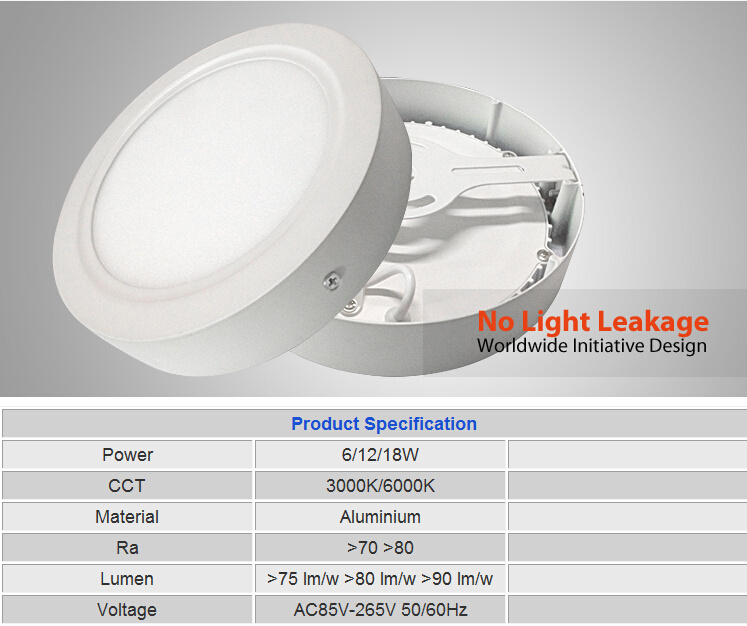

Round Surface Mound LED Panel Light

Round Surface Mound LED Panel Light
Price: US $ 3.8/Piece
Trade Terms: FOB
Min Order: 10/Piece
Pay Type: T/T

Product name :Round Surface Mound LED Panel Light

MeiKe Lighting LED Panel light are very Popular. We specilized in LED Track  Light , LED spot light , LED ceiling light ,  LED panel light for almost 6 years . We pay attention to the driver systerm , led chip and heatsink problem , We make product maybe not the lowest price in the world , but reasonable price based on this good quality product .


LED Panel Light Quick Details:

Light Source:

LED
Item Type:
Panel Lights
LED Light Source:
led
Warranty(Years):

2
Input Voltage(V):
85-265
Lamp Power(W):
9W
Color Temperature(CCT):

Warm White/white
Lamp Luminous Efficiency(lm/w):
90
CRI (Ra>):
80
Lamp Body Material:

Aluminum Alloy
Working Temperature(ºC):
-85
Working Lifetime(Hour):
50000
Place of Origin:

Guangdong, China (Mainland)
IP Rating:
IP44
Certification:
CE, RoHS
Name:

led panel lighting
Light source:
SMD 2835 Epistar
Model Number:
MK-PLSM-9W
Beam angle:

120 degree
light color:
warm white,cold white
Shell Housing:
PMMA+Aluminum Alloy
dimmable:
non-dimmable
application:
lighting projects, banks, hotels, schools, bookstores and others
size:
150*12mm

REMARKS:

1.Epistar chips inside,

2.The weight is net weight,5% deviation is aeecptable.

3.Lumen test in 6500K color tempt.

4.MEIKE LED guarantee all the products will be low decay and high efficient under many test statics support.

5.Frenquency:50/60Hz


Packaging & Delivery:

Packaging:packing in carton

Delivery time:Based on the quantity of the customer order , usually 7-10 days!

Specifications:
Features :
1.Energy saving:Compared to ordinary down light ,LED save 80% energy.

2.Long lifetime:more than 30,000hours.

3.Enviromental protection:100% recyclable,No mercury or other hazardous materials.

Products show:















LED Panel Light Square

Model No.

Power LED Qty SizeCutoutInputLumen
MK-PLS-3W

3W15pcs90*90*25mm75*75mmAC85~265V >=165lm
MK-PLS-4W

4W20pcs110*110*25mm 100*100mm>=250lm
MK-PLS-6W

6W30pcs120*120*25mm110*110mm>=430lm
MK-PLS-9W

9W45pcs150*150*25mm140*140mm >=650lm
MK-PLS-12W

12W60pcs172*172*25mm160*160mm>=890lm
MK-PLS-15W

15W75pcs192*192*25mm180*180mm>=1180lm
MK-PLS-18W

18W90pcs225*225*25mm210*210mm>=1580lm
MK-PLS-24W

24W120pcs300*300*25mm280*280mm>=1800lm
Color Temperature


White, Warm White, Natural white(3200k,4000k,6500K)

Panel LED Light Round

Model No.

Power LED Qty SizeCutoutInputLumen
MK-PLR-3W

3W15pcsΦ90*25mm Φ75mm      AC85~265V >=165lm
MK-PLR-4W

4W20pcsΦ110*25mmΦ100mm>=250lm
MK-PLR-6W

6W30pcsΦ120*25mm      Φ110mm>=430lm
MK-PLR-9W

9W45pcsΦ150*25mmΦ140mm>=650lm
MK-PLR-12W

12W60pcsΦ172*25mmΦ160mm>=890lm
MK-PLR-15W

15W75pcsΦ192*25mmΦ180mm>=1180lm
MK-PLR-18W

18W90pcsΦ225*25mmΦ210mm>=1580lm
MK-PLR-24W

24W120pcsΦ300**25mmΦ280mm>=1800lm
Color Temperature

White, Warm White, Natural white(3200k,4000k,6500K)


Reason for choosing us :

1. High Quality product in competitive price .

2. Our product is coming with CE and RoHS cert.

3. Professional worker who is making good craft and good product .

4. 6 years oversea sale experience .

5. New product every month.

6. ODM&OEM Services.

7. Keep your money safety and grown your business rapidly .



Price based on quantity and based on choosing which material  ,different chip , cover , driver price is not the same .We can discuss about this .Price we gave is competitive !


If I am not on line , please send email . I will response you asap. Thanks for your reading !

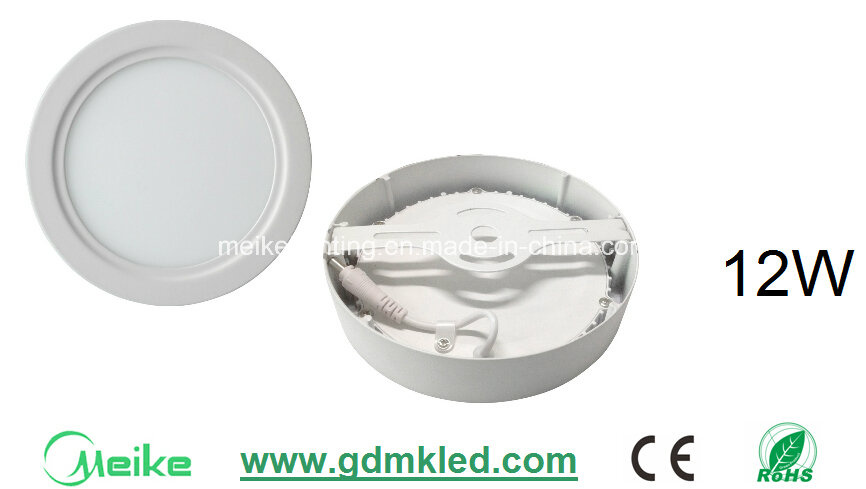

Prod Model: MK-PLSM-12W
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 150*12mm
Light Source: LED
Emitting Color: White
Dimmable: Without Dimmable
Appearance: Round
Type: Embedded
Base Material: Plastic
Certification: RoHS
Voltage: 85V-265V
Housing Material: Aluminum Alloy
Beam Angle: 120
Jiangmen Meike Lighting Co., Ltd. LED indoor and commercial lighting products dedicated to the research and development, production, marketing and engineering design, integration of high-tech complex enterprises. Founded in 2009, is located in Jiangmen City, Guangdong Province!

LED lighting products are a modern new-type energy-saving, green, environmental protection, fire exemption product. The plant has a large production lines, advanced management, peer in at the advanced level. To provide customers with the highest cost-effective LED products, our business philosophy is: "reputation-based, quality first" principle of service is "quality, price, excellent service. "

Company's main products: LED Panel light, LED down light, LED flood light these outdoor and indoor product. They are widely used in architectural decoration, hotel and home decorative landscaping lighting situations. At the same time can also accept clients to plan projects production.

The company has always insisted the pursuit of high-quality, never-ending; To whole-heartedly, everything for the customer for the purpose, the use of advanced manufacturing equipment, testing equipment, excellent management and has a strong high-quality personnelteam - because we are professional, dedicated, factory has a complete production line. To provide customers with the highest cost-effective LED products, we ensure that the supply timely, reliable, and highly competitive prices, I believe we are your best choice! Integrity management, excellence is our eternal pursuit!

We must "Meike LED" beating the lighting caused by first-class brand, for which we constantly strive for innovation, provide energy-saving, environmental protection, and efficient new light source, to the benefit of the community and beautify life.

Company to OEM, ODM manufacturers seeking move around the form of agents, distributors, or direct engineering application side, our career partners.

Call Advisory welcome you!
