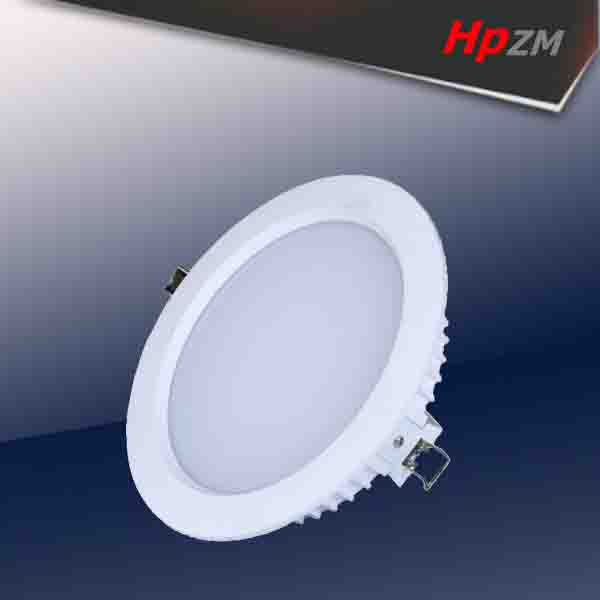

Round /Square LED Panel Light
Product Description
12W Round LED Panel Light LED Panel,3/4/6/7/9/12/15/18/25W Is Optional
High Brightness LED Panel Light,SMD2835 LED Panel Light,Energy-Saving LED Panel Light
| Model No | Technical Data | Specifications | Chips Spec |
| Input Voltage | Power | Power Factor | CCT | Lumen | CRI | Dismension | Hole Size | Materal | Model | PCS |
| HP-LED ROUND PANEL | AC85-265V | 3W | ≥0.9 | 2700-8000K | 300 lm | ≥75Ra | φ 85*20mm | φ 75mm | AL+PMMA+LGP | SMD 2835 | 15 |
| AC85-265V | 6W | ≥0.9 | 2700-8000K | 600 lm | ≥75Ra | φ120*20mm | φ110mm | AL+PMMA+LGP | SMD 2835 | 30 |
| AC85-265V | 9W | ≥0.9 | 2700-8000K | 900 lm | ≥75Ra | φ146*20mm | φ135mm | AL+PMMA+LGP | SMD 2835 | 45 |
| AC85-265V | 12W | ≥0.9 | 2700-8000K | 1200lm | ≥75Ra | φ170*20mm | φ160mm | AL+PMMA+LGP | SMD 2835 | 60 |
| AC85-265V | 15W | ≥0.9 | 2700-8000K | 1500lm | ≥75Ra | φ200*20mm | φ185mm | AL+PMMA+LGP | SMD 2835 | 75 |
| AC85-265V | 18W | ≥0.9 | 2700-8000K | 1800lm | ≥75Ra | φ220*20mm | φ210mm | AL+PMMA+LGP | SMD 2835 | 90 |
| AC85-265V | 24W | ≥0.9 | 2700-8000K | 2400lm | ≥75Ra | φ240*20mm | φ225mm | AL+PMMA+LGP | SMD 2835 | 120 |
| HP-LED SQUARE PANEL | AC85-265V | 3W | ≥0.9 | 2700-8000K | 300 lm | ≥75Ra | φ 85*85*20mm | 75*75mm | AL+PMMA+LGP | SMD 2836 | 15 |
| AC85-265V | 6W | ≥0.9 | 2700-8000K | 600 lm | ≥75Ra | φ120*120*20mm | 105*105mm | AL+PMMA+LGP | SMD 2837 | 30 |
| AC85-265V | 9W | ≥0.9 | 2700-8000K | 900 lm | ≥75Ra | φ146*146*20mm | 135*135mm | AL+PMMA+LGP | SMD 2838 | 45 |
| AC85-265V | 12W | ≥0.9 | 2700-8000K | 1200lm | ≥75Ra | φ170*170*20mm | 155*155mm | AL+PMMA+LGP | SMD 2839 | 60 |
| AC85-265V | 15W | ≥0.9 | 2700-8000K | 1500lm | ≥75Ra | φ200*200*20mm | 185*185mm | AL+PMMA+LGP | SMD 2840 | 75 |
| AC85-265V | 18W | ≥0.9 | 2700-8000K | 1800lm | ≥75Ra | φ220*220*20mm | 205*205mm | AL+PMMA+LGP | SMD 2841 | 90 |
| AC85-265V | 24W | ≥0.9 | 2700-8000K | 2400lm | ≥75Ra | φ240*240*20mm | 225*225mm | AL+PMMA+LGP | SMD 2842 | 120 |
Feature:
1. Beautiful and clean appearance,easy installation
2. High light and high luminous efficiency SMD2835 LED as light source
3. High quality light guide plate and diffusion plate,ensure the light uniform and soft
4. Superior die casting aluminum makes good heat dissipation,no heavy metals and harmful gas,environmental friendly
5. Adopting outside power supply with wide input voltage,no flicker,no glare,no radiation
6. Low power consumption,can save energy more 80% than traditional fluorescent lights
7. CE, RoHS approved,safe and reliable
8. Long life time, up to 30,000 hours
Applications:
1. Commercial and exhibition locations
2. Hotel,shopping mall
3. Conference/meeting room
4. Factory, office, residence
5. School, hospital and other public places
Installation:
1. Cut a hole on the ceiling where the panel light will be installed
2. Install the LED driver and imbed the panel light in the hole
3. Connect the power supply and start
