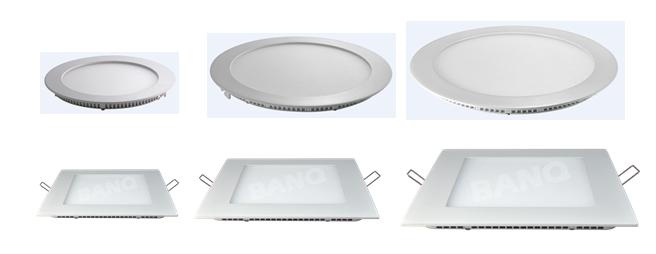

Led panel uses aerometal shell, very simple and fashionable .
It takes high brightness led lamp, side-emitting design,ultra thin height;
Use constant current driver,No flicker, no glare, very soft and even light;
High light efficiency , low power consumption, save much energy ,Lift time could reach 50,000 hrs,
Easily embedded installation.
| Item | Parameters |
| Input Voltage/Frequency | AC85-265V 50/60Hz |
| Input Current(Typ) | 0.057A |
| Output Voltage | DC30-40V |
| Output Current | 300mA |
| Power | 12W |
| Power Factor(Typ) | PF>0.7 |
| Efficiency(Typ) | η>0.85 |
| LED Chips Quantity | 60(2835) pcs |
| Lumen Output | 840±50lm |
| Color Temperature | 5500-6000K |
| Color Rendering Index | Ra≥80 |
| Viewing Angle | 110° |
| Dimensions | 6 Inch |
| Hole Dimension | Ø158- Ø160mm |
| Operating Temperature | -25~60 ºC |
| Storage Temperature | -40~80 ºC |
| IP Grade | IP20 |
| Lumen Maintenance | >85%(5000Hrs) |
| Life-span | 50000Hrs |
| Appliance Class | III ClassIII |
| Item Model | Inner Packing Size
(L*W*H) | Carton Size
(W*L*H) |
Qty |
G.W. |
N.W. |
| TF-YPL-J170/2835CB-12A | 190x32x220mm | 460*350*400mm | 40PCS | 14kg | 19.5kg |
Shenzhen Banq Technology Co., Ltd., is a professional LED manufacturer with strong capability in R&D, Production, Marketing and customer service. We have a variety of products, which can be classified in two catagories:
First is LED general illumination lights which including LED bulb, LED tube, LED strip/Ribbon, LED spotlight, LED down light, LED SMD spotlight, Auto light, wall washer, as well as LED module. Second is indicating LED for different applications which including high/low power LED series. Super flux LED (Piranha) series, SMD LED series, and super-bright through-hole LED series. Our products are widely used in General Illumination Industry, Auto Industry, Electronic Display Industry and signal Electronic iIndustry etc.
Established in 2002, with a total area of 16000 square meters, BANQ has about 1000 well-trained employees. With our dedicated staffs and rich experience in LED field, we can quickly respond to customer needs, providing customized products and services to help customers succeed. At present, we export 90% of our prodcuts Europe, North America, and some other countries.
"Quality First, Customer Paramount, Service Uppermost! " is our principles. In order to make the life of modern people more wonderful, BANQ is willing to form a close ally with customers through our superior LED products, excellent and value-added service.
