Product Description

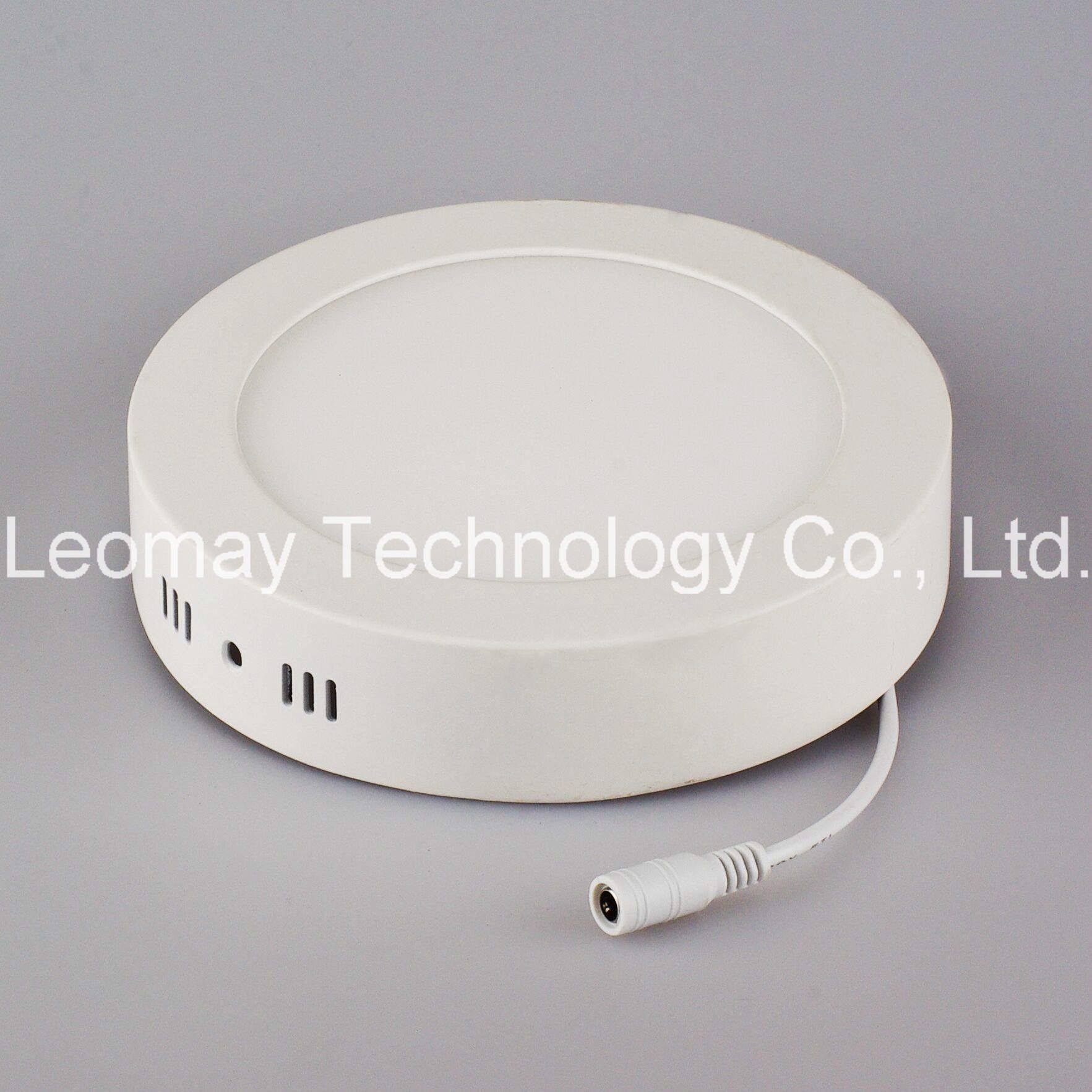

LM-DL85*40-3W-R
Specifications:
· Power: 3W
· LED Qty:15pcs
· Light Angle:120°
· Light Flux:360lm
· Size:85×40mm
· Shape:Round
· Color temperature:White(6500k)/Natural white(4200k)/Warm white(3000k)±200
· Input voltage: AC85-265V,50-60Hz Using temperature:-20-50
· Power factor: ≥0.9
· Power-supply efficiency(PE):≥88%
· CRI : Ra≥75
Feature:
1. The input line of the lamp plus fixed clamp, is not easy to fall off.
2. Specific stainless steel spring, no rust, not easy to deformation, high elasticity, high safety
3. Flat stainless steel screw, parallel with the lamp body.
Construction:
1. Using high lumen SMD 2835 light source.
2. High intensity aluminum shell, heat faster.
2. Using good reflectivity light leading board ,the light is more equally.
3.Low voltage and constant current driver ,no glare ,the light is soft.
4. Launch in 0.01sec,no flashing ,no noise ,no radiation .Energy saving ,belongs to grand environmental light.
5. This product can show high brightness ,without seeing the lamp itself.
Service:
Prompt response in 24hrs
MOQ=5pcs
Delivery in one week for samples and 4 weeks for shipment
warranty: 2 years, 100% replacement guarantee
Application of our LED Panel light:
1. Hotels
2. Conference/Meeting rooms
3. Factories&Offices
4. Commercial Purposes
5. Residential/Institution Buildings
6. Schools,Colleges&Universities
7. Hospitals
8. Pleaces where energy saving and high color rendering index lightings required
Model NO | Size(mm) | Watt | LED QTY | Luminous Flux | SMD Type |
LM-DL85*40-3W-R | 85*40 | 3W | 15 | 360LM | 2835 |
LM-DL120*40-4W-R | 120*40 | 4W | 20 | 480LM | 2835 |
LM-DL120*40-6W-R | 120*40 | 6W | 30 | 720LM | 2835 |
LM-DL145*40-9W-R | 145*40 | 9W | 45 | 1080LM | 2835 |
LM-DL170*40-12W-R | 170*40 | 12W | 60 | 1440LM | 2835 |
LM-DL 200*40-15W-R | 200*40 | 15W | 75 | 1800LM | 2835 |
LM-DL 225*40-18W-R | 225*40 | 18W | 90 | 2160LM | 2835 |
LM-DL 235*40-20W-R | 235*40 | 20W | 100 | 2400LM | 2835 |
LM-DL 300*40-24W-R | 300*40 | 24W | 120 | 2880LM | 2835 |
