Description:

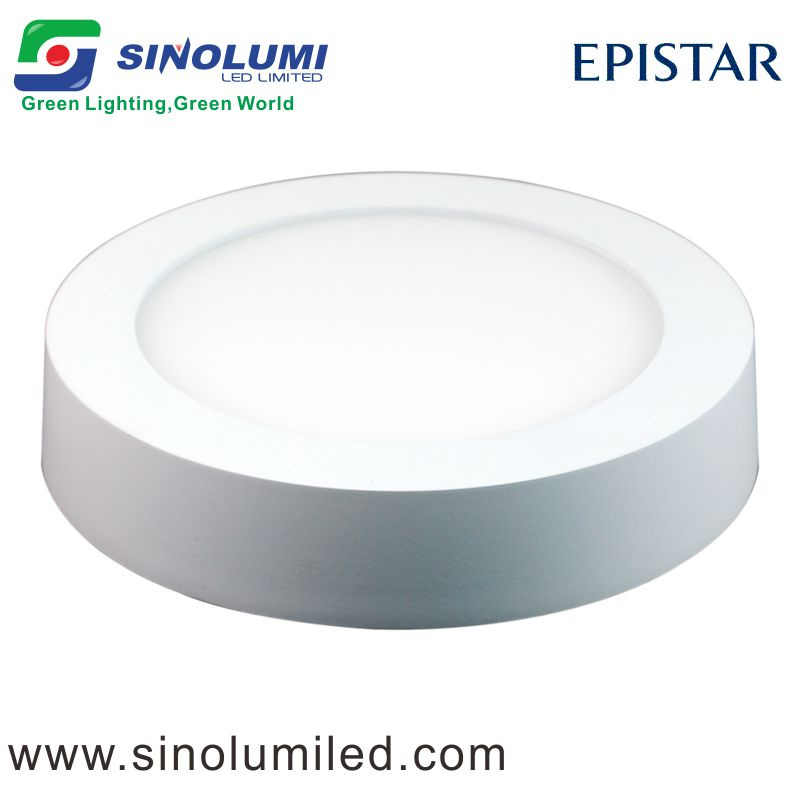

Sinolumi Surface Mounted LED Panel lights output high ambient light, which enable them to sufficiently replace existing general illumination lighting products. These LED panel lights use high output LEDs as light source. They are ideal to replace those ceiling downlight with recessed fixtures. Our surface mounted LED panel lights are ideal, energy efficient, aesthetic solution to fluorescents in any architectural application, including schools, hospitals and office spaces.
LED Panel Lights are a well-designed, lay-in ceiling fixtures. Our LED Panel Lights have an outstanding luminous efficacy achieved by ultra bright light source and high quality LGP. By mounting LED arrays at the side of the panel, it make the panel light emitting light more softly.
Our LED Panel down lights can save about 70% energy saving, with over 35,000 hrs long life span.
Features:
Special arrangement of LEDs together with superior light guide plate, which could make light beam looks bright, soft, even and comfortable;
The thermal design of LED panel light could decrease the luminous attenuation and prolong the life time.
Advanced designed constant current driver, which could ensure stable performance.
Start instant, no flicker, no sound, no glare.
CE, RoHS certificated.
80% energy saving which means 80% CO2 reduction
Easy installation, come with constant current driver.
High color rendering index
Good heat dissipation.
Drawings:
Order Information:
Model No.
LED Type
Color
CCT
Voltage
Power
Lumen
Beam Angle
CRI
Max. Current
SL-SMDY180WW48A4
SMD2835
Warm white
2800~3200K
AC100-240V
10W
630lm
120 degrees
>80
720mA
SL-SMDY180NW48A4
Natural white
3800~4200K
680lm
SL-SMDY180W48A4
white
5800~6200K
700lm
Package Information:
Absolute Maximum Rating:
10Pcs/Carton
Box Size: mm
Carton Size: 420*215*200mm
N.W: 7.2Kg G.W:8Kg
Aluminum Heat Sink Temperature: 53°C
Operating Temperature: -20~+40 °C
Storage Temperature: -20~+50 °C
Equilibrium Temperature: 58 °C
Installation Drawing:
Applications:
The surface mounted LED panel lights are widely used as general and decoration lighting, always equipped in offices, restaurants, conference rooms, factories, hotels, subway stations, commercial complexes, residential buildings, institution buildings, schools, colleges, hospitals, hallways and lobbies. If with color LEDs, our LED panel lights can be applied to dance halls, karaoke bars, clubs and other places of entertainment or for decorative purposes and so on.
