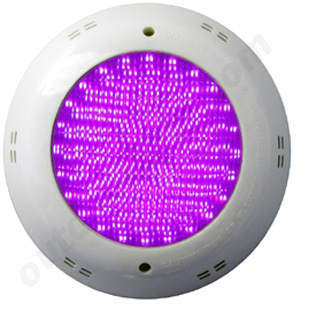

RGB Vinyl Pool Light, 18W LED Vinyl Pool Light,underwater lighting spec :
Specification | Parameters |
Model No. | LF-SPL-105S5-K2 |
LED Qty | 105 pcs SMD5050 |
Input Voltage | AC/DC 12-13V |
Frequency | 50/60 Hz |
Power | 18±1w (White) 17±1w(RGB) 13±1w (R) 18±1w(G) 18±1w(B) |
Color Temperature | w.w.3000-3500K p.w.6000-7000K c.w.8000-10000K |
Luminous Flux | P.W. 1200Lm±10% W.W.1100Lm±10% C.W.1000Lm±10% 320Lm±10%Lm (R) 730±10%Lm (G) 180±10%Lm (B) RGB: 410±10%Lm |
Color Rendering Index(CRI) | P.W.Ra≥70 |
Replace halogen | 100W |
Wave length(R/G/B) | R/G/B:620-630/515-525/ 460-470 nm |
Beam angle | 120° |
Dimension | 290*150.6mm |
Working temperature | 0~40ºC |
Storage Temperature | 0~50 ºC |
Constant driver | yes |
IP rating | IP68 |
RGB Vinyl Pool Light, 18W LED Vinyl Pool Light,underwater lighting features: 1.RGB synchronization with patented RGB controller
2.Size: 1) 290(diameter) * 150.6(height) mm
LF-SPL-18X3W-K2(RGB 3 IN 1 LED)/LF-SPL18X1W-K2/LF-SPL105S5-K2
LF-SPL-252D5-K2/LF-SPL-315D5-K2/ LF-SPL-20X1W-K2(SMD5730)
2) 250(diameter) * 135.5(height) mm
LF-SPL12W-K2(SMD5730)/ LF-SPL-12W-K2(SMD5050)
RGB Vinyl Pool Light, 18W LED Vinyl Pool Light,underwater lighting size:
RGB Vinyl Pool Light, 18W LED Vinyl Pool Light,underwater lighting Diagram:
RGB Vinyl Pool Light, 18W LED Vinyl Pool Light,underwater lighting application:
