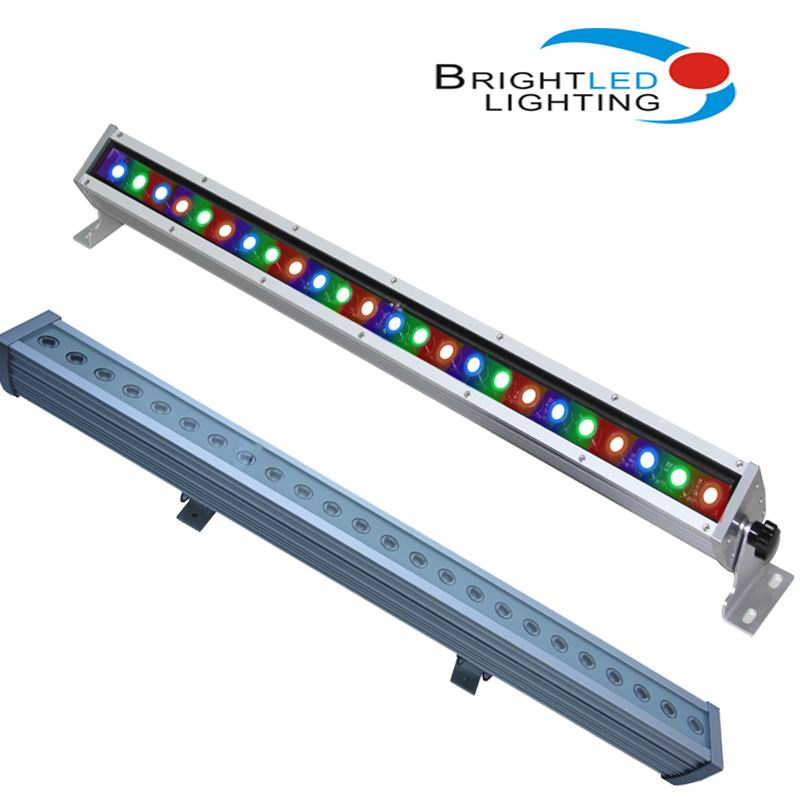

Name: LED Wall Washer/RGB LED Wall Washer/LED Bar Wall Light/LED Wall Washers
Type: BL-WS3A-30W
Light source: 30x1W Edison LED
Power: 30W
Color: R/G/B/Y/W or full color
16 million color in DMX RGB mode
Beam angle: 15° / 30° / 45° / 60° / 90° / 120° Symmetrical light distribution
Communication: DMX512 or DMX512A
Voltage: 90-264V AC
Optics: Optical grade PC collimator
Max throw distance: 20 meter max
Housing: Molded aluminum alloy with black powder coat finish
DMX capability: Built in DMX512 decoder
DMX connectors: 3 pin XLR male and female connector with 0.3m wire length
Auto program: 10 preset color changing programs, selectable by user
Ambient temperature: -20~40celsius
Humidity range: 0% to 95% non-condensing humidity
Life span: 50, 000hrs
IP grade: IP65
Dimension(L*W*H): 1020*75*160 mm
Weight: 4.9kg
|
Brightled wall washer light series |
|
Picture |
LEDchip |
LED Qty(pc) |
Power(w) |
Size(mm) |
Voltage |
Color |
View angle |
|
BL-WS3A48W |
Edison |
36 |
36 |
335*148*205 |
100-240v AC |
W/WW/CW/RGB |
15-60 |
|
BL-WS3A12W |
Edison |
12 |
12 |
500*75*160 |
|
BL-WS3A15W |
Edison |
15 |
15 |
620*75*160 |
|
BL-WS3A18W |
Edison |
18 |
18 |
740*75*160 |
|
BL-WS3A24W |
Edison |
24 |
24 |
1000*75*160 |
|
BL-WS3A30W |
Edison |
30 |
30 |
1240*75*160 |
|
BL-WS3A36W |
Edison |
36 |
36 |
1224*75*100 |
