RGB Indoor P3 Programmable Adversiting LED Display
| Indoor P3 Technical Specification |
| 1 | Pixel Configuration | 1 red +1 pure green +1 pure blue |
| 2 | Physics Distance Between Pixels | 3mm |
| 3 | Physics Pixel Density | 11,111 Pixel/m2 |
| 4 | Module Size (W x H) | 192mmx192mm |
| 5 | Physics Pixel / Module | 64x64=4096 |
| 6 | Cabinet Size (W x H x T) | 960mmx960mmx120mm |
| 7 | Physics Pixel / Cabinet | 320x320=102,400 |
| 8 | Cabinet Weight | 37kg |
| 9 | Cabinet Material | Cold Rolled Steel |
| 11 | Brightness | >1300cd/m2 |
| 12 | Viewing Distance | >3m |
| 13 | Power Consumption (W/m2) | MAX 800; Average 240 |
| 14 | Driver Mode | 1/16scan |
| 15 | Led Life | 100,000 hours |
| 16 | Supply Voltage | AC220V/50HZ; AC110V/60HZ |
| 17 | Operating Temperature | -20ºC~+40ºC |
| 18 | Operating Humidity | 10%-90% |
| 19 | Storage Temperature | -40ºC~+60ºC |
| 20 | Viewing Angle | Horizontal:120°; Vertical: 120° |
| 21 | Grey Scale | Red, green, blue each 16k |
| 22 | Display Colors | 4096 Billion |
| 23 | Refresh Rate | 300HZ-3000HZ adjustable |
| 24 | IP Rating | Front IP20 |
| 25 | Display Capability | Video, Graphic, Text, flash |
Product Features:
High quality:
Higher precision and seamless connection; No fan design, low noise. Modular design, CNC finishing display structure.
Good effect:
High refresh rate, HD video with vivid pictures.
Good uniformity:
Brightness difference within 10% between any two LEDs, to ensure the brightness and color uniformity of the display; Good uniformity in color solve the problem of mosaic well.
Advanced technology:
Advanced technology of production ensure the quality and lifetime of LED display; With a full range of anti-static measures, effectively reducing the damage to LED from the static, so as to control the death rate of LED five over one million each year.
Easy operation:
The products adopt popular video playing software to facilitate system operations.
Easy maintenance:
Ultra thin, super slim and hanging design make it easy and fast for assembling and disassembling.
Available range:

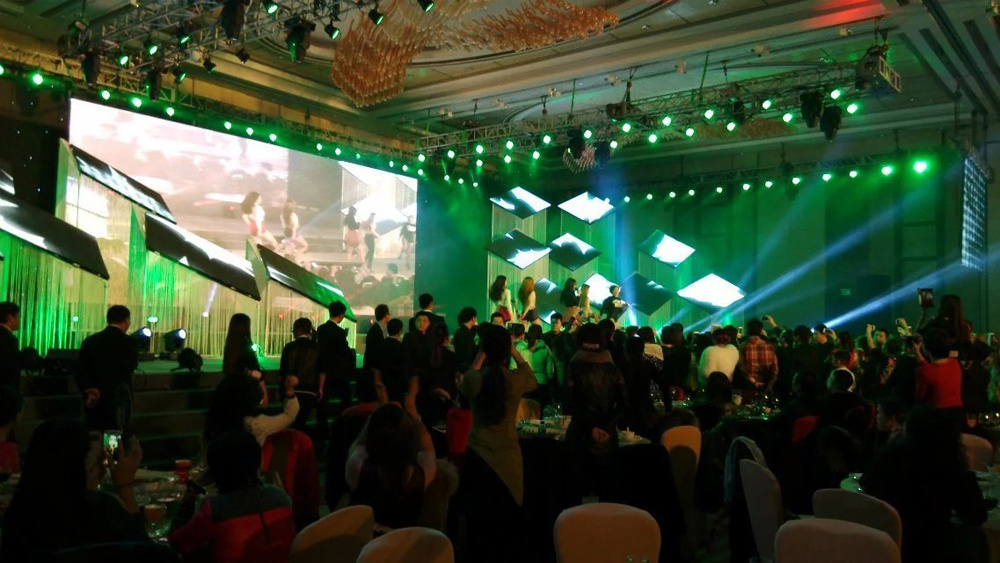

The indoor LED dispaly screen is extensively used in hotel lobbies, conference rooms and retail showrooms for product dispaly, indoor events and for the beautification of commercial as well as residental premises.
Pre-sales support
We offered technical advice to our customers before buying our products.
Help customers to choose suitable products within budget with most economy benefit.
Design the framework structure to install our led products with technical drawing.
We offered software customization for our customer's specific usage.
After- sales service
We promise our customers more than just two years warranty service.
We provide free maintenance services including remote configuration, technical consultation, and trouble shooting for our customer.
We promise a life time followup service for all the equipment supply by our company. These include continuously improve of system functions and upgrade of system software.
We offered training to our customer who includes operating and maintenance of our products.
Shenzhen Comcreating Co., Ltd is a professional enterprise engaged in the LED display system research, productionn, sale and service. Our main products include outdoor / indoor LED Display. More than 200 employees work in our company. 50 sets of advanced equipments including lastest automatic optic-electronic test system are furnished in product line. The output is more than 1000 sq. M/month.
Due to our highly skilled R&D staff and the newest technology, all of our products enjoying world-wide reputation for their precise quality, competitive price and the best service guarantee. OEMs/ODMs are welcomed.
Comcreating has provided more than 3000 LED display for over 86 countries and districts. We have builded a mutually beneficail relationship with our customers. In the coming days, we will be more strictly urge our team to offer you LED display with excellent quality, competitive price and better service. Wish we can work together with you to create a win-win relationship!
