RGB Color LED Car Light, Auto Flexible LED Strip Light
| Price: |
US $ 1/Piece |
| Trade Terms: |
FOB,CIF,CIP |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
LED Car Light Flexible 5050SMD LED Strip
Product Description
SUNWAY's LED strips are made of various High Quality LEDs, which include SMD5050, SMD3528, SMD3014, SMD2835, SMD5630, SMD335 and WS2812 with CRI80 and SDCM<6, will be able to meet NEW ERP Standard very well. Using good quality FPCB composed by high-class copper makes strips' light efficiency reach 95LM/W. Driven by 12VDC or 24VDC which makes sure products safe to human being bodies and easy for installation. Strips also could friendly work with LED remote controllers and dimmers, colorful environment will be created once and for ever.
Nano Waterproof Available for All SUNWAY's Strips
Product Features
1. Flexible PCB material easy to bend applys to various shapes' surface installation.
2. High power input voltage design available for 110VAC and 220VAC.
3. Protection class could be formed by IP65, IP67, IP68 over IP20.
4. Long working life-span theoretically reach 50,000hours.
5. Flexible PCB could be coated in white, yellow and black.
6. Widely optional emitting colors White, Red, Green, Blue, Orange, Yellow, Purple, Pink, Ice-blue, Ultraviolet, Infrared.
Technical Parameters
1. Input Voltage: 12VDC
2. LED Type: SMD5050 RGB
3. LEDs Per Meter: 60
4. Lumen: 20-24Lm/LED
5: Power Consumption: 14.4W/M
6. PCB Width: 10mm
7. Emitting Color: RGB
8. Woring with Controller and Amplifer
Product Series
Part Number
Voltage
LED Type
LEDs/M
Power
PCB Width
SW-FLS5050-30
12VDC
SMD5050
30
7.2W/M
10mm
SW-FLS5050-30
24VDC
SMD5050
30
7.2W/M
10mm
SW-FLS5050-60
12VDC
SMD5050
60
14.4W/M
10mm
SW-FLS5050-60
24VDC
SMD5050
60
14.4W/M
10mm
SW-FLS5050-120
24VDC
SMD5050
120
28.8W/M
16mm
SW-FLS3528-60
12VDC
SMD3528
60
4.8W/M
8mm
SW-FLS3528-60
24VDC
SMD3528
60
4.8W/M
8mm
SW-FLS3528-120
12VDC
SMD3528
120
9.6W/M
8mm
SW-FLS3528-120
24VDC
SMD3528
120
9.6W/M
8mm
SW-FLS5050RGBW-30
12VDC
RGBW
30
9.6W/M
12mm
SW-FLS5050RGBW-120
12VDC
RGBW
120
38.4W/M
12mm
SW-FLS3527-60
12VDC
SMD3527
60
9.6W/M
10mm
SW-FLS3527-120
12VDC
SMD3527
120
38.4W/M
10mm
SW-FLS5630-30
12VDC
SMD5630
30
9.6W/M
10mm
SW-FLS5630-72
12VDC
SMD5630
72
23W/M
10mm
SW-FLS3014-60
12VDC
SMD3014
60
7.2W/M
8mm
SW-FLS3014-120
12VDC
SMD3014
120
14.4W/M
8mm
SW-FLS2835-60
12VDC
SMD2835
60
12W/M
8mm
SW-FLS2835-120
12VDC
SMD2835
120
24W/M
10mm
SW-FLS5050WS30
5VDC
WS2812
30
9W/M
12mm
SW-FLS5050WS144
5VDC
WS2812
144
43W/M
12mm
SW-FLS5050WS30
5VDC
WS2811
30
7.2W/M
12mm
SW-FLS5050WS30
5VDC
6803IC
30
7.2W/M
12mm
SW-FLS5050WS30
5VDC
1903IC
30
7.2W/M
12mm

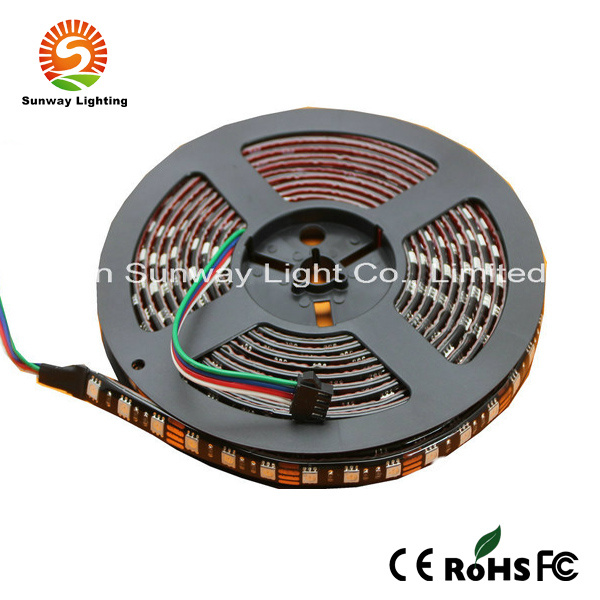

Product Picture
Product Application
1. Walkway lighting
2. Architectural decorative lighting
3. Stairway lighting & decorating
4. DIY lights for home use
5. Path and contour marking
6. Decorative lights for holiday, event, show, exhibition.
7.Car/motorcycle/boat/bike/jeep/truck/TUV auto modify decoration
Our strips could also be widely used for hotel edge decoration, five star hotel lobbies, meeting rooms, advertisement signages, underwater decoration.
Installation Attention
1. Effective power for switch power is only 85% of power's label, so LED product's load power should be at least more than 15% when user choose feeding power.
2. Make sure the right and stable anode and cathode when installing cables, and also attention to the driving voltage in case to damage components and fire accident when circuit pass through voltage.
3. Forbidden to connect cables when power on, putting power in cool place, so that it ensures appropriate working temperature.
4. Make sure strip's grade of waterproof.To install suitable conditions in accordance with practical IP.
5. This product is allowed to connect only 10PCS(0.5M/PCS)in seires wound. 2V differential voltage for the beginning and the end.
6. This user manual is only applicable for our product.
7. If it is Crystal Glue, please don't crook 30 degree, otherwise, it easly happens glue cracking.
