Rental indoor and outdoor led billboard, Indoor die casting led display

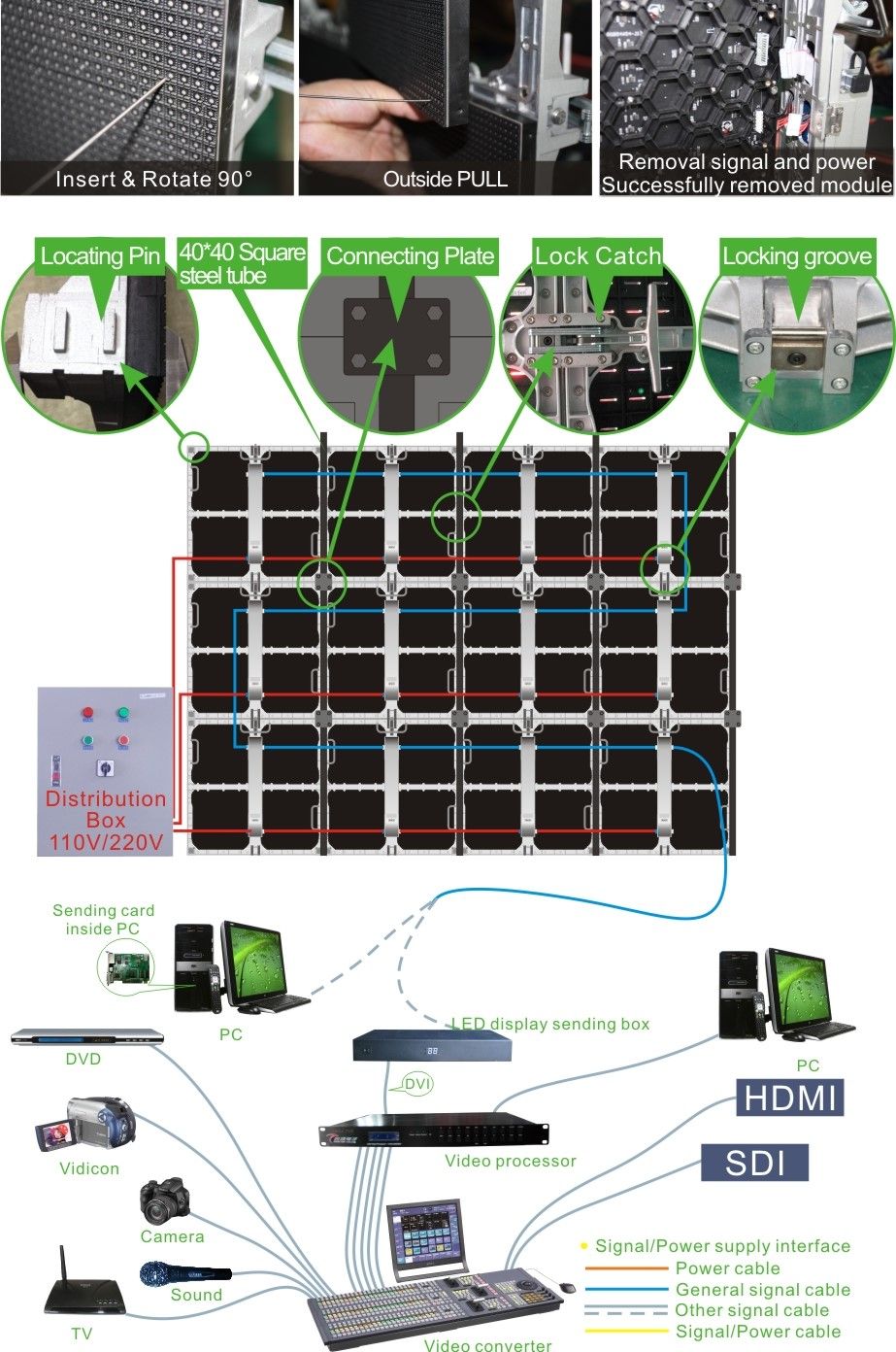

Module features:
1, can be front or rear maintenance,
2,applible for front service because of the magnet design on the module, much easier for module repairing\disasembly work;
3,unique honeycomb design with high precision,much stable and fla.

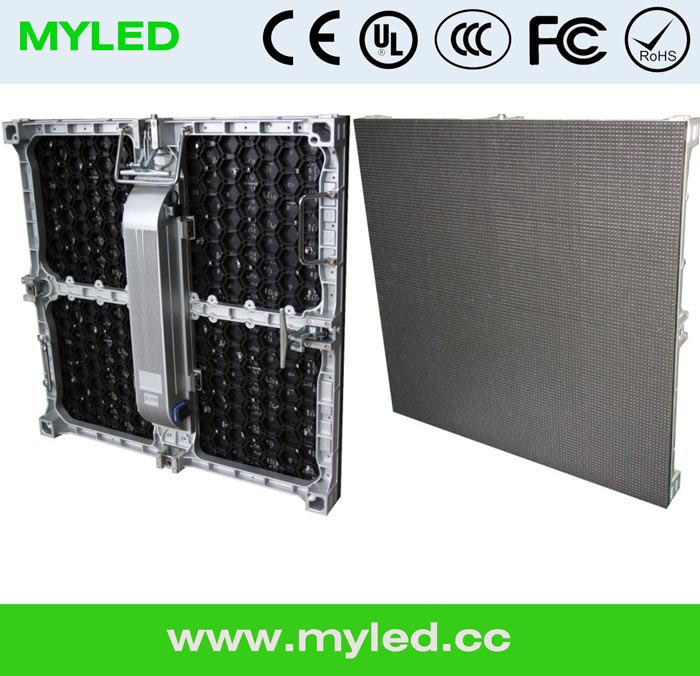

Cabinet features:
1,Thermal-conductive & noiseless power supply.
2,Fast lock system-80% higher efficiency in installation.
3,Die-casting aluminum cabinet: High precision and less weight.

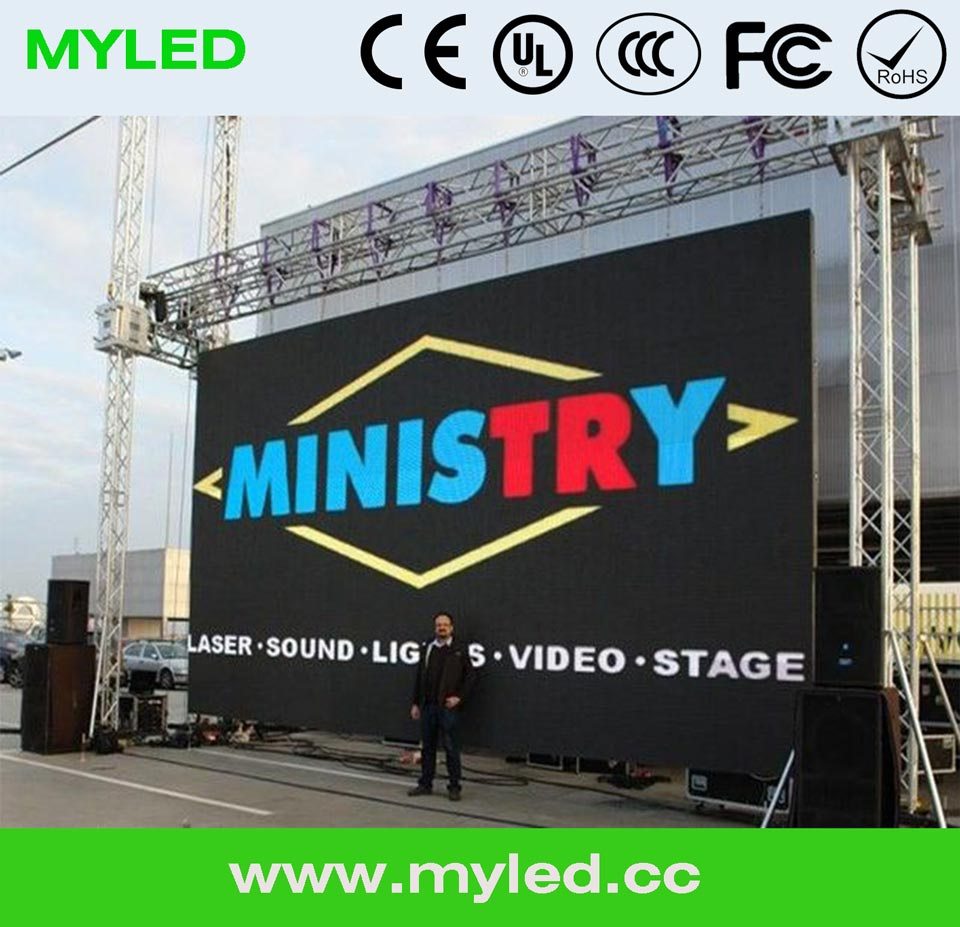

4,Applicable for either fixed or rental/hang application, fast and easy set up and tear down, widely accepted for stage rental business.
5,Available pitch: P5.33, P5.926, P6.67, P8, P10.
| Module Parameter | Item | Specification Parameter |
| Pixel Pitch,Resolution rate,size | 5mm,64*64,320*320*17mm |
Pixel color, Pixel LED
| 1R1G1B, SMD3528 |
| Working voltage,Module Power | DC4.5V,45W
|
| Driving IC,Driving way | JXI5020B,1/16 |
| HUB | QP640X640ZL-HUB44-V1.0 |
| Cabinet Parameter | Material,Cabinet Weight(kg/Cabinet) | Cast aluminum,11.5kg/Cabinet |
| Resolution rate,size,Module quantity | 128*128,640*640*97mm,2X2 |
| Density | 40000/ |
| White balance ,Color temperature | ≥1000 CD/,6500K-8000K |
| view angel,Non-Flatness,Module interval | H:120°;V:120°,<0.5mm,<0.5mm |
| Maximal power/,Average power/ | 550W/,200W/ |
| Frame frequency,Refresh frequency,Gray grade | 60Hz,1920Hz,13bit |
| Control system,System supports | Novastar / Linsn /,Windows XP,WIN 7, |
| Working temperature,Protection grade | -10ºC - +40ºC,Front/Back:IP30/IP30 |

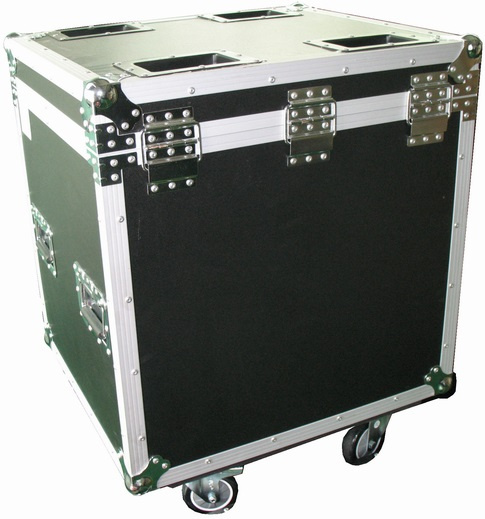

Packing case
