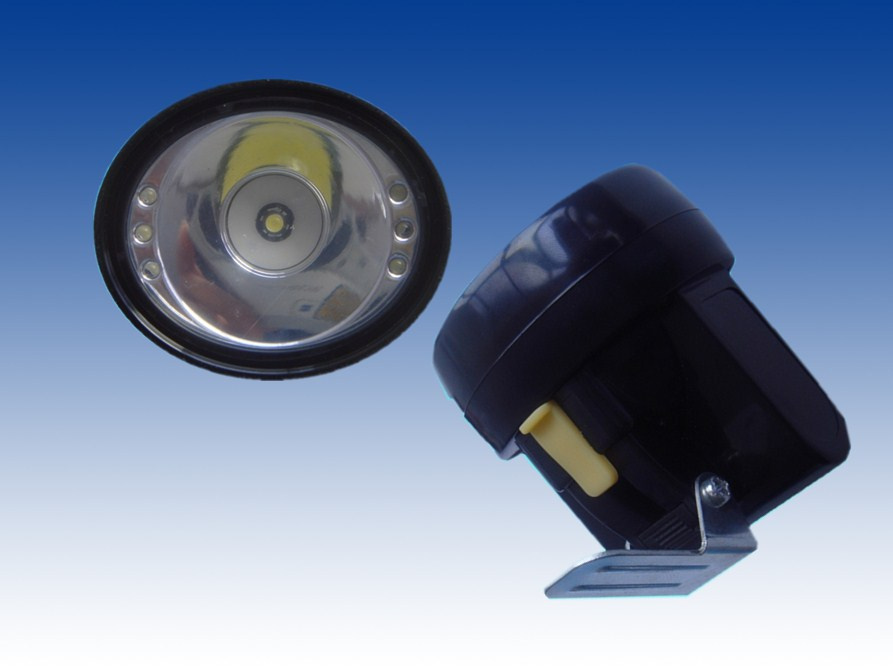

LED coal miners headlamp ZH-T4W001
Descriptions
It adopts energy saving circuit, one 1W high-power LED main light source, six low-power LED accessorial light source. Safety lithium-ion battery integral design has many good characteristics, small volume, light weight, free maintenance, explosion- proof, waterproof, anti-knock and long lifetime. Run time underfully charged can be over 14hrs main lighting, over 24hrs for accessorial lighting. It can be fixed on Miner's hat, it is environmental friendly which has the patent of high technology product.
Specifications of LED coal miners headlamp:
Lighting Current 150mA
Accessorial Lihgting Current 60mA
Main Lighting Voltage 3.0-3.4V
Accessorial Lihgting Voltage 3.0-3.4V
CCT: 5500-6000k
4000-5000k
3000-4000k
Illumination: 1200-3200lux
Working Temperature: -20-40degree
CRI: Ra80
Charger AC input: AC110-240V
DC output: DC4.2V, 0.5A
Working frequency: 50-60Hz
Lithium-ion battery: 2.8AH
Working time: >11h
Charging time: 6h
Battery circular-using life: >1000 time
Life time: 20.000Hrs
IP degree: IP65
Pack size: 495*345*340mm
N. W: 0.204kg
G. W: 13.31kg
Qty: 45PCS/CTN
Application of LED coal miners headlamp:
It is suitable for mine working, hiking, railroad and navigation.
Instructions Keyswitch: Press the switch once, turn the main illuminant on Pressagain, turn it Off, once more press, turn the accessorial illuminant on, press it one more time, turn it off Successive cycles Charging: Open the plug hole, and then put the Charger plug in it
Keyswitch: Press the switch once, turn the main
Illuminant on Pressagain, turn it
Off, once more press, turn the
Accessorial illuminant on, press it
One more time, turn it off
Successive cycles
Charging: Open the plughole, and then put the
Charger plug in it
Mode No |
Light Souree Type |
Main Lighting Current |
Accessorial Lihgting Current |
Main Lighting Voltage |
Accessorial Lihgting Voltage |
CCT |
3M
Illumination |
|
ZH-T4W001 |
COB |
150mA |
60mA |
3.0-3.4V |
3.0-3.4V |
5500-6000k
4000-5000k
3000-4000k |
1200-3200lux |
