IS LED Panel Light - Rectangle Shape - 11mm/12.5mm Thickness
600mm*300mm -- 18W/36W
1200mm*300mm -- 36W/48W/54W/72W
1200mm*600mm -- 72W

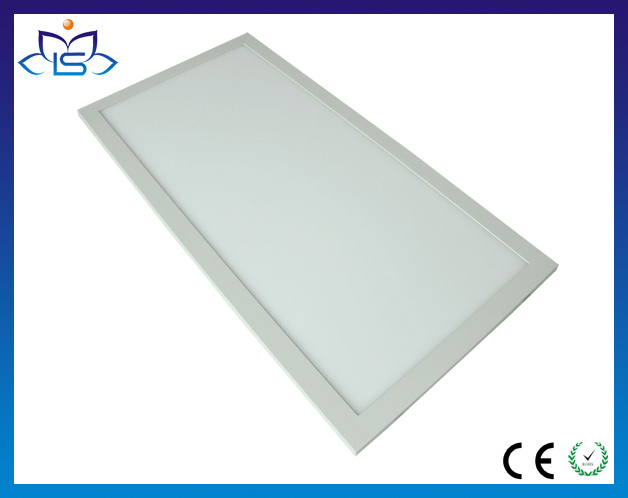

Product Name: Recessed Installation 18W LED Panel Lights
Power: 18W
Size: 600*300*12.5mm
Lumen: 2700lm
CRI: 80+
Certification: CE RoHS UL TUV PSE
Warranty: 3 Years
Feature:
<-> High quality high thermal conductivity aluminum plate, good performance on heat dissipation
<-> Samsung Chipset, make sure the good lighting source of the light
<-> Meanwell driver, ensure the good performance for the light
<-> Wide voltage input, swift start, no flicker, no dazzle and no tingle
<-> CRI 85+, reflect the real color of objects
<-> Wide voltage design, easy for different needs
<-> More than 12 install ways, suitable for different application
---------------------------> IS Lighting Co., Ltd <------------------------------
Application:
<-> Residential Lighting - Bedroom, Study, Sitting Room, Dining Hall
<-> Commercial Lighting -- School, Office, Hotel, Restaurant, Hospital
<-> Industrial Lighting -- Factory, Cleanroom
---------------------------> IS Lighting Co., Ltd <------------------------------
Service:
<-> In time inquiry reply
<-> Fixable delivery
<-> Good after-sale service
| Name | LED Panel Light |
| Lighting Source | SMD5630 |
| LED Chip Brand | Samsung/Seoul/Epistar |
| LED Quantity | 60/120pcs |
| Driver Brand | UL External Constant-Current Driver |
| Power Consumption | 18W/36W |
| Input Voltage | AC100-277V |
| Working Voltage | 30-42V |
| Constant Current | 450MA/900MA |
| LED Luminous Efficiency | 70+5lm/w |
| Power Factor | >0.95 |
| LED Life Expectancy | 50000hours |
| Beam Angle | 120° |
| Luminous Flux | 1400+200lm/2700+200lm |
| Color Temperature | WW/NW/CW |
| Protection Grade(IP) | Ip20 |
| Color Rendering Index(Ra) | >80 |
| Temperature Rising | Pass according to En60598 |
| Operation Temperature | -10°~40° |
| Relative Humidity | Pass according to En60598 |
| Fixture Material | Junction Box, Hanglig Cable, Screws |
| Cover Brand | Al 6063 |
| Housing Color | Silver/White |
| Dimension/Size | 300x600x11mm/300x600x12.5mm |
| Net Weight | 2Kg |
| Shock Test | 0.35-0.5Nm |
| Insulation Class | ClassII |
| Certification | TUV/CE/FCC/PSE/RoHS |
| Warranty | 3years |
"IS Lighting" is a factory Doing OEM, ODM with 200-300 workers since 2009, we specilized in LED panel, LED tube, LED bulb, LED spotlight, LED PAR light, LED downlight, LED track light, LED cornlight, LED floodlight and LED high-bay etc with UL, cUL, DLC, RCM, TUV-SUD CB, GS, CE RoHS.
We have grown based on a global resource for Korea, Europe market, Amercia Market to a specialty manufacturer for world class projectors, designers, developers, trading companies and wholeselers who specify our products for everything from retail stores and warehouse to high-rise hotels, chain restaurants, private homes, specialty museums, buildings and office.
Our products have always been known for quality, reliability and solid
Performance, making IS Lighting the most specified brand in the lighting business.
The mission of IS Lighting is to be the leading provider of innovative, high quality lighting to commercial, municipal and utility markets.
Our goal, like yours, has always been the same: "Doing a fruitful business"
We are a partner who is trustworthy.
Do remember we are producing "a valuable product" instead of "a top-end quality with highest price or a cheapest price with low quality product for the globle market.
Let's move forward together! ! !
We Are Your LED Lighting Supplier.
Wir sind Ihre LED Beleuchte Liferant
Nous sommes des fournisseurs d'é Clairage LED
