√ 10 Years == √ Factory == √ Own Exporting License == √ Quality Control == √ Competitive Price == √ Own Technology == √ OEM==Short Delivery Time
Main Compositions
1) LED unit module
The quality of LED module directly affects display effect.
2) Frame or Cabinet
Aluminum Frame or steel cabinet is used to hold up modules.
3) Power supply
Usually use switch power supply
Input 220V and Output 5V DC
4) Control Card
We recommend using most suitable control card.
Asynchronous control, no need to connect to PC.
5) Cables
Data cable, transmitting cable and power cable
Data cable is used to connect control card with LED modules.
Transmitting cable is used to connect control card with computer.
Power cable is used to connect power supply with LED module and control card.
Questions you might have
1) Why it can support all the languages?
R: If you can type the language, the sign can read the data and display it. It's just that simple.
2) How to use the software to display the information I want?
R: Using guidance can be sent to you or I can teach you how to use step by step.
3) If I want wireless, 3G control, how can it be done?
R: it only needs adding a wireless module or 3G module on control card. It's just that simple.
Brief Company Introduction
1) Company name: Brilliantopto Limited Company
2) Foundation year: 2005, more than 10 years history
3) Strength rank: top 3 among same-grade manufacturers in China
4) Registered capital: USD 3.5 million
5) Workshop area: 20,000 square meters (Headquarter & branch factory)
Products Available
1) All-series product type: indoor / outdoor / semi-outdoor - single / dual / full color
2) Pixel pitch for indoor: P1.9 /P2.5 /P3 /P4 /P5 /P6 /P7.62 /P8 /P10
Pixel pitch for outdoor: P6 /P8 /P10 /P12 /P12.5 /P13.33 /P16 /P20 /P25
3) LED lamp chip: Opto, Epistar, Silan, Huacan, San'an
4) Cabinet type: steel cabinet, aluminum cabinet & die-casting cabinet
5) Package: Flight case, wooden box package & carton box and etc.
Our Service
1) Enquiry response time: within 12hrs.
2) OEM&ODM: design and produce your customized requirements.
3) Provide distributors customized design and models we already have.
4) Protect your sales area, design idea and all your private information.
5) Top quality + reasonable price + patient after-sales service.
6) Brilliantopto can also offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and LED large screen full color display.
Trade Terms
1) Package: anti-shaking wooden package, air flight case or carton package.
2) Payment: T/T, 30% deposit before production, 70% balance to be paid before delivery.
3) Free to support and train your operator.
4) Shipping port: Xiamen Port, China.
5) Warranty time: 2 year
6) Delivery time: 2-14 working days.

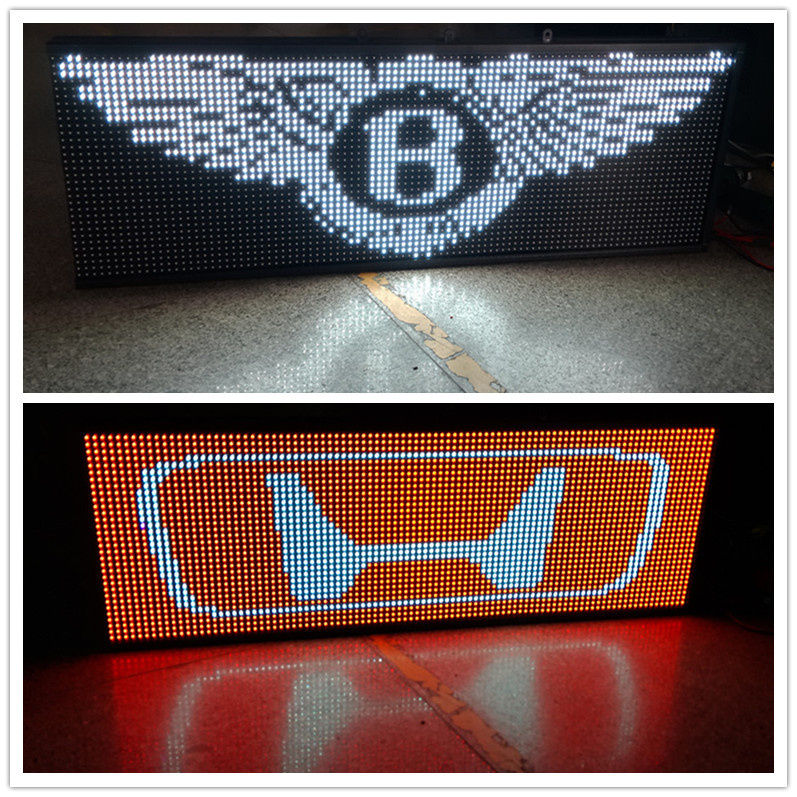

LED Sign Display Board Specifications
| Brand Name | Brilliantopto |
| Pixel Pitch | 10mm |
| Module Resolution | 32*16 |
| Module Dimension | 320mm*160mm |
| LED Encapsulation | SMD3528 1R1G1B |
| Input Voltage | 4.8-5.5V |
| Brightness | >1000cd/sqm |
| Horizontal Viewing Angle | 120 Degree |
| Vertical Viewing Angle | 120 Degree |
| Application Environment | Indoor |
| Driving IC | MBI (JXI5020GP) |
| Driving Mode | 8S Constant Current |
| Gray Scale | 256 Level |
| Display Function | Moving text & message |
| Frame Frequency | >60Hz |
| Refresh Frequency | >720Hz |
| Avg. Power Consumption | 297w/sqm |
| Max. Power Consumption | 420w/sqm |
Jingcai (Fujian) Photoelectric Co., Ltd. Was founded in 2005, with a registered capital of 20.18 million Yuan, a workshop covering an area of 20000 square meters and independent living and production places. Our company is professional in the development and manufacture of LED display systems. Our company technology strength is among the front row in this area, with a vigorous team.
In March, 2011, our company independently researched and developed a full-color formal P16 LED display, which can completely replace the current market single color LED displays, being the perfect choice in the next line of LED display market. In June, 2011, after designing P10 optical modules, we ceremoniously rolled out P10 light module series, which can effectively enhance the efficacy by above 10% and can effectively avoid a screen phenomenon. In August, 2011, our company took the lead in Quanzhou LED industry technology innovation strategy alliance. As the President unit, our company set up "Quanzhou LED Technology Research Center", featuring the national quality supervision center. Our company has many experts and professors from Xiamen University Semiconductor Research Center, Fuzhou University and Beijing University Institute of Photoelectricity for our research center technology consultation to comprehensively promote Quanzhou LED industry. In November, 2011, relying on our strong technical research and development team, we made a new generation of international leading 3D display screens.
Through six years of unremitting efforts, our company has successively obtained such honorary titles as The State Ministry Of Small-Sized And Medium-Sized Enterprise Technology Innovation Fund Project Unit, Small-Sized And Medium-Sized Enterprise In Fujian Province Technology Innovation Fund Project Unit, ISO9001 International Quality Management System Authentication Enterprise, CCC China National Mandatory Product Certification Enterprise, CE Compulsory Product Certification Enterprise, FCC Anti-Radiation Product Authentication Enterprise, RoHS Lead-Free Environmental Protection Product Authentication Enterprise, IP65 Waterproof and Dustproof Product Authentication Enterprise, Chinese Optical Optoelectronic Industry Member Unit, National Taxpayer Service Work Outstanding Member Unit, Unit With 15 Independent Research And Development Patents Of The State Intellectual Property Office, Fujian Quality And Right Protection Service (Member) Unit, Fujian Integrity And Labor Advocate Unit, Quanzhou Industry And Commerce Credit Good Enterprise, Quanzhou Creditable Unit, Quanzhou LED Technology Research Center and Quanzhou LED Industry Technology Innovation Strategy Alliance Chairman Unit.
Our company always implements our development target and insists on the tenet of "customers are the growing power source". Our company has a perfect after-sales service system, truly realizing that customers are the centers of the market marketing model.
Through our efforts, our products have been sold well in Europe, North America, Australia, the Middle East and Southeast Asia. Our company has set up stable sales agents in the corresponding areas. Our company sincerely hope to cooperate with LED display system talents and dealers for common development and for the development of LED display systems.
