Home LED Light Products Professional Supplier of LED High Bay Light

Professional Supplier of LED High Bay Light

Professional Supplier of LED High Bay Light
Price: Negotiable/Piece
Trade Terms: FOB,EXW,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal

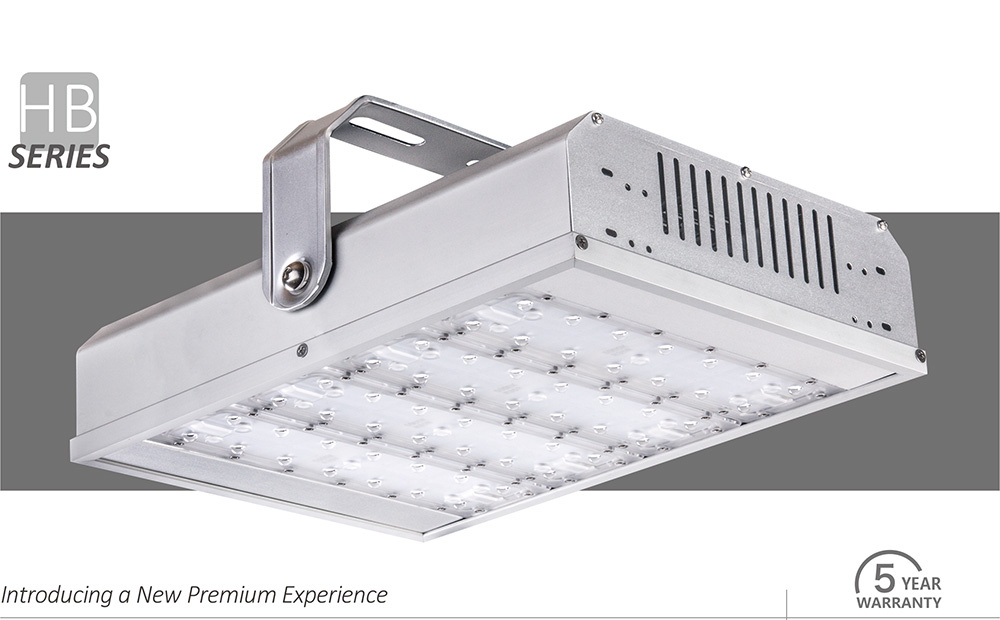

HB-Series LED High Bay Light with Favorable Price:

Major advantages:

a). High Reliable MEANWELL led driver; PHILIPS LUXEON® T leds.

b). Available for 60°, 90° and 110° beam angle.
c). Adjustable mounting bracket.

d). IK10&IP66.

e). SAA, CE, RoHS, CB, GS, UL certificated.
f). 5 years Warranty.
g).The price is much more competitive...


Specifications

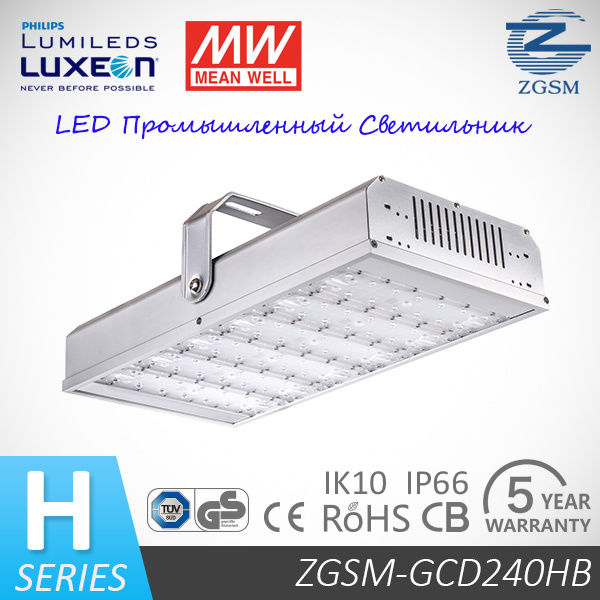

ModelZGSM-GCD240HB
LED BrandPhilips LUXEON® T
Driver BrandMeanwell HLG series
Norminal Wattage240W
LED Module Quantity6 modules
Input Voltage100-240/277V/347V/480V AC
Power Efficiency>90%
Power Factor>0.95
Lamp Rated Luminous Efficiency>100lm/w
Lamp Rated Lumen output24, 000  lm (Lumen tolerance +/- 5%)
Color Rendering IndexRa>70
Color Temperature4000 5000 or 5700K
Photometric Type60,90,110 degrees
Optimal Operating Temperature25ºC
Storage Temperatures'-40ºC~+70ºC
Working EnvironmentBetween-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion< 10%
Lumen Maintenance> 60000 hours -L70, @25 ºC (77 ºF)
Body and Shell MaterialsAnodized Aluminum
IP RatingIP66 with test report
IK RatingIK10 with test report
CertificationUL,DLC,SAA,CE,ROHS,GS,CB
Optional Function1-10V DC or PWM Signal or Resistance Dimming
Timer/Photocell Control
Warranty5 years

Packing Details
Fixture Dimension531 x270 x373 mm
Fixture Weight7.1kg /15.7lbs
Packing Dimension650 x370 x200 mm
Packing Weight8.1 kg /17.9 lbs

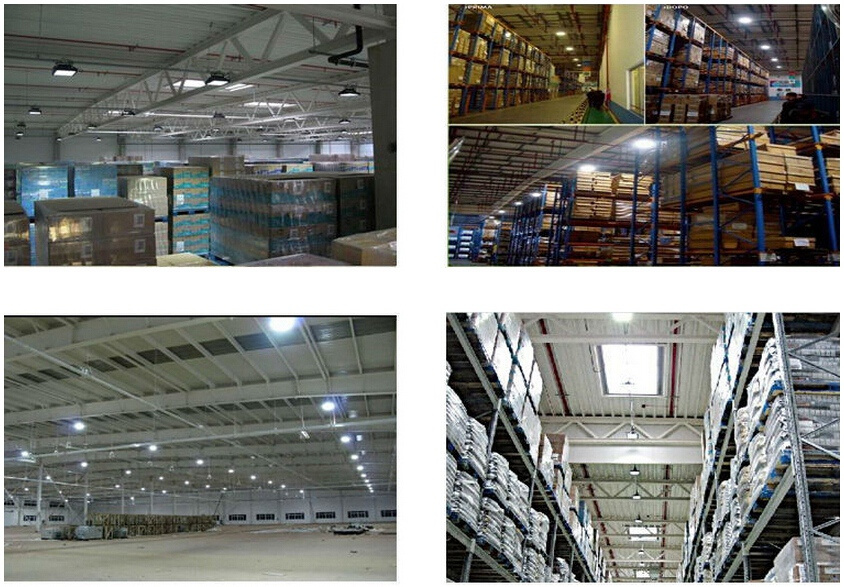

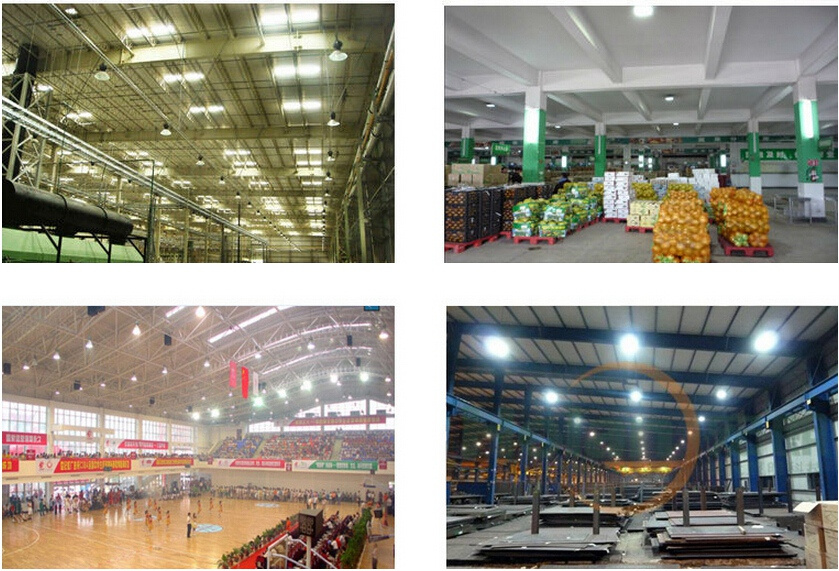

Application:


Prod Model: ZGSM-GCD240HB
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Norminal Voltage: AC 100-240V/277V, 50/60Hz
Maximum Current: AC 0.41A-120V, 0.21A-240V, 0.18A-277V
Operating Temperature: -40 to 50
Power Factor: More Than 0.9
Driver Efficiency: More Than 90%
Lumen Output: 20, 000 Lm (+/-5%)
CRI: More Than 70
Heat Raditor: Anodized Aluminum
Ik: 10
Lens: Clear PC
Lamp Body Material: Aluminum Alloy
IP Rating: IP66
Certification: CB
Color Temperature: 4000k, 5000k, 5700k
Color: Silver
Power: 240 W
Lifespan: More Than 100, 000 Hours
Beam Angle: 60, 90, 110
Welcome to ZGSM. For over 8 years, ZGSM has been dedicated to creating a better quality, eco-friendly, efficient lighting environment through diverse businesses of LED lighting, LED traffic signal, solar LED lighting system and more.

Company Information

Founded in 2005, Hangzhou ZGSM Technology Co., Ltd is located in Linglong Industrial Park, the west of Hangzhou. ZGSM is a hi-tech and privated Enterprise devoted to R&D, producing and selling of high quality LED Street lights, LED high Bay Lights, LED Canopy Lights, LED Gas Station Lights, LED Tunnel Lights, LED Tube Lights, LED Traffic Light and Solar Street Light and so on. As one of the patent model enterprises and the first batch of saving energy seriveice company in Zhejiang Province, we have registered more than fifty products; We are also the members of Illuminating Engineering Society and Semiconductor Industry Association in China.

ZGSM Research

ZGSM boasts a standard production line, import and export priority and the expertise of management, development, manufacturing and marketing team. Our products covers "LED street lights, LED high bay lights, LED gas station lights, LED Canopy Lights, LED Flood Lights, LED tunnel lights, LED tube lights and; LED traffic lights; Solar LED street lights systems. Our products take the advantage of energy saving, environmental friendly, long life and so on. Been widely used in indoor/outdoor lighting, city lighting, traffic instruction, solar power generation projects and other fields.

Customer and Partner Experience

ZGSM has passed ISO9001 and ISO14001 international quality and environmental management system certificates. And all the products has passed CE, RoHS, CB, GS, UL, DLC, LM-79, LM-80 etc. Our D&R center is cooperating with many research institutes at domestic and abroad to develop the projects to provide customers with high-efficient, energy-saving, eco-friendly products and technical services. At present, our products have been exported to more than 100 countries and regions. ZGSM owns distribution network and after-sales service in 30 provincial capital and listed cities in China. We also have participated many important constructive projects over the world, and gained high praise from our customers.

Our Values

Through innovative, reliable products and services; Talented people; A responsible approach to business and global citizenship; And collaboration with our partners and customers, ZGSM is taking the world in a premium lighting experience.
