Home LED Light Products Professional Manufacturer Indoor P12.5 Dream Mesh LED Advertising Display

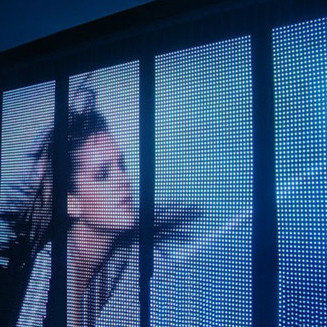

Professional Manufacturer Indoor P12.5 Dream Mesh LED Advertising Display

Professional Manufacturer Indoor P12.5 Dream Mesh LED Advertising Display
Price: US $ 550-800/Square Meter
Trade Terms: FOB,CIF,DDP
Min Order: 1/Square Meter
Pay Type: T/T

Strip mesh cabinet led screen

specification:

Part Number

HERO-IDS4F-8S

Resolution

16(H)×32(V)

Pixel Pitch

12.5mm

LED Configuration

SMD3528

Pixel Density1024

6400dots/m2

Module Size

200*400mm

Driving IC

MBI5024

Driving Method

Static Constant Current

Cabinet Weight

35kg/m2

Mechanical Ratings

Hanging Weight Support

2T

Surface Flatness

Gap<0.5mm

Optical Ratings

Brightness

>800CD/m2

View Angle

Horizontal140°/Vertica140°

Gray Scale

8bits input, correction with 16bits

Display COLOR

16.7M

Brightness Adjustment

0~100%

Power Supply

Operation Power

90~260V 50~60Hz

Max. Power Consumption

200W/m2

Average Power Consumption

80W/m2

Control System

Control Mode

Synchronous display with control PC by DVI

Frame Update Frequency

60~85Hz

Screen Refresh Frequency

300~1000Hz

Gamma Correction

-5.0~+5.0

Support Input

Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI

Control Distance

Ethernet cable<120m or Fiber Optic<10Km

Support VGA Mode

1024×768, 1280×1024, 1600×1200, 1920×1280

Brightness Correction

Pixel, Module, Cabinet

Environmental

Operating Temperature

-20°~+60°

Operating Humidity

10~95% RH

Operating Life

100,000hours

MTBF

5000hours

Protection Level

~

Out of Control Rate

<0.02%


Description:
1.Good visualization
Glassbased design allows the light to pass through the glass without any influence to the building structure around.Transparency of the glass screen can up to 85%.
2.Ultra-thin, and ultra-light.
The thick can up to 1cm, and the weight can up to 7kg/m2
High brightness, and high definition.
The brightness can up to 8500 cd/m2.
4.Easy and convenient maintenance.
It can be maintained from inside, safer and more convenient.
5.Saving lighting costs of the whole building.
Besides good advertising effect, LED glass display also helps lighting the glass wall, thus makes the glass wall more attractive and saving a lot lighting cost.
6.Wide use range.
Wherever the glass wall is, glass LED display can be installed. Such as bank, supermarket, theater, business street, hotel, public civic buildings, and landmark buildings, etc.

Applications:
Widely used in glass curtain wall places, such as banks, shopping malls, theaters, commercial streets, stores, hotels, municipal public buildings, landmarks and other advertising.


Packing and transportation

Professional packaging:wooden box or flight case.
The way of Packing can prevent the collision of LED screen effectively in the process of transportation, such as falling damage,etc.
Faultlessly solve your worries in the transportation.



About Hero

8-year's experience in LED screen, our factory has the ability of processing, researching and developing led display to ensure the prolificacy.A strict quality control process to make sure the led display screens is with high quality.

After-sale service
1) Warranty:
Free to solve the quality problems to ensure that equipment normal operation in the warranty period . At any time, we bear all the responsibility, when the problem is from the product itself.
2) Free maintenance:
Free warranty in the warranty period.
Only charge the cost of raw materials, provide spare parts and maintenance services for the lowest price after the warranty period.
3)quick response:
Response within 2 hours, non-artificial, general fault solution within 24 hours, and acceptable failure resolved within 48 hours.
4) Free support:
Through telephone or network to provide service support in real time, or with the help of a network for remote debugging support (software), to solve the problem.

For more led information about led display moudle with high performance  ,welcome to our officer website:http://www.led-hero.com
Prod Model: P12.5
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Lifespan: 100,000hours
Warranty: 2 Years
Factory Price: Available
Display Type: LED Video Display
Tube Chip Color: Full Color
Display Function: Video Display
Scanning Mode: 1/8 Scan
Certification: ETL
Pixel Configuration: 1R,1G,1B
Application: Stage Performance
IP Rating: IP43
Pixel Pitch: 12.5mm
Pixel Density: 6400 Dots/Sq.M
System Operating Platform: Win 7, Winxp, Win98
Shenzhen LED-HERO Electronic Telechnology Co., Ltd was found in early 2007. Hero committed to the next generation of LED optoelectronic products development, production, sales and service. It is leading the trend of LED industry and providing a full range of solutions to its customers. It has become a modern, large scale, professional LED Photoelectric comprehensive product integration supplier. The products sell well in over 50 countries and regions in Europe, America and Middle East, besides more than 20 provinces across China.

"Hero' S products and solutions include various of indoor and outdoor LED display screen and lighting products with its advanced technology, superior technology design, personalized design elements, large-scale production capacity and diversified cooperation strategy to provide full LED integrated solutions.

"Beat by wisdom, win in morals"is still our insistent faith, Quality is the life of a company. From material purchasing to product researching, development, production, testing, packaging and shipment, Hero abides ISO9001: 2000 international quality control process to make strict control and scientific management, and to achieve perfection. The products have passed the RoHS, CCC, CE and other international quality certification which ensure that each product are stable, reliable, environmental protective.

Excellent talent is the soul. Hero relies on the humanized management, promoting hero culture, exerting employees to have masters spirit. It has established a systematized, specialized production procedure. And it has built a strategic alliance with LED raw materials suppliers and vendors which has realized the resource sharing, division, cooperation, mutual complementarities and high-efficient operation for providing an effective guarantee to Hero' S scale production and diamond quality.

To select Hero, you will win the promise of a hero!
