Home LED Light Products Professional Design 50W Solar LED Street Light

Professional Design 50W Solar LED Street Light

Professional Design 50W Solar LED Street Light
Price: US $ 760.00-780.00/Set
Trade Terms: FOB,CFR,CIF
Min Order: 50/Set
Pay Type: L/C,T/T,Paypal,Money Gram,Western Union

50W LED Solar Power Street Light with SONCAP Certificated
Model (6-8-10M-N6)

1 Pole Height: 8M, Thickness: 3.50mm, resistant to wind: 150KM/H
2 Applicable light source: 50W LED, 5400LM,
3 PV Module: High efficient 100W*2PC
4 Gelled battery: 120Ah*2PC.
5.Battery Box, Engineer Steel, Hang on the pole.
6. Controller: 15A/24V Automatic control by microcomputer
7. Lighting hours: 11-12 Hrs/Day*3-4 days (Intelligent Controlled)

Getting more information on this 50W LED Solar Road Lights, mail or call us please.


LED Lamp Types:

Our Service:
1.More Than 10 Years Producing And Exporting Experience.
2.Many Kinds of LED Solutions for longer lifespan and all kinds of lighting effect.
3.Our Sales Team Work Efficiency, and every design will based on your installed condition.

4.Our Solar Street Lights Have Successfully Been Applied In More Than 50 Countries
5.Except Video Installation Instruction, we can send our engineer to spot guidance, or teach yourengineer in our factory.

Applications

Solar Street Light;             Solar Road Light;
Solar Path Light;               Solar Parking Lot Light;
Solar Driving way Light;
Solar Highway Light;
Solar Freeway Light;         Solar Avenue Light;
Solar Sidewalk Light;         Solar Remote Area Light;
Solar Military Bases Light;  S
olar Security Light

Solar Garden Light              Solar Park Light
Solar Gate Light                  Solar Grave Light
Solar Entrance Light            Solar Fence Light
Solar Campus Light


Certificates:

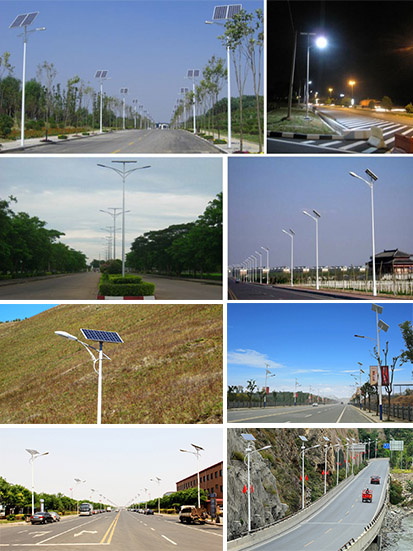

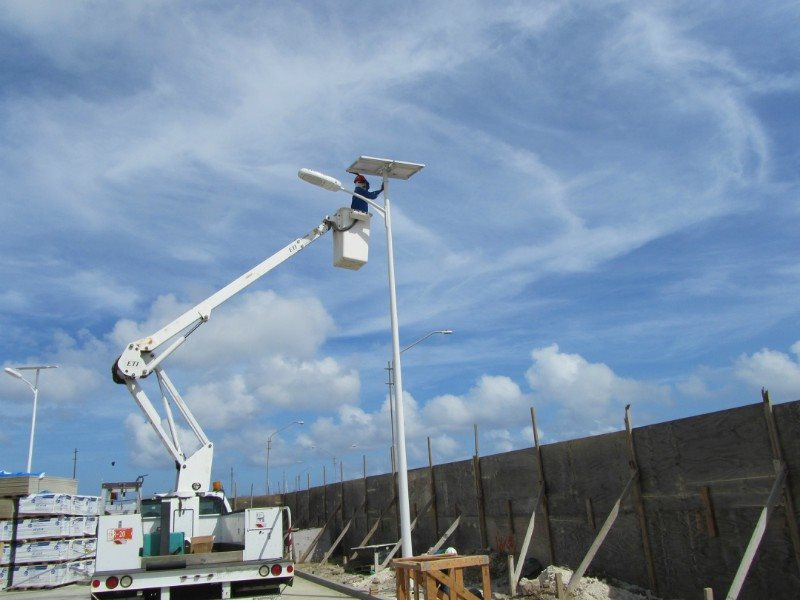

Partly Projects Photos:



Detailed Specification for each Parts
LED: 50W

Lamp Body: High-Pressure Die-Casting Aluminum. Corrosion Resistant

LED Power-------------------------50W
LED Lighting Efficiency----------6000LM
Body Size----------------------------540*296*60mm
Lamp Efficiency--------------------->92%
Central Illuminance--------------->30LX
CT--------------------------------------5000-7000 (White)
Ra-------------------------------------->75%
Power Factor------------------------>0.95
IP----------------------------------------65
Working Temperature----------- -40°C---+60°C
Lifespan----------------------------->50000 Hours
G.Weight-----------------------------5.5KG

Solar Gelled Battery

120Ah


Nominal Voltage------------------12V
Number of cell ----------------------6
Design Life --------------------------5-8 years
10 hour rate(12.0A,10.5V) -----------120Ah
Fully Charged battery 77°F(25°C)----4mΩ
Discharge ---------------------------------20~60°C
Charge ------------------------------------ -10~60°C
Storage ------------------------------------ -20~60°C
Size:---------------------------------------- 406*172*210mm
Weight: -------------------------------------32.5Kgs.

Solar Panel: 100W

Adding Aluminum Frame, Tempered Glass.
A-class.
Silicon Type---------------------------------Poly
Size-------------------------------------------990*704*35mm
Cells-----------------------------------------60
N Weight------------------------------------8.5KG
Vmp-------------------------------------------17.2V
Imp--------------------------------------------5.81A
Voc----------------------------------------------21.6V
Isc-----------------------------------------------4.63A
Efficiency: ---------------------------------------≥15.5%
FF(%)----------------------------------------------70-72%
Operating temperature--------------------40°C to +80°C
 GI Pole System
8Metre
Pole Height-----------------------------------8M
Material----------------------------------------Q235,
Top Diameter----------------------------------80mm
Bottom Diameter-------------------------------185mm
Pole Thickness---------------------------------3.5mm
Painting:--------------------------------------Wanted Colour
8M Height Pole,Steel, Q235,
Hot-Dip Galvanized. Plastic Coated, Rust Proof,
With Arm, Bracket, Flange, Fittings, Cable, Etc
Resistant to Wind: ≥150KM/H
  Solar Controller
15A/24V Controller
Intelligent Micro-computer Controller
Automatic Light Control and Time Control System
IP Level ---------------------------------------IP68
Size---------------------------------------------81*60*22mm
N. Weight--------------------------------------0.16KG
Working Temperature:-20°C to  60°C
Over-charging/discharging Protection
Reverse-connection Protection
Switch on Automatically with Light Sensor;
Switch off after 11-12 Hrs later.
Battery Box


Material: Engineer Steel, Hang on the pole.
Cable, and FittingsCables From controller to Lamp to
Solar panel, solar batteries, controller.
Armoured cable, include eather-protective cable glands

Prod Model: BR-50
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Western Europe
Designing Points: with Battery Hang on The Pole
IP Level: IP68, Against Big Rain or Flood
Light Source: LED Lamp
Lamp Body Material: Aluminum Alloy
Light Type: Solar
Color Temperature: Cool White
Technics: Electroplating
Illumination Time: 6h
Charging Time (',H): 6
Usage: Street
IP Rating: IP65
Certification: Soncap
With Light Source: With Light Source
Power: 50W
Cell Type: Gelled or Lead-Acid
Voltage: 24V
Yangzhou Bright Solar Solutions Co., Ltd., Established in 1997, an ISO 9001: 2000, TUV, IEC, CE&EN, RoHS, SONCAP, CCPIT, SASO and CCC approved manufacturer.

Overseas Exploration and Popularity:

We had successfully sold our solar street lights and solar panels to overseas markets more than 50 Countries such as the USA, Canada, UK, Greece, France, Italy, Australia, Turkey, Jordan, Saudi Arabia, Iraq, UAE, India, Philippines, Pakistan, Cambodia, Taiwan, Nigeria, Ghana, Congo, South Africa, Mexico, Haiti, etc.

For the Future:

With advanced manufacturing & testing equipments, our factories are growing better and better. We hope to cooperate with more partners and distributors to develop more business to create prosperous win-win partnerships. OEM is available. Welcome your inquiry mail or call.

Main Products:

Solar Street Lights & Solar Street Lighting & LED Solar Street Lighting;

Solar Garden Lights & Solar Landscape Lights;

Solar Panel & Solar Modules.

Small Solar Home System & Solar Home Kits.

Attention: We are good at

1: Designing, producing, installing solar 10W-120W Solar LED street lights

2: Designing, producing 10W-240W LED Lamp for outdoor street and road using.

3: Producing solar panel below 310W

4. Solar Battery 7Ah-300Ah/12V

5. Solar Home Kits 3W-5000W System

OEM Service for solar lighting and PV panel is available.

Welcome your inquiry of solar outdoor lights and solar home lights.
