Product features:
1) Ultra-high- definition display, high-precision seamless
2) The new structure designed to meet the lifting, stacking requirement,
to meet the requirements for indoor and outdoor
3)Ultra-high refresh rate, support the camera recordor , to ensure a
clear picture quality
4) Quick editing of assembly, disassembly system, saving unloading time
Product Description

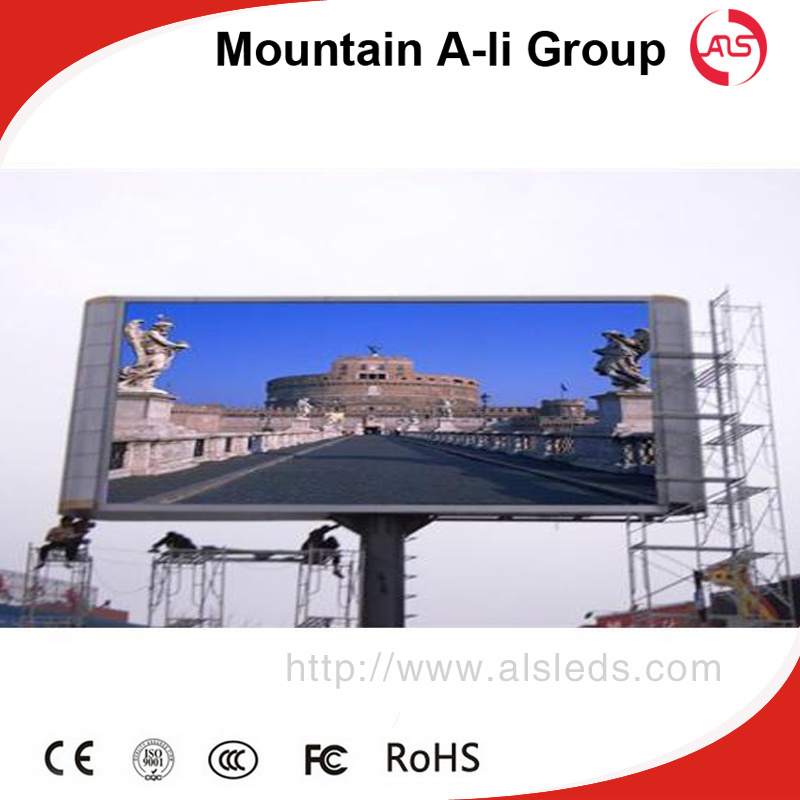

P10 Outdoor Full Color Module Technical Parameters
Item | Parameter |
| Model | P10 full color LED module |
| Module size | 160mm * 160mm |
| Pixel pitch | 10mm |
| Pixel density | 10000dots/m² |
| Pixel configuration | 1R1G1B |
| Module resolution | 16dots(W) * 16dots(H) |
| Max power consumption | 20W |
| Module thickness | 25mm |
| Module weight | 0.5KG |
| Driving method | Constant current driving |
| Scan method | 1/4 scan |
| Interface way | HUB75 |
| Brightness | ≥7500cd/m² |
| Cabinet size | 960mm * 960mm |
| Quantity of module | 36pcs |
| Power supply mode | 5V/40A 5V/60A |
| Cabinet resolution | 96*96dots |
| Optimal viewing distance | 10M - 50M |
| Optimal viewing angle | 160º(W) 120º(H) |
| Environment temperature | -20º ~ +50º |
| Relative humidity | 10% - 95% |
| Operating voltage | AC220V ± 10% |
| Average power | 350W/H |
| Max power consumption | ≤700W/m² |
| Current | ≤20MA(single LED) |
| Control mode | Synchronization with PC |
| Driving device | IC constant current driving |
| Refresh rate | ≥600HZ |
| Gray/Color | RGB each 256 grade,can display 16.7M color |
| MTBF | ≥9000hours |
| Power switch | Automatic switch |
Application:
1) Large hall, sports arena, banking, telecommunications,
2) Government agencies, terminal, pier, railway stations,
3) The stock market and othertrading marketm medical systems,
4) Electric power,galleries, and other publicity, adverting,
information dissemination, the guide places, and so on.
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
