Features:
1. Cold light, high efficiency, it is 70% energy less than incandescent lamp and fluorescent lamp;
2. More than 50, 000h life long, reduce the fees of changing light and repair;
3. Use high quality LED chip, precise LED package, high Color rendering index and suitable to high requirement of lighting;
4. Use high quality optoelectronical PC cover, light concentration, high center illuminanc and can meet the certain requirement of lighting;
5. Use high capability costant current driver power source, can protect short circuit, broken circuit, over temperature; Long life, high stability;
6. Green and evironmental protection, no Hg, mercury or other harmful element, no infrared ray or ultraviolet ray, no stroboflash; Can make sure that it is suitable and safe to use;
Applications:
Replacement for conventional fluorescent tubes in
1. Hotels
2. Conference / Meeting rooms
3. Factories & Offices
4. Commercial Complexes
5. Residential / Institution Buildings
6. Schools, Colleges & Universities
7. Hospitals
|

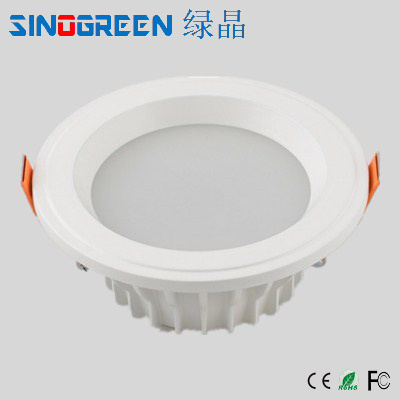

High quality LED Down Light series |
|
Product No. |
LJ-TD021A-4F-9W |
LJ-TD021A-4F-12W |
LJ-TD021A-6F-18W |
LJ-TD021A-6F-20W |
LJ-TD021A-8F-24W |
LJ-TD021A-8F-28W |
|
Diameter A |
φ145*63mm |
φ145*63mm |
φ196*63mm |
φ196*63mm |
φ242*63mm |
φ242*63mm |
|
Hole Size |
φ125mm |
φ125mm |
φ170mm |
φ170mm |
φ210mm |
φ210mm |
|
Output Power |
9W |
12W |
18W |
20W |
24W |
28W |
|
Input Voltage |
AC100V-AC240V |
|
Working Frequency |
50-60Hz |
|
Power Factor |
≥0.9 |
|
Ra |
≥80(3000K),≥75(6000K) |
|
Material |
AL+PC |
|
Working Temperature |
-20 Degrees Centigrade-+50 Degrees Centigrade |
|
Lamp Temperature |
≤50 Degrees Centigrade |
|
LED Color Temperature |
2700-3500K(Warm White), 4000-5000(Natural white), 5500-6500K(Pure White) |
|
LED Luminous Flux |
810lm |
1080lm |
1620lm |
1800lm |
2160lm |
2520lm |
|
Inner box(cm) |
15*15* 11.5cm |
15*15* 11.5cm |
20.5*20.5* 11.5cm |
20.5*20.5* 11.5cm |
25*25* 7.5cm |
25*25* 7.5cm |
|
Outer box(cm) |
32*32*60cm |
32*32*60cm |
43*23*60cm |
43*23*60cm |
52*27*40cm |
52*27*40cm |
|
Weight/Ctn (kg) |
10KG |
10KG |
13KG |
13KG |
12KG |
12KG |
|
Qty/Ctn (pcs) |
20 |
20 |
10 |
10 |
10 |
10 |
|
Certification |
CE/FCC/RoHS |
Hangzhou Sinogreen Optoelectronics Co., Ltd.Is located in Hangzhou, the beautiful West Lake, which is a research and development production and sales-oriented manufacturing enterprise.Specializing in industrial lighting, commercial lighting, environmental LED lighting design, the company has passed ISO9001:2000 quality management system certification.
The company has an independent R & D centers and R & D team, and is equipped with advanced testing equipments and production equipments.Besides company's own R & D team, the company has established a long-term and friendly strategic partnership and production base with China Tsinghua University, Peking University, Zhejiang University, and China Jiliang University, which has laid a solid foundation for company's products development and technoligical upgrading.
In the application areas, the company has developed LED street lighting, LED commercial lighting, LED lighting, LED moving lighting, wind and solar LED street lighting and other LED products, and has independent intellectual property rights in many fields.So far, the company's products have got 3C, CE, RoHS, UL, FCC, SASO and other related certification.
Our products sell well at home and abroad, and customers are from in nearly 50 countries on five continents and regions.The company has agencies in each provinces and branch companies more than ten provinces, with improved marketing channels and service network.
Leading technology, excellent products, solid quality, and integrity service is our requirements and responsibilities for each product.We will try our best to make contribution to the human's promotion of new energy and energy conservation.
