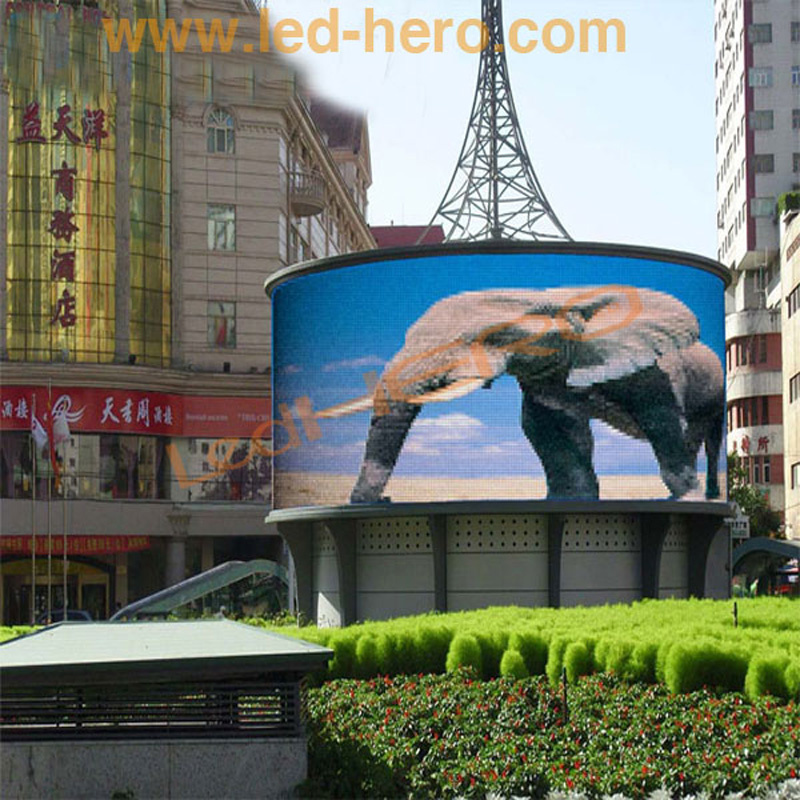

pop item of p10 outdoor full color led curved display
1. large viewing angle
2. Light weight
3, CE & ROHS Certificates
4.show vivid picture
Specification
pop item of p10 outdoor full color led curved display
Part Number
HERO-IDS4F-8S
Resolution
64(H)×32(V)
Pixel Pitch
4mm
LED Configuration
1R1G1B 3-IN-1 SMD
Pixel Density
62,500 pixels/sq.m
Module Size
256*128mm
Driving IC
MBI5024
Driving Method
1/8 Scan, Constant Current
Cabinet Weight
42kg/sq.m
Mechanical Ratings
Hanging Weight Support
2T
Surface Flatness
Gap<0.5mm
Optical Ratings
Brightness
>2,600cd/ sq.m
View Angle
150°/150°
Gray Scale
8bits input, correction with 14bits
Display COLOR
16.7M
Brightness Adjustment
0~100%
Power Supply
Operation Power
90~260V 50~60Hz
Max. Power Consumption
850W/sq.m
Average Power Consumption
280W/ sq.m
Control System
Control Mode
Synchronous display with control PC by DVI
Frame Update Frequency
60~85Hz
Screen Refresh Frequency
300~1000Hz
Gamma Correction
-5.0~+5.0
Support Input
Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
Control Distance
Ethernet cable<120m or Fiber Optic<10Km
Support VGA Mode
1024×768, 1280×1024, 1600×1200, 1920×1280
Brightness Correction
Pixel, Module, Cabinet
Environmental
Operating Temperature
-20°~+60°
Operating Humidity
10~95% RH
Operating Life
100,000hours
MTBF
5000hours
Out of Control Rate
<0.02%
Warranty
1. If the area is larger, we usually require customers or dealers to send someone to come to factory to study, training time a week, the main study screen operation, maintenance. Company training and providing accommodation are free of charge.
2. If the area is in more than 20 square meters of outdoor full color, it must have all accessories.
3. Response within 2 hours, non-artificial, general fault solution within 24 hours, and acceptable failure resolved within 48 hours.
Official website: http://www.led-hero.com
Shenzhen LED-HERO Electronic Telechnology Co., Ltd was found in early 2007. Hero committed to the next generation of LED optoelectronic products development, production, sales and service. It is leading the trend of LED industry and providing a full range of solutions to its customers. It has become a modern, large scale, professional LED Photoelectric comprehensive product integration supplier. The products sell well in over 50 countries and regions in Europe, America and Middle East, besides more than 20 provinces across China.
"Hero' S products and solutions include various of indoor and outdoor LED display screen and lighting products with its advanced technology, superior technology design, personalized design elements, large-scale production capacity and diversified cooperation strategy to provide full LED integrated solutions.
"Beat by wisdom, win in morals"is still our insistent faith, Quality is the life of a company. From material purchasing to product researching, development, production, testing, packaging and shipment, Hero abides ISO9001: 2000 international quality control process to make strict control and scientific management, and to achieve perfection. The products have passed the RoHS, CCC, CE and other international quality certification which ensure that each product are stable, reliable, environmental protective.
Excellent talent is the soul. Hero relies on the humanized management, promoting hero culture, exerting employees to have masters spirit. It has established a systematized, specialized production procedure. And it has built a strategic alliance with LED raw materials suppliers and vendors which has realized the resource sharing, division, cooperation, mutual complementarities and high-efficient operation for providing an effective guarantee to Hero' S scale production and diamond quality.
To select Hero, you will win the promise of a hero!
