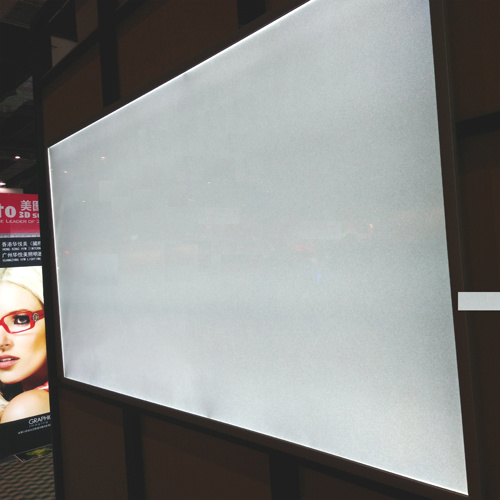

LGPS1 is scattering light guide plate (LGP) made of heat resistant optical polystyrene. It is directly applicable and free will processable light guide without demanding any surfacial treatment, such as engraving or screen printing. As a convenient and low cost solution, LGPS1 is widely applied in edge-lit LED light box and signage.
Technical and performance information
Raw material: Nanometer particle scattering light guiding polystyrene sheets from optical grade raw material.
Maxim lighting width: 1200mm
Advantages: No demanding of laser engraving or screen printing; freewill processing and convenient application; low cost solution for LED edge light panel and signage.
Original size: 1200X1800mm, 1200X2400mm, 1200X3050mm, 2050X3050mm.
Thickness tolerance: 0.05mm
Thickness and recommended lighting width
| Thickness (mm) | Lighting width (mm) |
| 2~3 | 0~900 |
| 4 | 800~1200 |
| 5 | 1000~1200 |
Application: Slim light box, LED light guide panel, edge light box and signage
