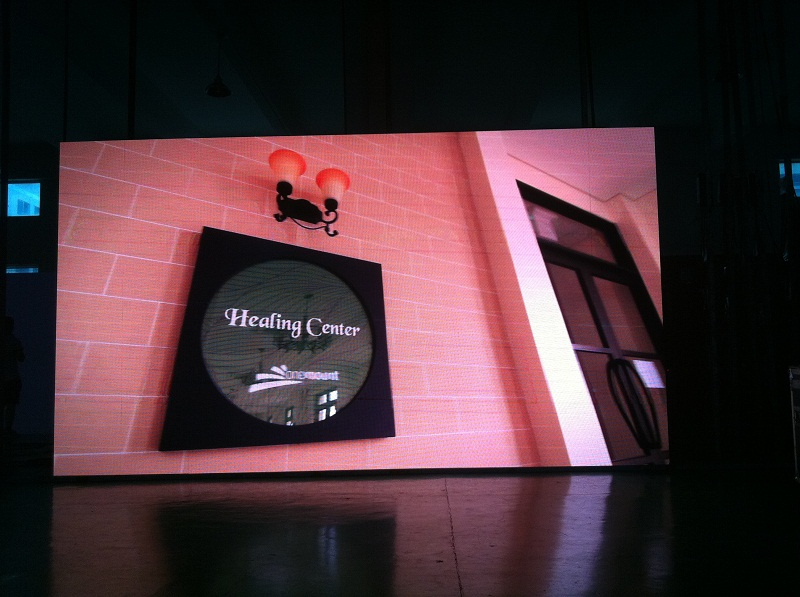

PH7.62 Indoor Rental LED Display with die-casting aluminium cabinet
Die-casting aluminum cabinet used
Light weight and slim depth
Fast and easy to install, setup and operation
Low power consumption
Seamless combination
Perfect performance and Beautiful colors
Indoor die casting aluminum rental led display screen is super thin (85mm) and super light (10kg/cabinet), it is very convenient for isntallation and transportation, it can be fast and easy assembled & dismantle by only 1 people.
Fast and Easy Installation
Die casting aluminum cabinet, light weight, slim depth, fast locks guarantee the fast and easy installation & dismantle.
Slim Depth
Depth of the cabinet is only 85mm, take small space, which is great convenient for rental and transportation.
Light Weight
Weight of each cabinet is only 10kg, only one people can easily install and move it. It saves man power.
Professional-grade Connectors
LEDA rental cabinets use professional grade connectors for fast installation, safe and stable connection.
High Refresh Rate
The refresh rate is more than 1000HZ, it is flicker-free when live broadcast. It fully meets the needs of professional camera shooting.
Independently Removable and Replaceable
You can change any parts freely without removal of other products, the failure can be super fast solved.
Wide Viewing Angle
Horizontal and vertical viewing angle is 140 degrees, pictures and videos of the display can be viewed by more viewers.
Brightness Adjustable
The brightness can be adjusted automatically, it saves power cost.
No Fan Design
No fan design guarantees silent operation.
Fast and Easy to Maintain
The power and signal working status were showed, convenient for you to check out problem at the first time.
Quality Guaranteed
The product is designed and produced in strict compliance with international standards, such as CE, ROHS.
| Model | P6 |
|---|
| Model No.: | LEDA-IR-P6 |
|---|
| Pixel Pitch | 7.62mm |
|---|
| LED Type | SMD3528 |
|---|
| Pixel Configuration | 1R1G1B |
|---|
| LED Driving Method | 1/8 scan |
|---|
| Module Pixel | 48*32 (W*H) |
|---|
| Module Size | 366*244MM |
|---|
| Cabinet Pixel | 96*96 (W*H) |
|---|
| Cabinet Size | 732*732*85mm (W*H) |
|---|
| Cabinet Weight | 10KG |
|---|
| Max. Power Consumption | ≤1000W/ |
|---|
| Ave. Power Consumption | ≤350W/ |
|---|
| Hor. Viewing Angle | 140° |
|---|
| Verti. Viewing Angle | 140° |
|---|
| Brightness | ≥2000 cd/ |
|---|
| Pixel Density | 17772/ |
|---|
| Protection Level | IP43(Front & Back) |
|---|
| Processing | 16 bit |
|---|
| Colors | 281 trillion |
|---|
| Refresh Rate | ≥1000HZ |
|---|
| Frame Rate | 60fps |
|---|
| Lifetime | 100,000 Hours |
|---|
| Power | AC220/110 ± 10%, 47~63Hz |
|---|
| Operating Temperature |
-20ºC to +60ºC |
|---|
Operating Humidity |
20% to 90% |
|---|
Brightness Level | Manual 100 levels,automatically 16 levels |
|---|
| Certifications | CCC, FCC, CE, ROHS, UL, ETL
|
|---|
