Home LED Light Products pH5 Indoor Rental Die-Casting Aluminum LED Display

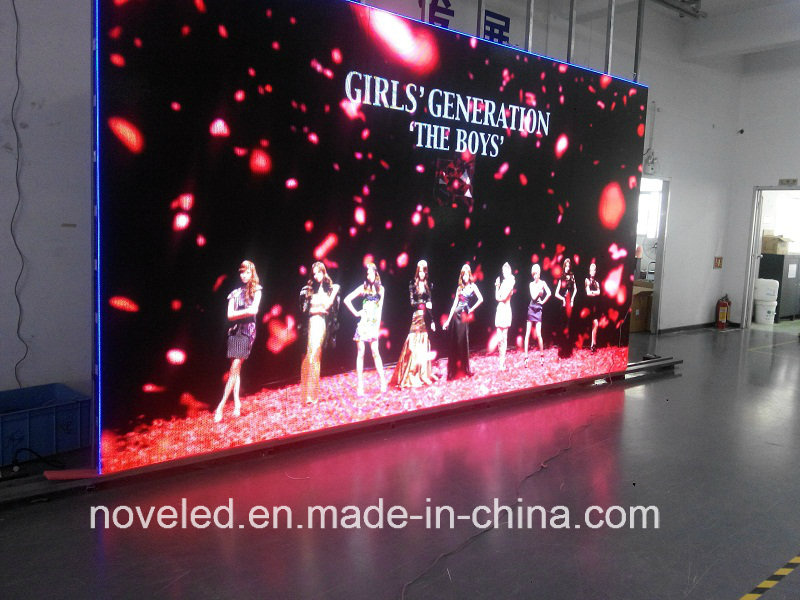

pH5 Indoor Rental Die-Casting Aluminum LED Display

pH5 Indoor Rental Die-Casting Aluminum LED Display
Price: US $ 1150/Square Meter
Trade Terms: FOB,EXW
Min Order: 1/Square Meter
Pay Type: T/T,Paypal,Western Union

With 40000dots per square meters of Indoor Full color LED Display panel PH5, of which the pixel size is 5mm. The grayscale of each is 16384, and 16,777,216 kinds of colors in total. Dynamic scanning technology is adopted to ensure the purity and stability of picture effects, the precision of display effect and variety of animation; cabinets are made of aluminum alloy, so it's much lighter and better heat dissipation system. On the other hand, LED panel can display text, pictures, animation as well as video.
Product Features

 Price Competitiveness: we have the most competitive price at the market; also have the same even better quality.

 Performance Competitiveness: Best Equality, high consistency, big viewing angle, can repair each led lamps.

 Quality Competitiveness: From material to finished product, from design to production, we control all steps and every detail, which are the guarantee of the quality and reliability.

 Service Competitiveness: Better service at same situation, better cooperation at same service.


LED Parameters

Item

Luminous Intensity

Viewing Angle(H/V)

Wavelength

Test Condition



Red LED

150-200mcd

120º/120º

620-630nm

25ºC,20mA

Green LED

260-330mcd

120º/120º

520-535nm

25ºC,20mA

Blue LED

55-65mcd

120º/120º

465-475nm

25ºC,20mA


Module Parameters

Pixel Pitch

5mm



Pixel Configuration

1R1G1B SMD 3in1

Module Resolution

64dots*32dots for real

Module Pixels

2048 dots

Module Size

320mm*160 mm

Module Weight

0.55KG


Cabinet Parameters

Cabinet Size(W*H*D)

640*640*80(mm)



Cabinet Resolution

128dot*128dot for real

Module Quantity

8pcs

Cabinet Pixels

16384 dots

Pixel Density

40000 dot/sqm

Avg. Power Consumption

250W/sqm

Max. Power Consumption

750W/sqm

Material

 Aluminum

Cabinet Weight


8KG for aluminum cabinet


Screen Parameters

Brightness

≥1800cd/sqm

Contrasts (Max. /Min.)

1.1:1

Driving Method

Static

View Angle

Horizontal 120° Vertical 120°

Optimal Viewing Distance

4m to 55m

Brightness Control

Red, Green and Blue 256 Grade/Each

Fresh Frequency

≥600Hz

Frame Frequency

50 - 60Hz

Input Voltage

AC220V/50Hz or AC110V/60Hz

Defects Rate

≤0.00001

Screen Weight

≤45kg/sqm for Iron cabinet /32kg/sqm for Aluminum cabinet

MTBF

>10,000 hours

Life Span

≥100,000 hours

Brightness Uniformity

<3%

Earth Leakage Current

<3mA

Protective Grade

IP45

Temperature-operating

-40ºC~60ºC

Humidity-operating

10%~90%

Operating System

Windows98/me/2000/NT/XP/win7

Prod Model: PH5 SMD3528 led display
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Module Size: 320mm*160mm
Module Resolution: 64DOT*32DOT
Pixel Configuration: 1r1g1b SMD 3in1
Module Pixels: 2048 Dots
Module Weight: 0.55kg
Cabinet Size(W*H*D): 640*640*90(Mm)
Cabinet Resolution: 128DOT*128DOT for Real
Module Quantity: 8PCS
Brightness: More Than 1800CD/Sqm
Warranty: 2 Years
Display Type: LED Video Display
Tube Chip Color: Full Color
Display Function: Video Display
Scanning Mode: 1/16 Scan
Certification: CCC
Pixel Configuration: 1R,1G,1B
Pixel Pitch: 5mm
Pixel Density: 40,000 dots / m²
Application: Shopping Guide
IP Rating: IP43
System Operating Platform: Windows98/Me/2000/Nt/XP/Win7
Shenzhen Noveled Technology Co., Ltd ( Noveled ) is a subsidiary of Noveled Group Co, Ltd...Noveled is a national level and high & new technology enterprise which specialize in designing, researching, manufacturing and selling all kinds of LED displays. & LED lighting...

With several years of development, NOVELED own its factory workshop area about 2, 000sqm, professional clean room, Siemens high-speed placement machine, automatic plug Universal, computer intelligence environmentally friendly lead large wave soldering, reflow (8 for 8 microcirculation heat treatment technology), Intelligent glue large stroke machine., monthly capacity is 1000sqm We are an ISO 9001: 2000 company, CE certified, export licence holders. We have the honor to work for hundereds of customers in over 400 cities of 33 provinces in China, and we also have built long-term business relationship with the customers all over the world, for example, PCS Sound in Austria, Screen world in Korea, Mega LED in Turkey, Internacionmidia in Brazil and so on.

NOVELED products widely used in outdoor advertising, cultural and recreational activity, stadium, stage background rental, With its full color LED displays advantages, from the design, productions, installation to the maintenance, Use of comprehensive integration solutions, effectively reduce the overall cost for customers, so as to create more value for customers.

We adhere to the "customer first, quality first, reputation first, " as operating principle. Our assurance is to provide our customers best products with high quality and most reasonable prices above your level of satisfaction.
