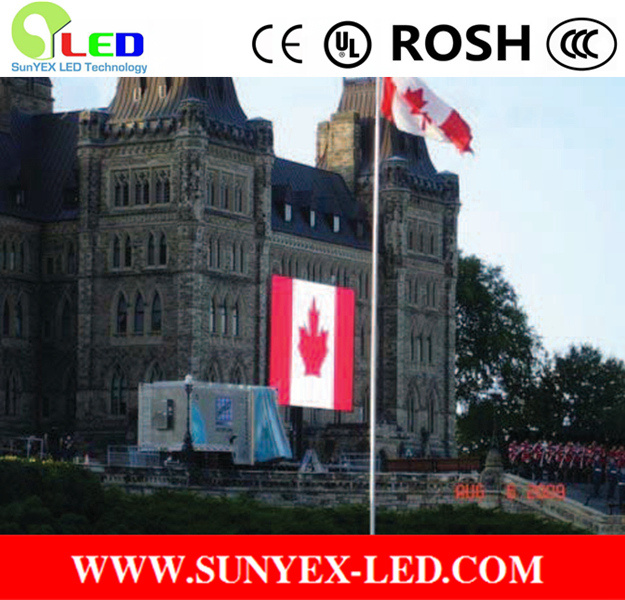

P8 Outdoor Full Color LED Display
| Price: |
US $ 1320/Square Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Square Meter |
| Pay Type: |
L/C,T/T |
P8 Outdoor Full Color LED Display
| LED |
| COLOR | WAVE LENGTH | BRIGHTNESS(mcd) | Viewing Angle H./V. |
| Red | 620 | 800 | 140°/140° |
| Green | 520 | 2100 | 140°/140° |
| Blue | 470 | 480 | 140°/140° |
| PIXEL |
| Pitch | 8 |
| Model | SY-OF8-3C |
| Configuration | 1R | 1G | 1B |
| MODULE |
| Specs | Width | Height | Total |
| Configuration | 32 | pixels | 16 | pixel | 512 | pixels |
| Size | 256 | mm | 128 | mm | 32,768 | mm² |
| CABINET |
| Configuration | 96 | pixel | 96 | pixel | 9,216 | pixels |
| Size | 768 | mm | 768 | mm | 589,824 | mm² |
| Weight(KG) | 35 |
| Consumption(max)(W/M²) | 800 |
| SCREEN |
| Brightness | >6000 nits |
| Color Depth | 12 Bit |
| Brightness Control | By software |
| Colors | 16.7 million |
| Viewing Distance | >10m |
| Gray Scale Rectificaiton | 4096 grade |
| Power Supplier | 220V/40MA |
| Drive Mode | 1/4 scan |
| Refresh Rate | 2000 HZ |
| Control Mode | Synchronization control |
| Lifetime | 100,000 Hours |
| Running Temperature | -25ºC ~ +50ºC |
| Humidity | 10% ~90% |
| Singal Available | DVI,S-VIDEO, RGB, VGA and ETC. |
| Running Files | Text, Animation, Picture, Video and etc |
| Water Proof | IP65 |
| Warranty | 3 Years |
1 Pice Term EXW
2 Payment Term T/T: 30% Down Payment before Production, the Balance before Shipment.
3 Software English
4 User Manual English
5 Installation Instruction Available
6 On-Site Asistant Two Engineers Available
7 Training Available either on-site or at SunYEX Factory
8 Warranty Three Years In-house Factory Repair/Replacement
9 Mean Time 20 Working Days Since Down Payment
10 Quote Validity 30 Days
| Prod Model: |
SY-IF8-3C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Refresh Rate: |
2000 Hz |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Average Power Consumption: |
600W / m² |
| Scanning Mode: |
1/4 Scan |
| Display Type: |
LED Video Display |
| Certification: |
ETL |
| Pixel Pitch: |
8mm |
| Pixel Density: |
15625/Sqm |
SunYEX is a high-tech enterprise specializing in professional R & D, production and selling of LED screens. Our main products include LED display, and other LED lighting fixture. During SunYEX's these years' high speed developing, SunYEX has been working on building a friendly and win-win relationship with partners. We have a wide range of international strategic partners, sharing the benefits brought by international cooperation and division of labor. The international strategy enhances our technology and management level, promotes international quality standard certification and improves its competitiveness in the industry. Additionally, our international strategic alliance speeds up our process of establishing global service system and sales network and our international market further supports our expansion of domestic system and the strategic framework of the whole market. Nowadays, SunYEX brand is more and more recognized and praised by the industry and a wide range of users, which is derived from our efficient work, quality awareness, service awareness and customer awareness formed over years.
With our company's technology level, we have established strong and steady partnership with the world's toppest organisations such as PHILIPS, Toshiba and Siemens in developing product and operating control systems which we are proud of our quality.
SunYEX owns the most advanced LED assembly machinery and a Category 100, 000 dust-free workshop and powerful anti-static system, managed by a highly professional team which is well-known in the LED display industry, adding R&D administration, manufacture and extensive testing area, we believe we are now in a position to offer the world the best reliable product and COMPETITIVE COST for customers in the worldwide markets.
Our main products of SunYEX includes: LED Full Color Display, LED Single/Bi-Color Display, LED Traffic Light, LED Pharmacy Cross Display, LED Digital Tube, LED Solar Light, LED linear strips, LED modules, LED wall washers, LED fluorescent light, LED lighting fixtures, LED neon flex, LED components, LED accessories and so on, all of which are widely used in urban lighting decoration, advertising light boxes backlight, indoor home decoration, stage lighting, project, lights and cars, etc.
SunYEX has a well-trained team including full experienced technicians and salesman; "product quality and customer satisfaction" is our main aim. More and more people continue choosing SunYEX for our excellent quality and unique well service, currently, 95% of our products have been sold in Europe and many other foreign markets.
Our target: To become a worldwide leading LED products provider within 5 years!
