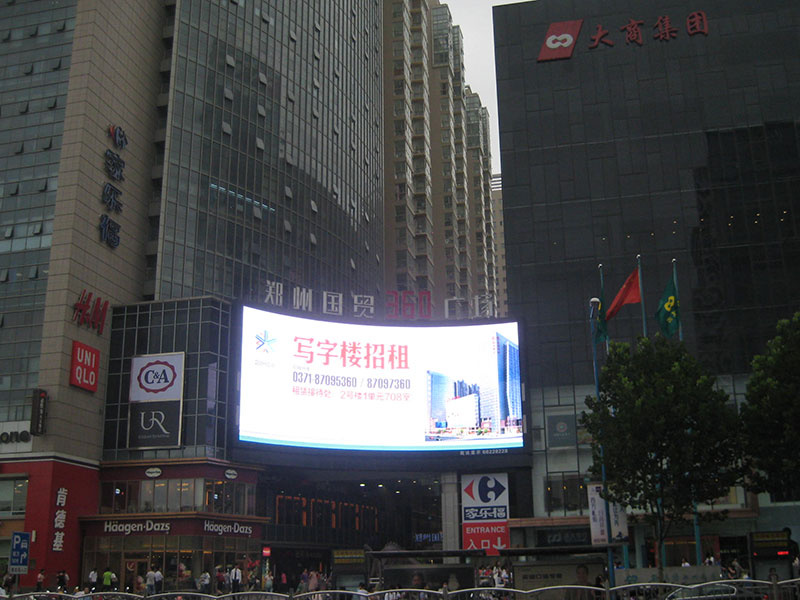

P8 Outdoor Full Color Large Advertising LED Display(Super Market)
Key Benefits
1. Broad viewing angle;
2. Frame-free installation;
3. Front and rear side maintenance.
4. High brightness, visible even with direct sunshine;
5. High waterproof and dustproof, IP65 both front and rear side
6. Having good lightening accordance and no mosaic;
7. Having large viewing angle: Getting vivid effect within any position of the viewing range;
8. Any LED in died pixel can be respectively repaired, which reduce the cost of the display maintenance.
LED DISPLAY, LED STADIUM SCREEN, LED OUTDOOR SCREEN, OUTDOOR BILLBOARD
|
Model |
PH8 |
|
Pixel Pitch |
8mm |
|
Unit Size |
1024mm x 768mm |
|
LED Type |
1R1G1B |
|
Pixel / Unit |
128x96 |
|
Unit Weight |
52kg(steel) or 36kg(Aluminum) |
|
Viewing Angle |
H140° V70° |
|
Application |
Storage-40~60° C, Working-20~50° C |
|
Protection Level |
IP65 |
|
Power Consumption |
620W/panel Max |
|
|
250W/Panel Ave. |
|
Driving |
1/4 |
|
Frame Refresh |
≥60Hz |
|
Data Refresh Rate |
1200~4000Hz |
|
Processing |
16bit |
|
Max Brightness |
5,500-6500nits |
|
Power Supply |
AC90-240V, 50~60Hz |
|
MTBF |
≥1000 Hours |
|
Life Span |
≥50000 Hours |
|
Pixel Failure |
< 0.0003 |

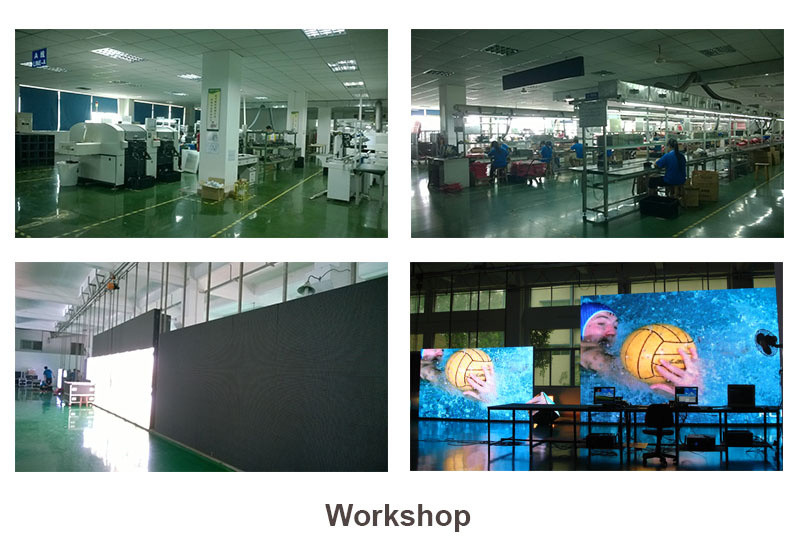

We are a full range manufacturer and LED display solution provider and its ancillary systems worldwide since 2009, headquartered in Shenzhen with a 6000 square meter Production state of the art facilities to cover international demands. We provide a one-stop shopping in the design, production, and distribution of LED display and solution for our domestic and global clients.
Our products Cover indoor, outdoor, fixed, rental and creative LED Solutions for various applications including sport, advertisement, concert, shopping mall, stadium, exhibition or any other indoor and outdoor events that comes to your imagination.
We strictly follow ISO9001: 2008 quality management system and passed CE, FCC, UL, RoHS, CCC etc. All of these factors ensure high quality LED products and effective services.
