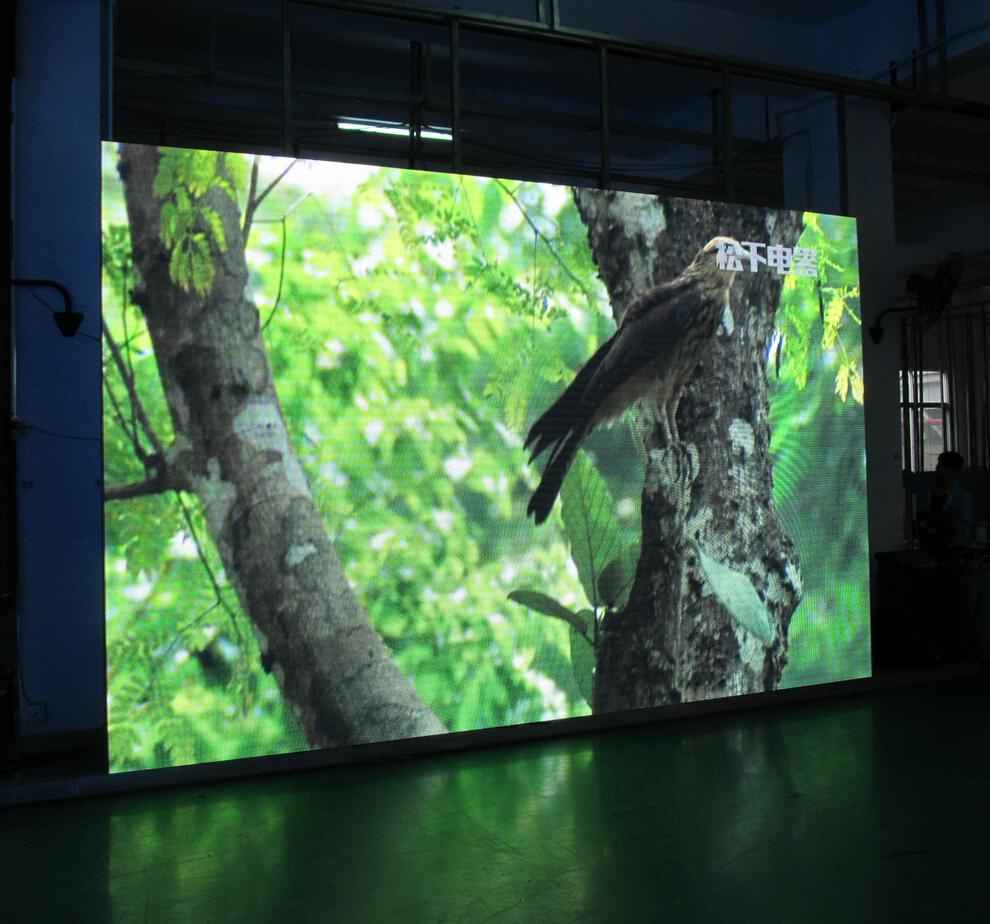

P7.62 Indoor LED wall using the super thin, super light LED cabinet and power supply; Nice cabinet design, very portable. It's very popular for stage, TV, show It never occupy unnecessary room and never puts unnecessary weight to the mounting structures.
Cheap price but can show very clear video, images too, can work as main screen too.
Features:
1. Slim aluminum cabinet, 12KG each cabinet of 732*732mm
2. High refresh rate, over 1500 HZ/s, good for show on TV, no scaning line when photographed.
3. Slim body & light weight, with fast locks on all sides, easy and fast to install and disantle.
4. High uniformity, stability & reliability
5. Quiet, no separated fan installed, can meet requirements of meeting room or office installation place.
6. Fast heating spread as the material of cabinet is alminum
7. Large viewing angle, Up to 140° /120° (Horizontal & Vertical)
8. Show all kinds of word, text, graph, pictures, flashes, video, Different signal resources inputs such as TV, HCTV, S-video, NTSC/PAL, DVI, AVI, VGA, SDI, MOV, MPG, etc.
THIS IS SURELY OUR COMPETITIVE PRODUCT, the most popular for stages.please contact for an offer now,you won't be disappointed.
| Technical Prameters |
| PROJECT | P7.62 indoor LED Wall |
| Pixel pitch | 7.62mm |
| Pixel density | 17222Pixels/sqm |
| Module size(W*H) | 244 W(mm) | 244 H(mm) |
| Module pixels(W*H) | 32Pixels(W) | 32Pixels(H) |
| Pixel configuration | 1Red 1Green 1Blue |
| Drive mode | constant current driving 1/8 scan |
| LED lamp type | SMD3528 |
| Cabinet size(W*H*D) | 732 W(mm) | 732 H(mm) |
| Cabinet resolution | 96Pixels(W) | 96Pixels(H) |
| Color scale | 65,536 degree |
| View angle(H/V) | 140/120 degree |
| Brightness (White balance) | ≥2500cd/sqm. |
| Power consumption(one cabinet) | Max:650W/sqm. Average:200W/sqm. |
| Operating Voltage | AC100V±10% or 220V ±10%; 50---60HZ |
| Net weight | 12Kg/Cabinet |
| Operating temperature | -20°C----+50°C (Customized power supply:-45°C---+60°C) |
| Operating humidity | 10%_95%RH |
| Life time | ≥100,000hours |
| MTBF | 5,000 hours |
| Whole Display Flatness | ≤0.1mm Juncture |
| Frame frequency | >60 Hz/s |
| Refresh rate | ≥2000Hz /s |
| Control distance | 100m (without repeater), single mode fiber:20km, multi mode fiber: 500m |
| Power | 110V/220V±15% 50--60Hz |
| LED control system | LINSN,Dbstar,Nova-star,ZDEC,Colorlight is selectable |
| Operating system | Windows 2000 / Windows Xp / Windows 7 |
| Protections for outdoor display | IP31 |
| Maintenance way | Rear Access or Front Access |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI |
ENBON optoelectronics Limited is a High-tech enterprise specialized in R&D, manufacturing and sales of outdoor & indoor LED display. It was established in Jan 15, 2010 covering an area of 1 building with around 150 employees. By bringing in and gathering many experts from this industry, we can keep pace with the development of new technology and are able to provide creative products to meet different requests of our clients'. Right now, Enbon wins good reputation for its various ultra-thin and super-light rental outdoor and indoor LED screens, LED strip/mesh curtains, LED dance floor etc.
All our products have passed CE, FCC and RoHS certificates. 70% of our products are for export. We are an LED company you can count on for good quality and competitive pricing. Besides, you can also expect excellent pre-sale, selling and after-sale services here, which contains professional consultation, free training, free drawings, installation and 2 years warranty. We will inspect our products installed in domestic market periodically.
Enbon is equiped with advanced machines such as Automated Pick & Place machine, High Speed SMT, Wave Peak Soldering machine, Reflow Soldering Machine, High & low Temperature Aging room, Vibration tester, Waterproof tester, Anti-static & dust-free workshop etc. Modern automatic equipment together with our innovative engineers, dedicated workers and experienced sales and services team, we're the right supplier you can trust for good solutions for all your LED display projects.
Contact us for an offer today! Our team will respond in 1 working day. We look forward to be your good partner and grow together!
